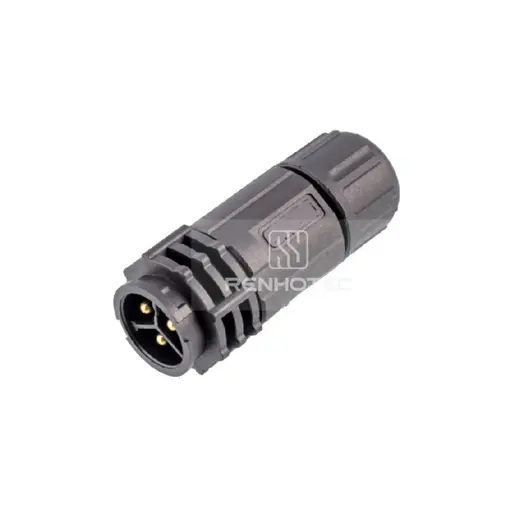

E13 Straight Male Field Installable Mating Bayonet Plug, 13/16"-28UNS IP67/IP68 Waterproof Connector

E13 Straight Male Field Installable Mating Bayonet Plug, 13/16″-28UNS IP67/IP68 Waterproof Connector

Артикул: R13020-02 0 0 00000 Категории: ,

Get a Quote

  • Up to 18 pins for complex multi-signal and power wiring
  • Data-ready platform: RJ45, USB, HDMI and fiber versions
  • IP67 / IP68 sealed per IEC 60529 for outdoor and washdown use
  • Rated up to 20A for power and signal running in one link
  • PA66 nylon + glass fibre housing, UL94 V-0 flame retardant
  • Works from -25 °C to 105 °C across wet, dusty and oily sites

Our E-Series (E7 / E10 / E13) plastic waterproof connectors are built on American standard threads, offering 2 to 18 cores with both bayonet and threaded coupling options. The entire series features IP67/IP68 protection, wide operating temperature ranges, and compact designs, delivering integrated connection solutions – from signal transmission to power supply – for industrial automation, communication equipment, and sensor applications.

Pin Arrangement

Coupling Type

Screw Thread

  • Secure and stable connection
  • Excellent vibration resistance
  • Ideal for long-term installations

Bayonet Lock

  • Quick and easy locking
  • Tool-free installation
  • Ideal for frequent mating and unmating

Product Application

Built for outdoor and wet-environment equipment: LED display cabinets, architectural and street lighting, outdoor telecom and CCTV enclosures, industrial control cabinets, solar and energy storage systems, marine electronics, and washdown equipment in food processing.

E-series connectors are specified where multi-pin power and signal have to run through one sealed connection, and where corrosion resistance, insulation and unit cost matter more than impact strength. For high-impact sites, sustained temperatures above 100 °C, or EMI-shielded links, choose a metal-shell connector instead.

Product Type

Series

E13
Shell Material

Thermoplastic plastic PA66
Series

E13

 Shell Material

Thermoplastic plastic PA66

Installation Type

Cable Mount
Assembly Method

Bayonet Lock
Pins

10 Pin, 12 Pin, 14 Pin, 18 Pin, 2 Pin, 2B, 3 Pin, 3B, 4 Pin, 4B, 5 Pin, 6 Pin, 7 Pin, 8 Pin, 8C, 9 Pin
Applicable Temperature

-45℃ ~ +105℃
Installation Type

Cable Mount

 Assembly Method

Bayonet Lock
Pins

10 Pin, 12 Pin, 14 Pin, 18 Pin, 2 Pin, 2B, 3 Pin, 3B, 4 Pin, 4B, 5 Pin, 6 Pin, 7 Pin, 8 Pin, 8C, 9 Pin

 Applicable Temperature

-45℃ ~ +105℃

Electrical Characteristics

Contact Resistance

≤5mΩ
Insulation Resistance

≥2000MΩ
Rated Voltage

2B/3B/4B: 300V 2/3/4/5/6P: 125V 8C: 125V+30V 7/8/9/10/12/14P: 60V 18P: 30V
Rated Current

2B/3B/4B/2/3P: 20A 4/5/6P: 10A 8C: 15+2A 7/8/9/10/12/14P: 5A 18P: 2A
Contact Resistance

≤5mΩ

 Insulation Resistance

≥2000MΩ
Rated Voltage

2B/3B/4B: 300V 2/3/4/5/6P: 125V 8C: 125V+30V 7/8/9/10/12/14P: 60V 18P: 30V

 Rated Current

2B/3B/4B/2/3P: 20A 4/5/6P: 10A 8C: 15+2A 7/8/9/10/12/14P: 5A 18P: 2A

Environmental Characteristics

Protection Grade

IP67/IP68
Protection Grade

IP67/IP68
Series

E13
Installation Type

Cable Mount
Assembly Method

Bayonet Lock
Pins

10 Pin, 12 Pin, 14 Pin, 18 Pin, 2 Pin, 2B, 3 Pin, 3B, 4 Pin, 4B, 5 Pin, 6 Pin, 7 Pin, 8 Pin, 8C, 9 Pin
Contact Resistance

≤5mΩ
Insulation Resistance

≥2000MΩ
Rated Voltage

2B/3B/4B: 300V 2/3/4/5/6P: 125V 8C: 125V+30V 7/8/9/10/12/14P: 60V 18P: 30V
Rated Current

2B/3B/4B/2/3P: 20A 4/5/6P: 10A 8C: 15+2A 7/8/9/10/12/14P: 5A 18P: 2A
Protection Grade

IP67/IP68
Shell Material

Thermoplastic plastic PA66
Applicable Temperature

-45℃ ~ +105℃
