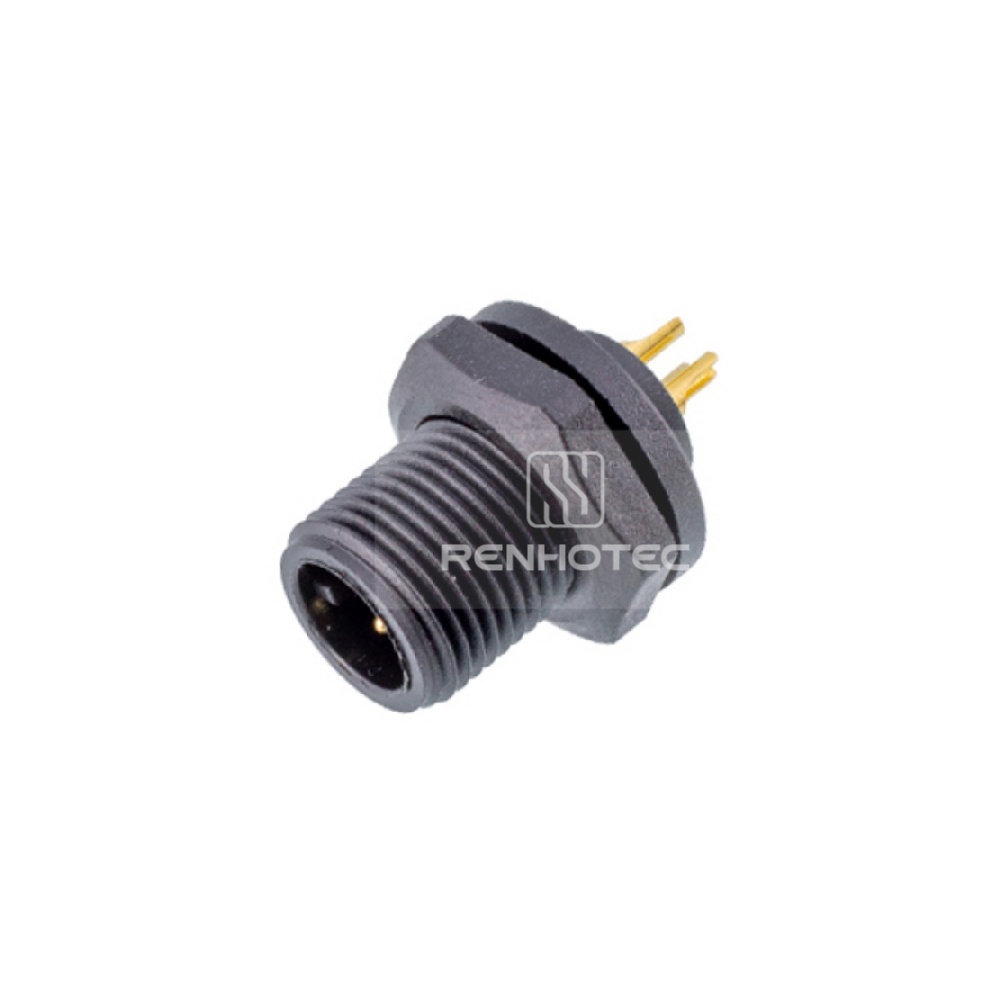

E7 Male Back Mount Solder Threaded Receptacle, IP67/IP68 Waterproof Connector

Артикул: R07007-02 0 0 00000 Категории: ,

Get a Quote

Product Type

Series

E7
Shell Material

Thermoplastic plastic PA66
Series

E7

 Shell Material

Thermoplastic plastic PA66

Installation Type

Panel Mount
Assembly Method

Screw Thread
Pins

2 Pin, 3 Pin, 4 Pin, 5 Pin, 6 Pin
Applicable Temperature

-25℃ ~ +105℃
Installation Type

Panel Mount

 Assembly Method

Screw Thread
Pins

2 Pin, 3 Pin, 4 Pin, 5 Pin, 6 Pin

 Applicable Temperature

-25℃ ~ +105℃

Electrical Characteristics

Contact Resistance

≤5mΩ
Insulation Resistance

≥100MΩ
Rated Voltage

2/3P: 125V, 4/5/6P: 60V
Rated Current

2/3P: 5A, 4/5/6P: 2A
Contact Resistance

≤5mΩ

 Insulation Resistance

≥100MΩ
Rated Voltage

2/3P: 125V, 4/5/6P: 60V

 Rated Current

2/3P: 5A, 4/5/6P: 2A

Environmental Characteristics

Protection Grade

IP67/IP68
Protection Grade

IP67/IP68
Series

E7
Installation Type

Panel Mount
Assembly Method

Screw Thread
Pins

2 Pin, 3 Pin, 4 Pin, 5 Pin, 6 Pin
Contact Resistance

≤5mΩ
Insulation Resistance

≥100MΩ
Rated Voltage

2/3P: 125V, 4/5/6P: 60V
Rated Current

2/3P: 5A, 4/5/6P: 2A
Protection Grade

IP67/IP68
Shell Material

Thermoplastic plastic PA66
Applicable Temperature

-25℃ ~ +105℃
