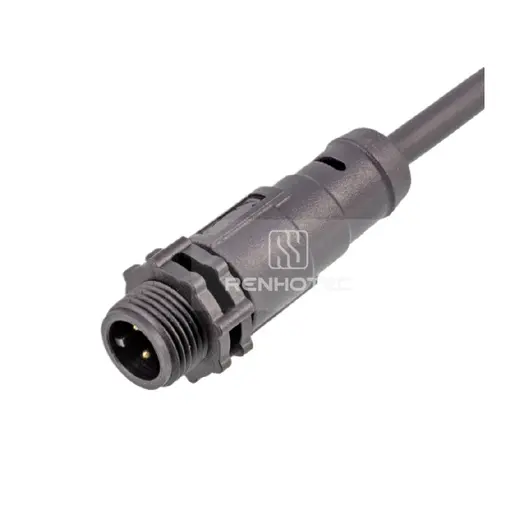

E7 Straight Male Overmolded Mating Threadaed Plug, 7/16"-28UNS IP67/IP68 Waterproof Connector

E7 Straight Male Overmolded Mating Threadaed Plug, 7/16″-28UNS IP67/IP68 Waterproof Connector

Артикул: R07005-02 0 0 00000 Категории: ,

Get a Quote

  • Smallest E-series size (7/16″-28UNS) for space-tight equipment
  • 2 to 6 pins, up to 5A, ideal for sensors and handheld gear
  • IP67 / IP68 sealed per IEC 60529 for outdoor and washdown use
  • Rated up to 20A for power and signal running in one link
  • PA66 nylon + glass fibre housing, UL94 V-0 flame retardant
  • Works from -25 °C to 105 °C across wet, dusty and oily sites

Our E-Series (E7 / E10 / E13) plastic waterproof connectors are built on American standard threads, offering 2 to 18 cores with both bayonet and threaded coupling options. The entire series features IP67/IP68 protection, wide operating temperature ranges, and compact designs, delivering integrated connection solutions – from signal transmission to power supply – for industrial automation, communication equipment, and sensor applications.

Pin Arrangement

Coupling Type

Screw Thread

  • Secure and stable connection
  • Excellent vibration resistance
  • Ideal for long-term installations

Bayonet Lock

  • Quick and easy locking
  • Tool-free installation
  • Ideal for frequent mating and unmating

Product Application

Built for outdoor and wet-environment equipment: LED display cabinets, architectural and street lighting, outdoor telecom and CCTV enclosures, industrial control cabinets, solar and energy storage systems, marine electronics, and washdown equipment in food processing.

E-series connectors are specified where multi-pin power and signal have to run through one sealed connection, and where corrosion resistance, insulation and unit cost matter more than impact strength. For high-impact sites, sustained temperatures above 100 °C, or EMI-shielded links, choose a metal-shell connector instead.

Product Type

Series

E7
Shell Material

Thermoplastic plastic PA66
Series

E7

 Shell Material

Thermoplastic plastic PA66

Installation Type

Cable Assembly
Assembly Method

Screw Thread
Pins

2 Pin, 3 Pin, 4 Pin, 5 Pin, 6 Pin
Applicable Temperature

-25℃ ~ +105℃
Installation Type

Cable Assembly

 Assembly Method

Screw Thread
Pins

2 Pin, 3 Pin, 4 Pin, 5 Pin, 6 Pin

 Applicable Temperature

-25℃ ~ +105℃

Electrical Characteristics

Contact Resistance

≤5mΩ
Insulation Resistance

≥100MΩ
Rated Voltage

2/3P: 125V, 4/5/6P: 60V
Rated Current

2/3P: 5A, 4/5/6P: 2A
Contact Resistance

≤5mΩ

 Insulation Resistance

≥100MΩ
Rated Voltage

2/3P: 125V, 4/5/6P: 60V

 Rated Current

2/3P: 5A, 4/5/6P: 2A

Environmental Characteristics

Protection Grade

IP67/IP68
Protection Grade

IP67/IP68
Series

E7
Installation Type

Cable Assembly
Assembly Method

Screw Thread
Pins

2 Pin, 3 Pin, 4 Pin, 5 Pin, 6 Pin
Contact Resistance

≤5mΩ
Insulation Resistance

≥100MΩ
Rated Voltage

2/3P: 125V, 4/5/6P: 60V
Rated Current

2/3P: 5A, 4/5/6P: 2A
Protection Grade

IP67/IP68
Shell Material

Thermoplastic plastic PA66
Applicable Temperature

-25℃ ~ +105℃
