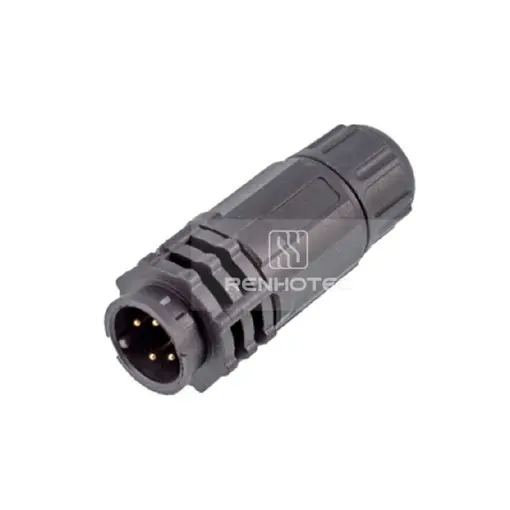

E10 Straight Male Field Installable Mating Bayonet Plug, IP67/IP68 Waterproof Connector

Артикул: R10020-02 A 0 00000 Категории: ,

Get a Quote

Product Type

Series

E10
Shell Material

Thermoplastic plastic PA66
Series

E10

 Shell Material

Thermoplastic plastic PA66

Installation Type

Cable Mount
Assembly Method

Bayonet Lock
Pins

10 Pin, 12 Pin, 2 Pin, 2B, 2C, 3 Pin, 3B, 3C, 4 Pin, 4B, 4C, 5 Pin, 6 Pin, 7 Pin, 8 Pin
Applicable Temperature

-45℃ ~ +105℃
Installation Type

Cable Mount

 Assembly Method

Bayonet Lock
Pins

10 Pin, 12 Pin, 2 Pin, 2B, 2C, 3 Pin, 3B, 3C, 4 Pin, 4B, 4C, 5 Pin, 6 Pin, 7 Pin, 8 Pin

 Applicable Temperature

-45℃ ~ +105℃

Electrical Characteristics

Contact Resistance

≤5mΩ
Insulation Resistance

≥2000MΩ
Rated Voltage

2B/3B/4B: 300V 2C/3C/4C: 125V 2/3/4/5/6/7/8P: 60V 10/12P: 30V
Rated Current

2B/3B/4B/2C/3C/4C: 10A 2/3/4/5/6/7/8P: 5A 10/12P: 2A
Contact Resistance

≤5mΩ

 Insulation Resistance

≥2000MΩ
Rated Voltage

2B/3B/4B: 300V 2C/3C/4C: 125V 2/3/4/5/6/7/8P: 60V 10/12P: 30V

 Rated Current

2B/3B/4B/2C/3C/4C: 10A 2/3/4/5/6/7/8P: 5A 10/12P: 2A

Environmental Characteristics

Protection Grade

IP67/IP68
Protection Grade

IP67/IP68
Series

E10
Installation Type

Cable Mount
Assembly Method

Bayonet Lock
Pins

10 Pin, 12 Pin, 2 Pin, 2B, 2C, 3 Pin, 3B, 3C, 4 Pin, 4B, 4C, 5 Pin, 6 Pin, 7 Pin, 8 Pin
Contact Resistance

≤5mΩ
Insulation Resistance

≥2000MΩ
Rated Voltage

2B/3B/4B: 300V 2C/3C/4C: 125V 2/3/4/5/6/7/8P: 60V 10/12P: 30V
Rated Current

2B/3B/4B/2C/3C/4C: 10A 2/3/4/5/6/7/8P: 5A 10/12P: 2A
Protection Grade

IP67/IP68
Shell Material

Thermoplastic plastic PA66
Applicable Temperature

-45℃ ~ +105℃
