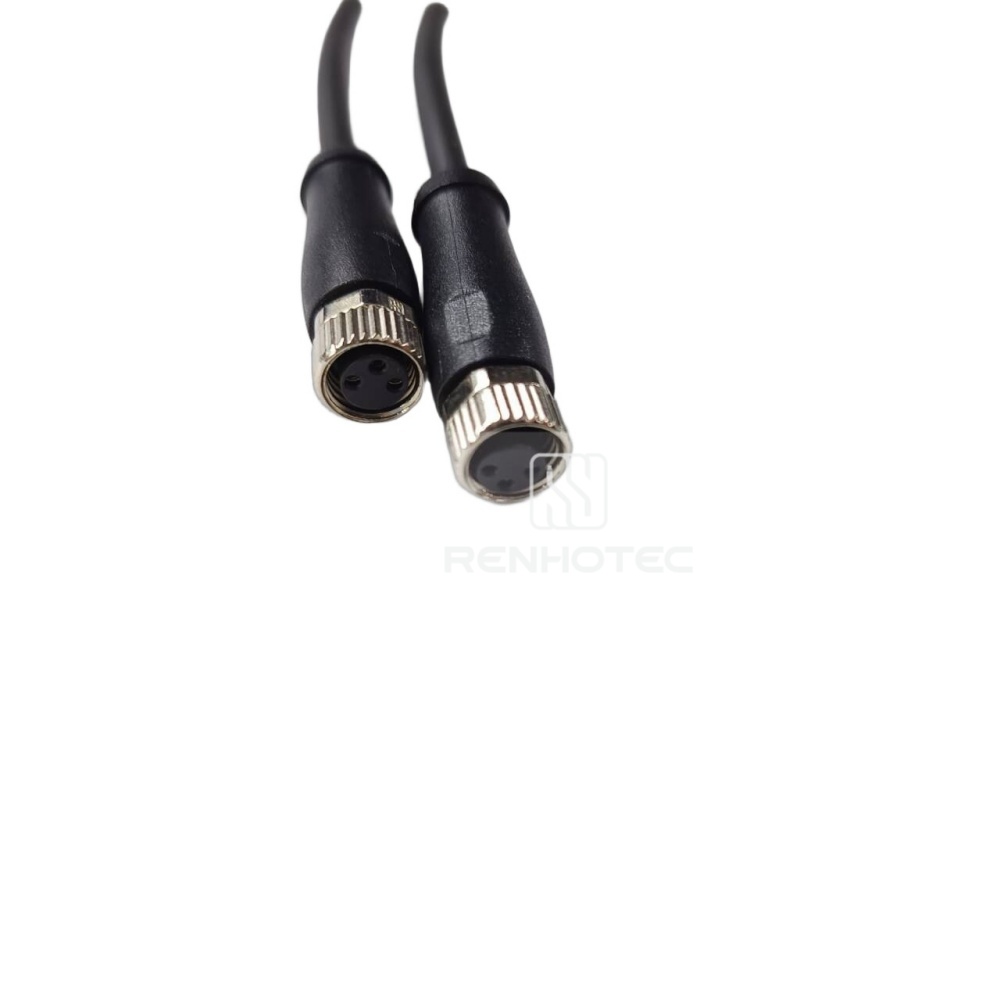

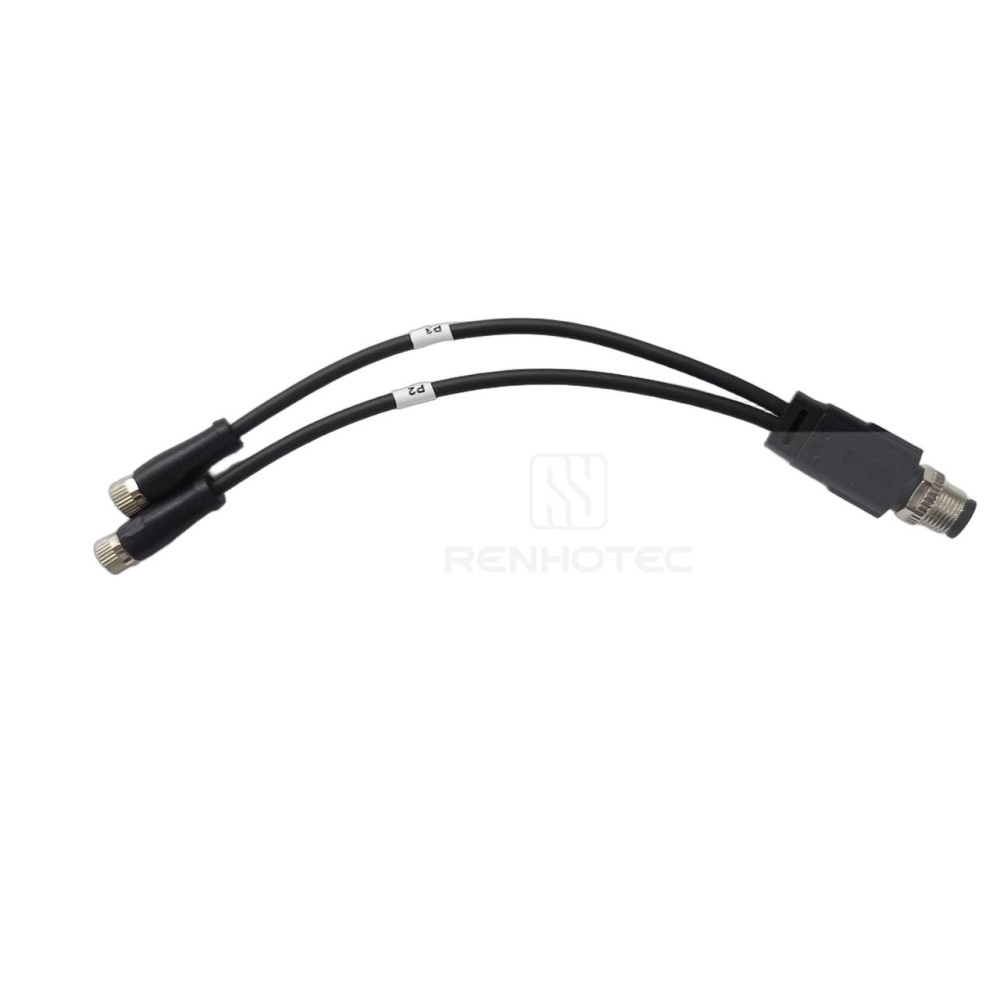

M12 A-code 4 Pin Male to 2xM8 3 Pin Female Y-type Adapter with AWG 24 3-Core Cable

Part NO.: RHT-605-11051 Categories: , Tag:

Get a Quote

  • Full Coding Options: A, B, D, X, S, T, K, L coded for signal, data, and power.
  • Versatile Pin Range: Available in 3, 4, 5, 8, 12, and 17 pin configurations.
  • Industrial Durability: IP67/IP68 rated for waterproof and dustproof reliability.
  • High-Speed Data: X-coded M12 supports up to 10Gbps for Industrial Ethernet.
  • Flexible Mounting: Shielded/unshielded options for PCB, panel, and cable mounts.
  • Global Applications: Ideal for automation, robotics, sensors, and IIoT systems.

Product Type

Product Type

Connection Type

Double Ended Cable
Orientation

Cable Material

PVC & PUR
Product Type

Connection Type

Double Ended Cable
Orientation

Cable Material

PVC & PUR

Basic Attributes

Gender

Male to Female
Gender

Male to Female

Contact Type

Contact Termination

Solder Cup
Contact Termination

Solder Cup

IP Degree

IP67
IP Degree

IP67

Electrical Characteristics

Rated Voltage

250V
Rated Current

4A
Insulation Resistance

≥100 MΩ
Contact Resistance

＜10 mΩ
Rated Voltage

250V

 Rated Current

4A
Insulation Resistance

≥100 MΩ

 Contact Resistance

＜10 mΩ

Environmental Characteristics

Operating Temperature

-25℃ ~ +80℃
Operating Temperature

-25℃ ~ +80℃
Product Type

Gender

Male to Female
Connection Type

Double Ended Cable
Orientation

Contact Termination

Solder Cup
IP Degree

IP67
Cable Material

PVC & PUR
Rated Voltage

250V
Rated Current

4A
Insulation Resistance

≥100 MΩ
Contact Resistance

＜10 mΩ
Operating Temperature

-25℃ ~ +80℃
