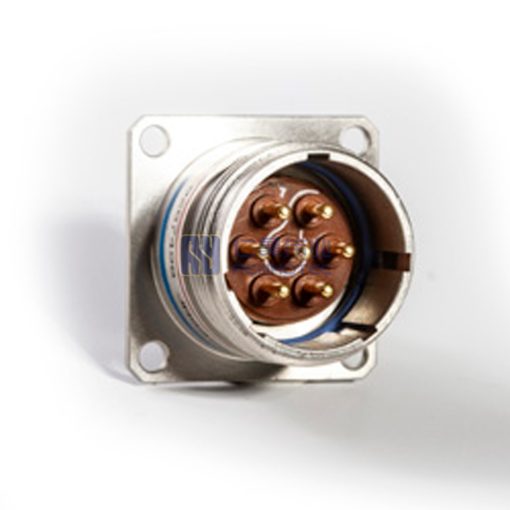

M83723/83W1006N MIL-DTL-83723 Series III No.10 Shell 6pin Male Wall Mount Receptacle Threaded Circular Connector

Part NO.: M83723/83W1006N Category: MIL-DTL-83723 Connector

• Sealed, threaded military connector for harsh environments.
• MIL-DTL-83723 Series III shell for superior durability.
• Male 6-pin receptacle ensures secure, reliable connections.
• Solves vibration and moisture issues in field applications.
• Wall-mount design for permanent, robust electrical interface.

Description
Attributes

The MIL-DTL-83723 Series III threaded connectors are engineered for high-performance interconnectivity in mission-critical environments. Featuring a rugged aluminum alloy shell with a corrosion-resistant cadmium olive drab finish (Class W), these connectors are built for long-term durability.

A key technical advantage is the self-locking RFI grounding mechanism in the M83723/98 series, designed to provide exceptional signal integrity and prevent decoupling under severe mechanical shock and vibration. Environmentally sealed to meet MIL-SPEC standards (equivalent to IP67 when mated), they maintain reliable performance across an expansive temperature range from -65°C to +200°C. Gold-plated copper alloy contacts ensure low contact resistance and meet standard durability requirements of 500 mating cycles.

Available in diverse configurations (Shell sizes 10-22), our M83723 series is designed to meet stringent aerospace and industrial requirements, providing consistent reliability for flight and ground support applications.

ZH83723 Receptacle Size

ZH83723 Insert Arrangement

How to Order

Applications

Commercial & Military Aviation (Mil-Spec Aerospace): Engineered for high-reliability performance in avionics bays and jet engine environments. Engineered for enhanced thermal stability in high-temperature zones.
Defense & Missile Systems: A trusted solution for aerospace telemetric devices, guided missile systems, and tactical defense electronics requiring precision signal integrity.
Satellite & Space Communications: Ideal for satellite communication (SATCOM) ground stations and space-grade hardware where consistent connectivity is mission-critical.
Marine & Subsea Electronics: Designed with advanced environmental sealing and salt-spray resistance, making them ideally suited for maritime navigation and shipboard electronic systems.
Heavy Industrial Automation: Ruggedized construction supports Industrial IoT (IIoT) and heavy-duty factory automation equipment operating in harsh, vibration-prone environments.

Technical FAQ

1. What are the primary technical advantages of MIL-DTL-83723 Series III connectors?

The MIL-DTL-83723 Series III is engineered for high-temperature stability (up to 200°C) and robust environmental sealing. The Series III M83723/98 plug features a self-locking RFI grounding mechanism designed to maintain signal integrity and prevent decoupling in high-vibration aerospace environments.

2. Are these connectors intermateable with other military standards?

Threaded versions of MIL-DTL-83723 Series III are designed to be intermateable with MIL-DTL-26500 threaded connectors of the same shell size and insert arrangement. However, we recommend verifying specific orientation (Keying) and contact types before integration into mission-critical systems.

3. What is the rated durability and environmental protection for this series?

Our M83723 series is designed to meet or exceed MIL-DTL-83723 standards, with a rated durability of 500 mating cycles. When properly mated, the assembly provides environmental sealing equivalent to IP67, protecting against moisture and fluid immersion.

4. Which shell finish should I choose for high-corrosion environments?

For maximum corrosion resistance in salt-spray or outdoor environments, Cadmium Olive Drab (Class W) is the industry standard. For applications requiring superior EMI/RFI shielding and electrical conductivity, Electroless Nickel (Class R) is recommended.

Product Type

Series	MIL-DTL-83723 Series
Connector Type	Receptacle
Orientation	Straight
Number of Positions	6
Shell Size	10
Fastening Type	Thread
Mounting Type	Panel
Shell Material	Aluminum Alloy
Shell Finish	Cadmium olive drab
Insulation Material	MOC
Shielding	Non-Shield
Series	MIL-DTL-83723 Series	Connector Type	Receptacle
Orientation	Straight	Number of Positions	6
Shell Size	10	Fastening Type	Thread
Mounting Type	Panel	Shell Material	Aluminum Alloy
Shell Finish	Cadmium olive drab	Insulation Material	MOC
Shielding	Non-Shield

Contact Type

Contact Type	Male
Contact Termination	Crimp
Contact Material	Copper Alloy
Contact Finish	Gold
Contact Type	Male	Contact Termination	Crimp
Contact Material	Copper Alloy	Contact Finish	Gold

Contact Layout	10-6
Shell Color	Olive Drab
Protection Rating	IP67
Contact Size	20#
Contact Layout	10-6	Shell Color	Olive Drab
Protection Rating	IP67	Contact Size	20#

Basic Attributes

Key	N
Key	N

Electrical Characteristics

Rated Current	7.5A
Rated Current	7.5A

Environmental Characteristics

Operating Temperature	-65℃ to +200℃
Operating Temperature	-65℃ to +200℃

Series	MIL-DTL-83723 Series
Connector Type	Receptacle
Orientation	Straight
Contact Type	Male
Number of Positions	6
Shell Size	10
Contact Layout	10-6
Fastening Type	Thread
Mounting Type	Panel
Contact Termination	Crimp
Key	N
Shell Material	Aluminum Alloy
Shell Finish	Cadmium olive drab
Insulation Material	MOC
Contact Material	Copper Alloy
Contact Finish	Gold
Shell Color	Olive Drab
Protection Rating	IP67
Shielding	Non-Shield
Contact Size	20#
Rated Current	7.5A
Operating Temperature	-65℃ to +200℃
