Why Do You Need an M12 to RJ45 Ethernet Cable?
You are setting up an industrial camera, PLC, I/O device, or other machine-mounted equipment, and you need to connect it to your Ethernet network. But there is a problem: the equipment has an M12 Ethernet port, while your Ethernet switch or industrial PC uses an RJ45 port.
This situation is common in factory automation and machine vision systems. The equipment may need a secure M12 connection on the machine side, while the network infrastructure in the control cabinet or server area is built around standard RJ45 Ethernet connections.
So, how do you connect the two?

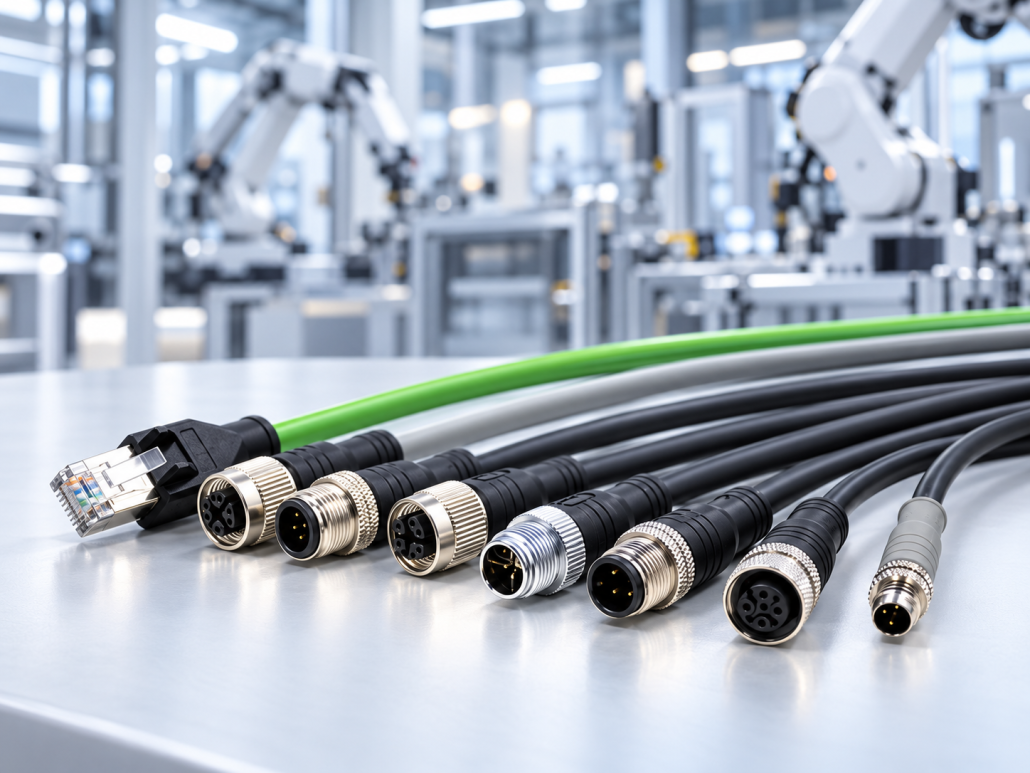

An M12 to RJ45 Ethernet cable provides a simple, ready-to-use connection between M12-equipped industrial equipment and RJ45 Ethernet devices.
Industrial Device → M12 → M12 to RJ45 Cable → RJ45 → Ethernet Switch / Industrial PC
Instead of modifying the equipment interface or assembling a cable on site, you can use a pre-assembled cable with the appropriate M12 connector on one end and RJ45 connector on the other.
In simple terms, the M12 to RJ45 Ethernet cable bridges the connection between industrial equipment and an existing RJ45 Ethernet network. The next step is to understand how this cable is actually used in a real industrial system.
How Is an M12 to RJ45 Cable Used in a Real Industrial System?
An M12 to RJ45 cable is typically used when an industrial device needs to communicate with a network device through different connector interfaces. In practice, two common scenarios are industrial automation and machine vision.
Scenario 1: Industrial Automation

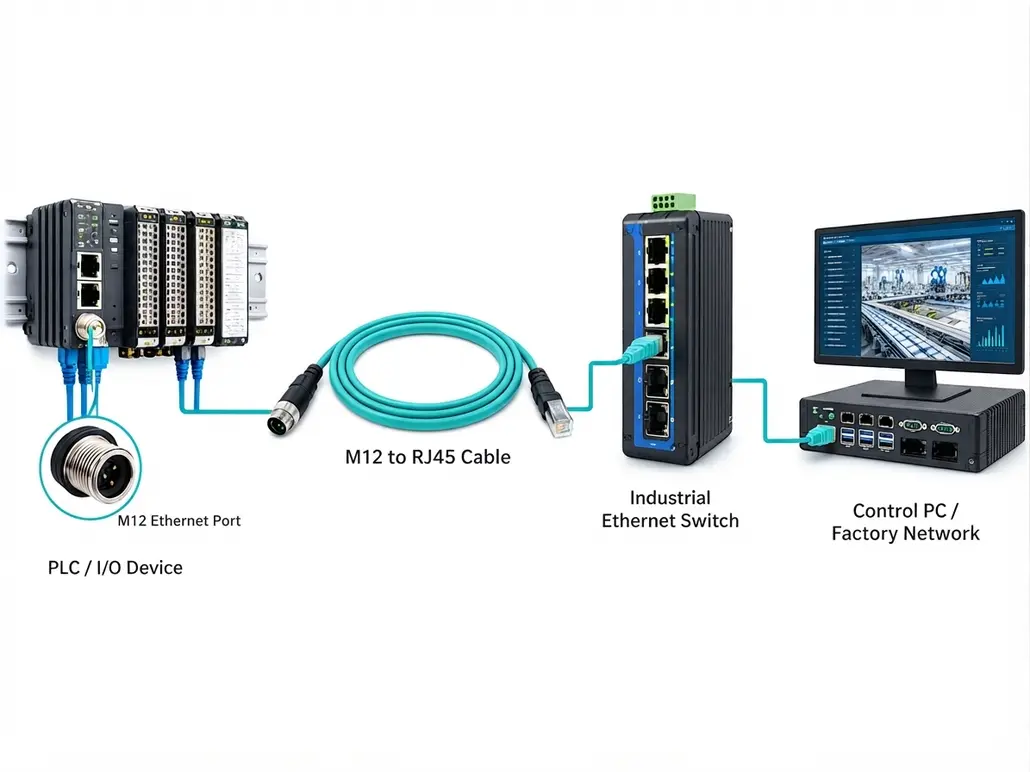

In a factory automation system, PLCs, I/O devices, controllers, and other field equipment may be installed directly on or close to the machine. The equipment can use an M12 Ethernet connection, while the industrial Ethernet switch or control PC uses an RJ45 port.
PLC / I/O Device → M12 → M12 to RJ45 Cable → RJ45 → Industrial Ethernet Switch
For example, an M12 port on a machine-mounted device can be connected to an RJ45 port on an industrial switch. The switch can then connect the device to the PLC, industrial PC, or wider factory network.
In this application, the cable is mainly used to provide a reliable physical Ethernet connection between the machine and the network infrastructure.
Scenario 2: Machine Vision

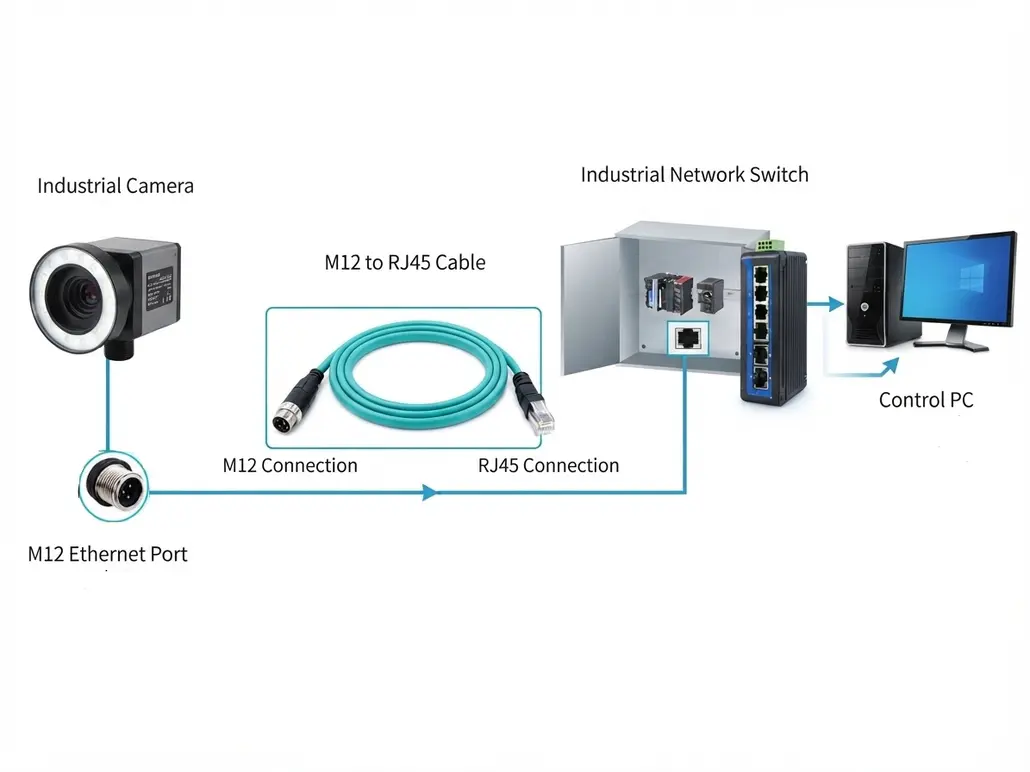

Machine vision is another practical application. An industrial camera may be mounted above a production line, inspection station, or robotic system, while the industrial PC that processes the camera data is located in a control cabinet.
Industrial Camera → M12 → M12 to RJ45 Cable → RJ45 → Ethernet Switch / Industrial PC
For cameras using an M12 X-coded Ethernet interface, an 8-pin X-coded to RJ45 cable is commonly used for high-speed Ethernet connections.
This setup allows the camera to remain securely connected on the machine side while the RJ45 end connects to the existing Ethernet infrastructure.
For moving cameras or robotic applications, cable flexibility, routing, and mechanical durability may also need to be considered.
In both scenarios, the cable is not the network itself. Its job is to provide the physical connection between an M12-equipped device and the RJ45 Ethernet network around it.
Which M12 Connector Do You Need?
which M12 connector should you choose?

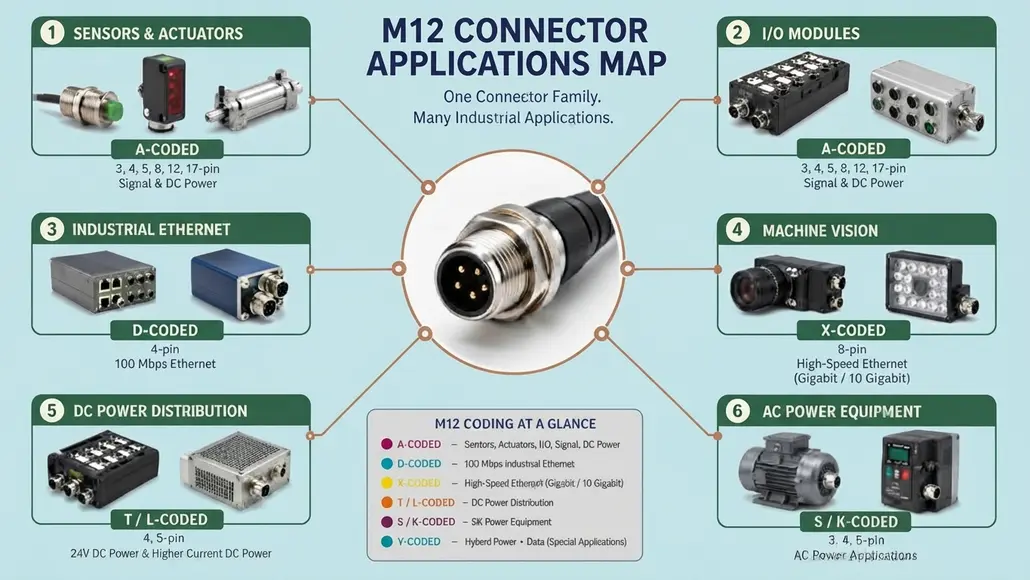

For Ethernet applications, M12 D-coded and X-coded connectors are the two configurations you are most likely to encounter. The right choice depends on the Ethernet interface of your equipment.
M12 D-Coded 4-Pin
M12 D-coded connectors commonly use 4 pins and are widely used for Industrial Ethernet applications in factory automation and field devices.
For example, a PLC, I/O device, or other machine-mounted equipment may use a 4-pin D-coded M12 Ethernet port and connect to an RJ45 industrial switch through an M12 to RJ45 cable.
M12 X-Coded 8-Pin
X-coded M12 connectors use 8 pins and are commonly associated with higher-speed Ethernet applications. In the market, M12 X-coded 8-pin to RJ45 cables are particularly common in industrial cameras, GigE Vision, machine vision, and high-speed Industrial Ethernet applications.
However, do not select an M12 Ethernet cable based on pin count alone. The coding, pin configuration, and equipment interface should all be checked before ordering.
M12 to RJ45 for Industrial Automation vs. Machine Vision
The right M12 to RJ45 cable depends not only on the connector, but also on how the equipment is installed and used.
| Industrial Automation | Machine Vision | |
|---|---|---|
| Typical Application | Factory automation and machine control | Inspection, quality control, and vision systems |
| Typical Equipment | PLC, I/O device, controller | Industrial camera, vision system |
| Installation | Mostly fixed or stable routing | Fixed or moving camera installation |
| Key Considerations | Interface, cable length, shielding, environment | Cable flexibility, bending, mechanical durability |
| Common M12 Choice | D-Coded 4-Pin | X-Coded 8-Pin |
In simple terms: Industrial automation focuses more on stable machine connections, while machine vision may require greater attention to data connection and cable movement. Always check the equipment specification before ordering to confirm the correct M12 configuration.
Renhotec Provides the Right Cable for Your Equipment
Need an M12 to RJ45 Ethernet cable that matches your equipment?
Renhotec Pro provides M12 to RJ45 overmolded cable assemblies for industrial automation, machine vision, robotics, and industrial Ethernet applications. The cable can be configured according to your equipment interface, installation space, cable routing, and application requirements.
M12 Connector: Multiple pin configurations and coding options
Connector Orientation: Straight or Right Angle
Connector Gender: Male / Female available
Cable Length: Standard and customized lengths
Cable Jacket: PVC / PUR / LSZH options
Shielding: Shielded / unshielded
Protection: IP67 / IP68
What Do We Need From You?
Send us your equipment model, M12 interface specification, required cable length, connector orientation, and application.
Backed by extensive experience with M Series connectors and cable assemblies, Renhotec can help verify the suitable M12 to RJ45 configuration for your equipment and application. From connector coding and pin configuration to cable length and construction, we can provide a cable solution tailored to your project requirements.
