In the world of modern industrial automation and power distribution, system reliability is the foundation of operational success. Standard electrical components often fail when exposed to the high vibration, chemical corrosion, and extreme temperatures typical of factory floors and outdoor job sites. Heavy Duty Connectors (HDC) are the specialized solution designed to bridge this gap, offering a ruggedized platform for seamless power, signal, and data transmission. By integrating superior environmental sealing with advanced modularity, these heavy duty electrical connectors ensure that mission-critical infrastructure remains functional in the most unforgiving settings.
What are Heavy Duty Connectors (HDC)?
Heavy Duty Connectors (HDC) are ruggedized electrical components designed to provide reliable power, signal, and data transmission in environments where standard connectors would fail. Unlike domestic or light-industrial connectors, HDCs are engineered to withstand extreme mechanical stress, chemical exposure, and electrical loads.
The architecture of a modern heavy-duty electrical connector is typically modular, consisting of four primary components:
- Hood: The top part that protects the cable entry.
- Housing: The base mounted on the machine or panel.
- Insert: The insulating body that holds the electrical contacts.
- Contacts: The pins and sockets that facilitate the electrical connection.
Core Advantages: Engineered for the Harshest Environments
The primary reason engineers specify heavy duty electrical connectors over circular or plastic alternatives is their unparalleled durability. These connectors are built to thrive where moisture, dust, and physical impact are constant threats.
Waterproof and Dustproof Ratings (IP65 – IP68)
Most industrial HDCs feature high Ingress Protection (IP) ratings. This is achieved through precision-engineered gaskets and robust locking levers that create a hermetic seal between the hood and housing. For outdoor or wash-down environments, IP68-rated connectors can withstand submersion in water, making them ideal for maritime or food processing applications.
Resilience Against Physical & Chemical Stress
- Vibration and Shock Resistance: Crucial for moving machinery and transportation.
- Chemical and Oil Resistance: The die-cast aluminum or high-performance plastic housings are coated to resist industrial lubricants, fuels, and cleaning agents.
- Temperature Extremes: High-quality inserts are made from materials like polycarbonate, allowing operation in temperatures ranging from -40°C to +125°C.
Deep Technical Analysis: 6 Essential Termination Technologies
The method of connecting a wire to the connector insert—known as termination—determines the assembly speed, maintenance requirements, and reliability under vibration. Based on industry standards, there are six primary types used in heavy duty connectors:
| Termination Type | Tooling Required | Vibration Resistance | Maintenance | Best For |
|---|---|---|---|---|
| Screw | Standard Screwdriver | Moderate | Periodic Retightening | Field Assembly |
| Crimp | Specialized Crimp Tool | Excellent | Low (Maintenance Free) | Mass Production |
| Axial Screw | Hex Key | High | Minimal | High Current |
| Spring | Screwdriver (to open) | Excellent | Maintenance Free | High Vibration |
| Quick Spring | Tool-free | High | Maintenance Free | Speed & Space |
| Push-in | Tool-free | Excellent | Maintenance Free | Maximum Efficiency |

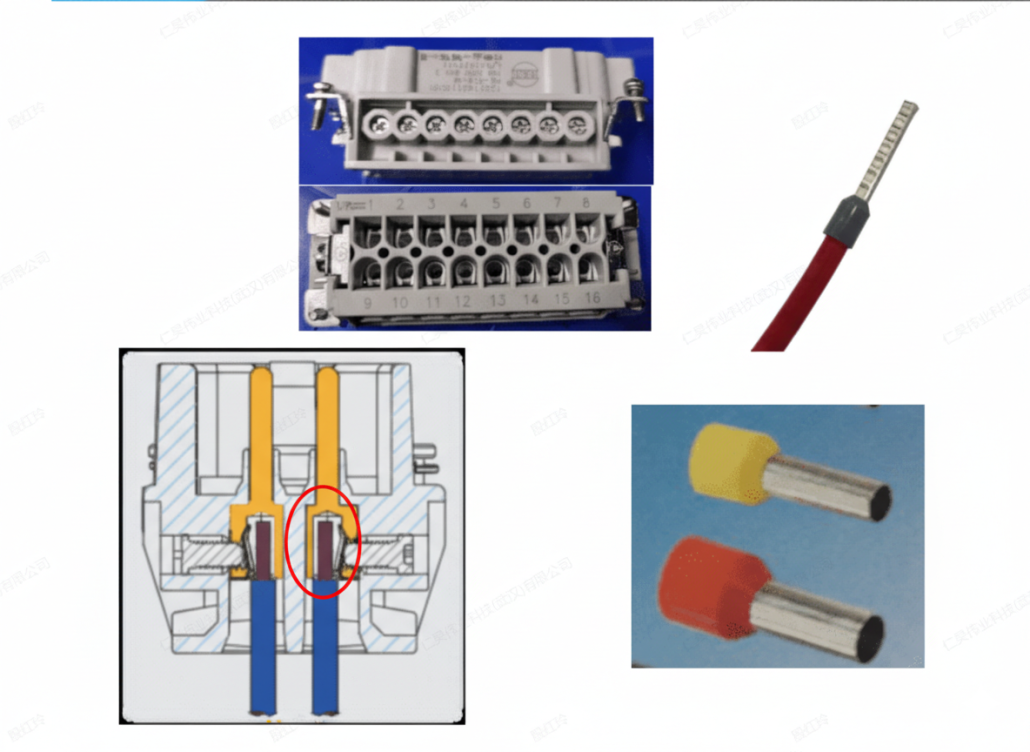

Screw Connection
The most traditional method, screw connection requires only a screwdriver. It is highly versatile and accommodates a wide range of wire gauges. However, it is not recommended for high-vibration environments as screws may loosen over time.

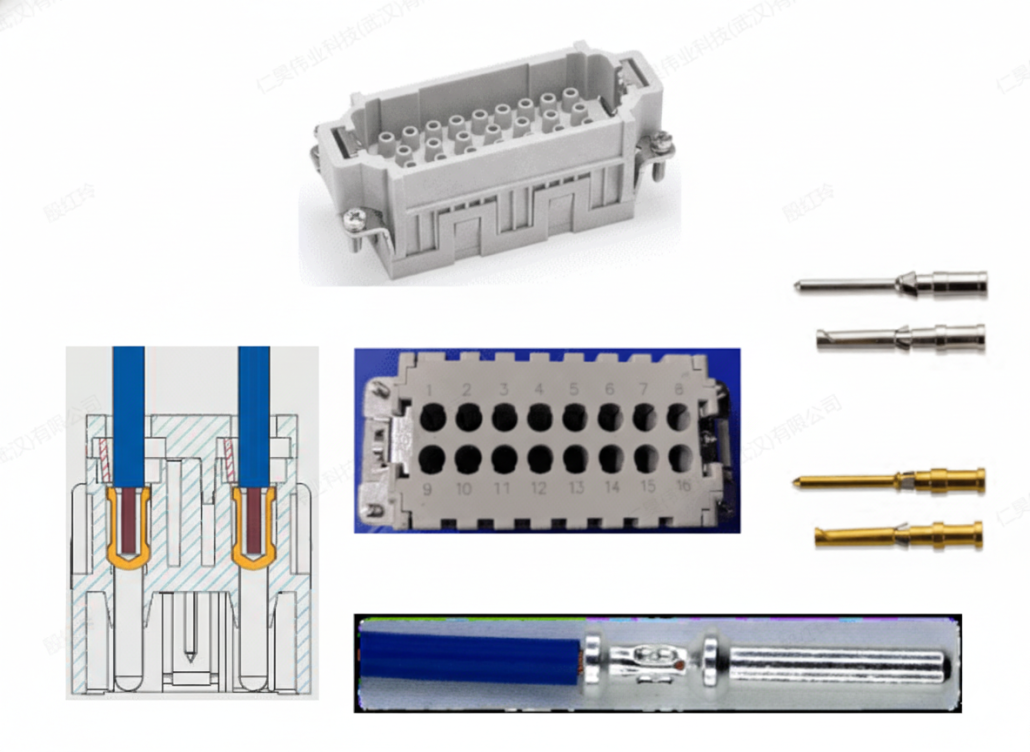

Crimp Connection
Crimp termination is the gold standard for high-density and high-vibration applications. By using a specialized tool to deform the contact around the wire, it creates a “cold weld” that is mechanically superior to other methods. It allows for pre-assembled wire harnesses but requires more specialized parts.
Push-in Connection
The modern evolution of termination, Push-in technology, allows solid wires or stranded wires with ferrules to be inserted directly into the contact without tools. This increases wiring efficiency significantly while maintaining excellent vibration resistance due to the constant tension of the internal spring.
Industrial Applications: Where HDCs are Indispensable
Heavy duty electrical connectors are vital in sectors where system downtime translates to massive financial loss.
- Railway and Transportation: Connectors must meet strict fire safety standards like EN45545-2. They are used for under-carriage power distribution and inter-car coupling where constant movement and vibration are present.
- Robotics and Automation: In robotic arms, modular HDCs allow for the simultaneous transmission of 480V power, sensitive sensor signals, and high-speed Ethernet data in a single compact housing.
- Off-Highway & Construction Machinery: Used in excavators and tractors, these connectors handle extreme mud, dust, and mechanical shock.
- Energy and Power Generation: Essential for wind turbines and solar tracking systems that are exposed to UV radiation and salt spray in offshore environments.
Frequently Asked Questions (FAQ)
Q1: Can I mix power and data in one Heavy Duty Connector?
Yes. Thanks to modular inserts, you can combine high-current power contacts with high-speed data modules (like RJ45 or Fiber Optics) and pneumatic tubes within a single housing.
Q2: What is the difference between IP65 and IP68 housings?
IP65 ensures protection against dust and low-pressure water jets from any direction. IP68 provides a higher level of sealing, allowing the connector to be protected against long periods of immersion under pressure.
Q3: Why is Crimp termination preferred for mass production?
Crimp termination allows for automated wire processing. Once crimped, the contacts can be snapped into the inserts quickly, ensuring consistent quality and high vibration resistance that screw terminals cannot match.
