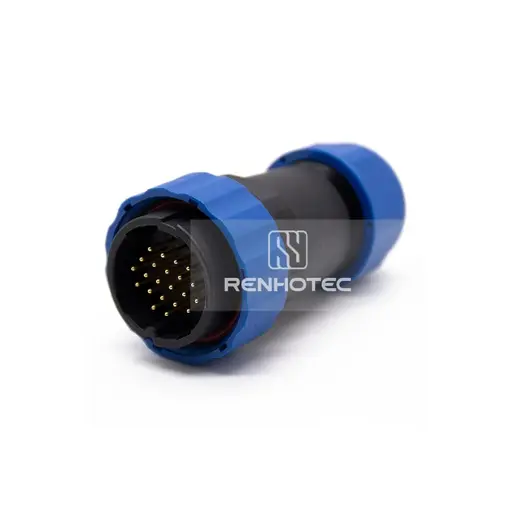

SP2910/P22 Waterproof Plug Cable Connector Solder

SP2910/P22 Waterproof Plug Cable Connector Solder - Image 2

SP2910/P22 Waterproof Plug Cable Connector Solder - Image 3

SP2910/P22 Waterproof Plug Cable Connector Solder

Part NO.: SP2910/P22 Categories: SP29, SP Series Connector

SP2910-P22 SP Series Connector Specs & Datasheet

Get a Quote

Solder this waterproof plug connector for secure, moisture-resistant electrical connections.
SP2910/P22 ensures reliable performance in damp or outdoor environments, preventing corrosion.
Achieve durable, sealed cable joints easily with this specialized solderable connector.

Description
Attributes

The SP13, SP17, and SP21 connectors are all IP68 connectors, threaded coupling.
The connectors can be used for both cable-to-cable (in-line) or cable-to-panel-mount connections. Each side can be male or female contact, (Plug or socket versions). The IP68 sealing caps are available on both cable connectors and panel connectors.

SP Connector Details

Male & Female

Multi-style Optional

Product Type

Connector Type	Plug
Orientation	Straight
Number of Positions	22 Pin
Shell Size	M29
Fastening Type	Threaded
Mounting Type	Cable Mount
Shell Material	Copper Alloy
Insulation Material	PPS
Shielding	Unshielded
Connector Type	Plug	Orientation	Straight
Number of Positions	22 Pin	Shell Size	M29
Fastening Type	Threaded	Mounting Type	Cable Mount
Shell Material	Copper Alloy	Insulation Material	PPS
Shielding	Unshielded

Contact Type

Contact Type	Male Pin
Contact Termination	Solder
Contact Material	Copper Alloy
Contact Finish	Gold Plating
Contact Type	Male Pin	Contact Termination	Solder
Contact Material	Copper Alloy	Contact Finish	Gold Plating

Environmental Characteristics

Ingress Protection	IP68
Operating Temperature	-40°C ~ + 85°C
Ingress Protection	IP68	Operating Temperature	-40°C ~ + 85°C

Electrical Characteristics

Rated Current	5A
Rated Voltage	400V
Rated Current	5A	Rated Voltage	400V

Connector Type	Plug
Orientation	Straight
Contact Type	Male Pin
Number of Positions	22 Pin
Shell Size	M29
Fastening Type	Threaded
Mounting Type	Cable Mount
Contact Termination	Solder
Shell Material	Copper Alloy
Insulation Material	PPS
Contact Material	Copper Alloy
Contact Finish	Gold Plating
Ingress Protection	IP68
Shielding	Unshielded
Rated Current	5A
Rated Voltage	400V
Operating Temperature	-40°C ~ + 85°C
