M12 A-code 5 Pin Female Straight Metal Plug with Screw Termination, 316L Stainless Steel

Part NO.: RHT-9634-3528 Categories: , Tag:

Get a Quote

  • Full Coding Options: A, B, D, X, S, T, K, L coded for signal, data, and power.
  • Versatile Pin Range: Available in 3, 4, 5, 8, 12, and 17 pin configurations.
  • Industrial Durability: IP67/IP68 rated for waterproof and dustproof reliability.
  • High-Speed Data: X-coded M12 supports up to 10Gbps for Industrial Ethernet.
  • Flexible Mounting: Shielded/unshielded options for PCB, panel, and cable mounts.
  • Global Applications: Ideal for automation, robotics, sensors, and IIoT systems.

M12 Field Wireable Connectors

Exquisite Craftsmanship Makes Connections More Secure

Thickened pins/long life Copper-zinc material, high resistance, wear resistance Threaded cable, easy to remove and plug, tightly combined, and not easy to fall off.

Safe and Reliable Meet the Standards to Create Safety

Pure copper gold-plated contacts with excellent electrical conductivity Fixed key position, multi-key position to prevent blindness, MIS insertion, skew insertion Strong waterproof performance, in line with IP67/IP68 waterproof requirements.

Product Details

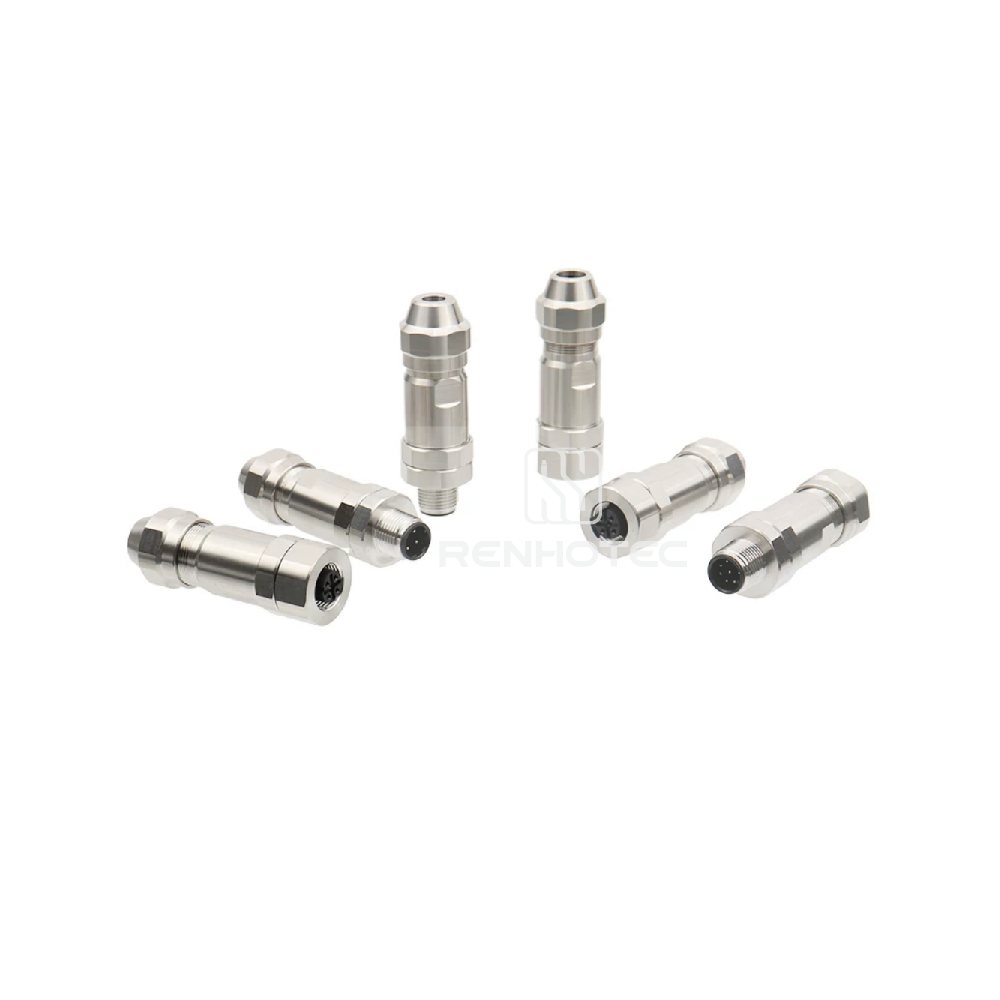

M12 Field Wireable connectors are available in a wide range of straight and Right angle, male and female, and plastic and metal versions.

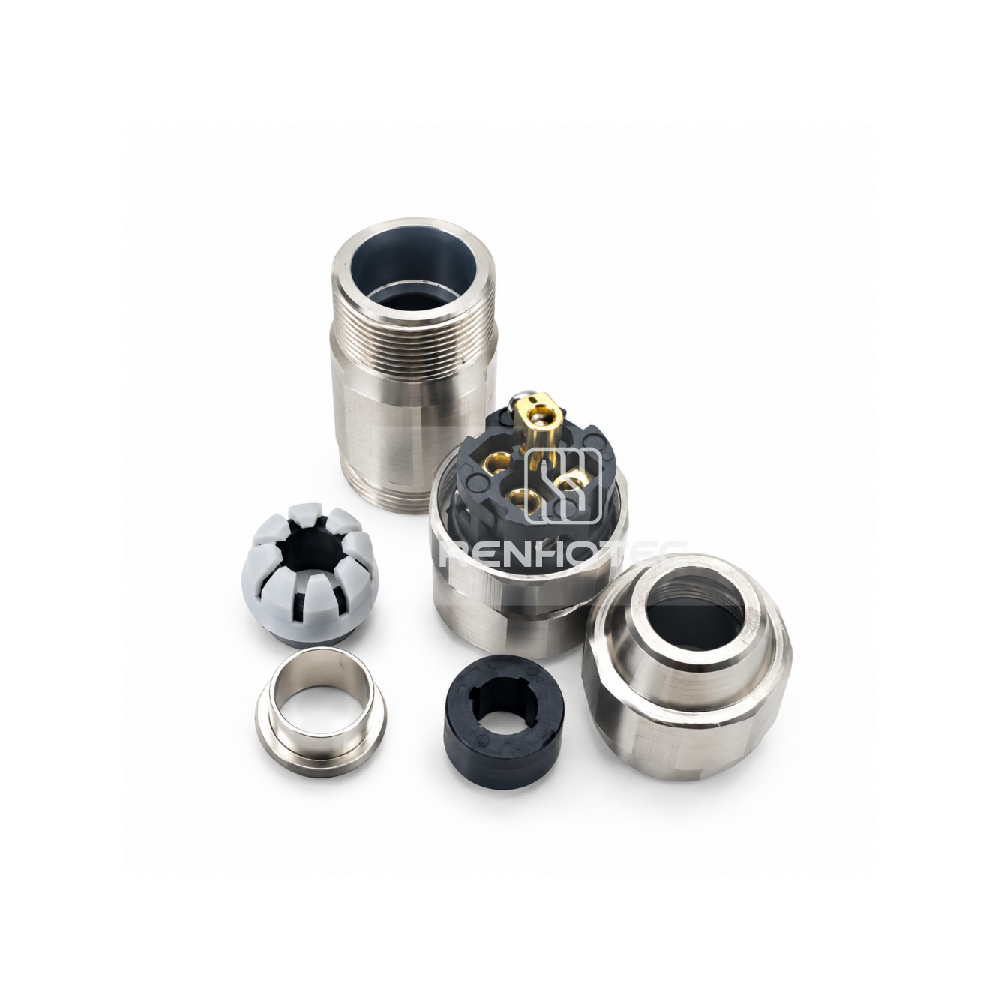

The field mount connector consists of six parts. In order, they are the threaded compression nut, compression ring, rubber cord grip, shielding bail, housing and connector.

Difference between PG7 and PG9

PG7 and PG9 are German standard thread sizes for cable fixing devices.PG7 is suitable for cable diameters from approx. 3.5mm to 6.5mm, while PG9 is suitable for cable diameters from approx. 4mm to 8mm. The choice depends on the cable diameter and equipment requirements.

FAQ

The M12 connector is a circular connector with a 12 mm locking thread. Suitable for factory automation applications, actuators, sensors, industrial Ethernet and fieldbus, etc. M12 connectors are also useful in flushing and corroding environments. They are available with 3, 4, 5, 8, and 12 pins.

M8 connectors, with an 8-mm circular coupler, are specifically used in industrial automated systems, typically linking sensors, actuators, and switches. M8 connectors can be used for similar applications as M12, but have a smaller footprint incorporating an 8mm threaded head.

For data applications, there are five main types of M12 connectors with key positions A, B, C, D or X. These connectors are available with 2, 3, 4, 5, 6, 8, 12, or 17 pins. Depending on the number of signals, type of signals, type of interface involved in the connection, and the connector code.

The M12 name comes from the metric thread on the coupling nut and mating socket of most connectors. They are basically 12 mm diameter fasteners with an M12 thread.

Product Type

Product Type

Mounting Type

Connector Type

Orientation

Product Type

Mounting Type

Connector Type

Orientation

Basic Attributes

Gender

Female
Gender

Female

Contact Type

Contact Termination

Solder Cup
Contact Termination

Solder Cup

IP Degree

IP67
IP Degree

IP67

Electrical Characteristics

Rated Voltage

250V
Rated Current

4A
Insulation Resistance

≥100 MΩ
Contact Resistance

＜10 mΩ
Rated Voltage

250V

 Rated Current

4A
Insulation Resistance

≥100 MΩ

 Contact Resistance

＜10 mΩ

Environmental Characteristics

Operating Temperature

-25℃ ~ +80℃
Operating Temperature

-25℃ ~ +80℃
Product Type

Mounting Type

Gender

Female
Connector Type

Orientation

Contact Termination

Solder Cup
IP Degree

IP67
Rated Voltage

250V
Rated Current

4A
Insulation Resistance

≥100 MΩ
Contact Resistance

＜10 mΩ
Operating Temperature

-25℃ ~ +80℃
M12 Series Connector Product CatalogDownload
M Series Connector Product CatalogDownload
CE Test ReportDownload
ISO Test ReportDownload
REACH Test ReportDownload
RoHS Test ReportDownload
