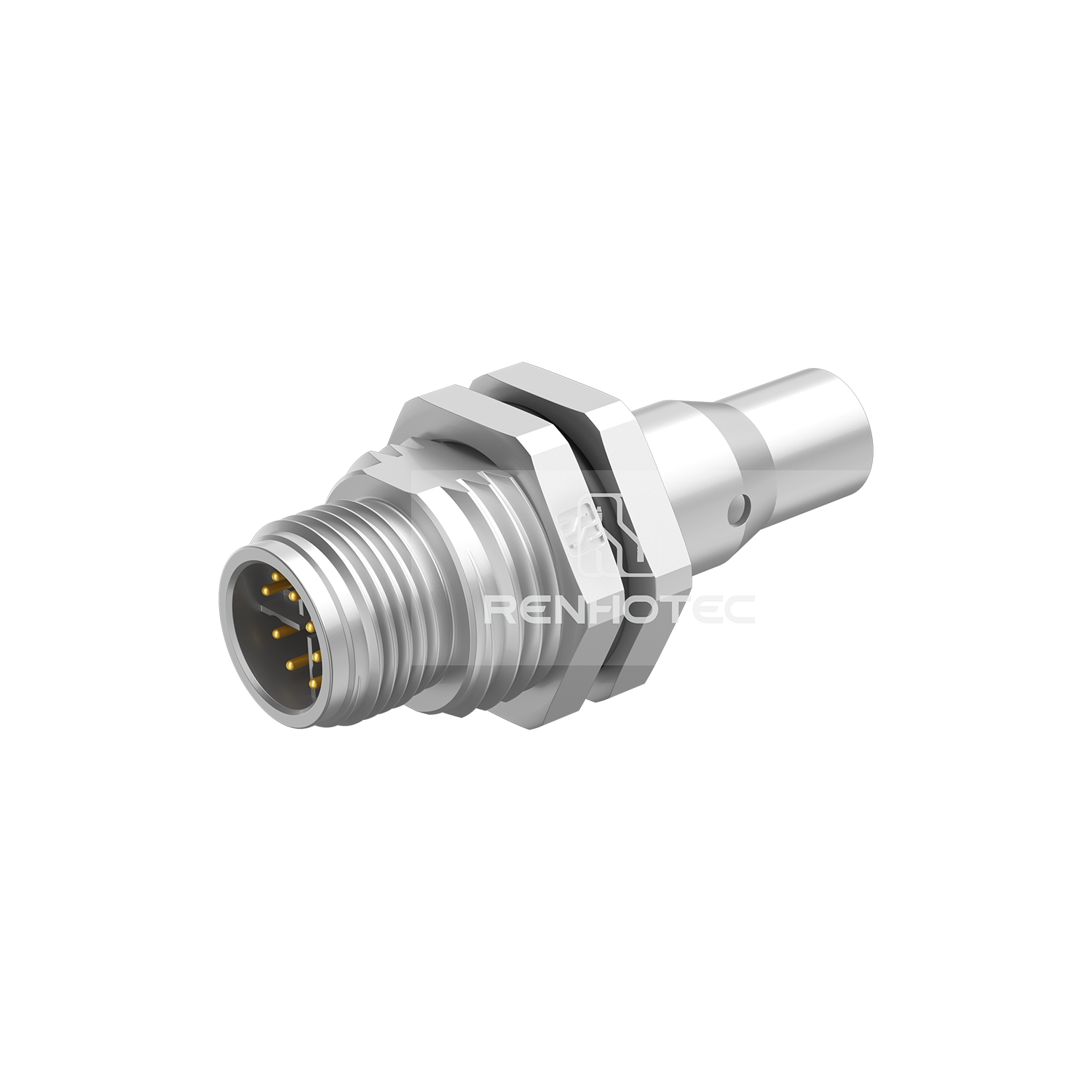

M12 8 Pin X Code Male Straight Solder Cup Front Fastened Shielded Panel Receptacle M16X1.5 with Shielding Tube

M12 8 Pin X Code Male Straight Solder Cup Front Fastened Shielded Panel Receptacle M16X1.5 with Shielding Tube

Part NO.: RHT-634-3532-8X Categories: , , Tag:

Get a Quote

  • Full Coding Options: A, B, D, X, S, T, K, L coded for signal, data, and power.
  • Versatile Pin Range: Available in 3, 4, 5, 8, 12, and 17 pin configurations.
  • Industrial Durability: IP67/IP68 rated for waterproof and dustproof reliability.
  • High-Speed Data: X-coded M12 supports up to 10Gbps for Industrial Ethernet.
  • Flexible Mounting: Shielded/unshielded options for PCB, panel, and cable mounts.
  • Global Applications: Ideal for automation, robotics, sensors, and IIoT systems.

M12 Panel Receptacle Features

Connector Key

M12 connector keys include A, B, C, D, X, K, L, S, and T. Among these, sensors and actuators commonly use A coding. Ethernet communications employ D and X coding. Power supplies utilize C, K, S, and T coding. Field effect bus applications take advantage of B coding. Lastly, L coding is specifically designed for device power supplies with single wiring. Each code supports different pin configurations to meet a variety of data and power requirements.

PCB Type and Solder Type

Solder type M12 connectors offer excellent durability and solder connections. Ideal for harsh environments. On the other hand, PCB type M12 connectors are simple to install and easy to maintain. They provide users with an efficient and convenient solution, especially for applications that require quick and easy operation.

M12 Panel Receptacle Application

Solutions include a wide range of connectors, such as sockets, cable assemblies and IO boxes, and provide users with interfaces to support higher bandwidth requirements up to 10Gb/s.

M12 application

FAQ

The M12 connector is a circular connector with a 12 mm locking thread. Suitable for factory automation applications, actuators, sensors, industrial Ethernet and fieldbus, etc. M12 connectors are also useful in flushing and corroding environments. They are available with 3, 4, 5, 8, and 12 pins.

M8 connectors, with an 8-mm circular coupler, are specifically used in industrial automated systems, typically linking sensors, actuators, and switches. M8 connectors can be used for similar applications as M12, but have a smaller footprint incorporating an 8mm threaded head.

For data applications, there are five main types of M12 connectors with key positions A, B, C, D or X. These connectors are available with 2, 3, 4, 5, 6, 8, 12, or 17 pins. Depending on the number of signals, type of signals, type of interface involved in the connection, and the connector code.

The M12 name comes from the metric thread on the coupling nut and mating socket of most connectors. They are basically 12 mm diameter fasteners with an M12 thread.

Product Type

Product Type

Number of Positions

8 Pin
Orientation

Insulation Material

PA66+GF
Wire Gauge

24AWG/0.25mm²
Shielding

Shielded
Product Type

Number of Positions

8 Pin
Orientation

Insulation Material

PA66+GF
Wire Gauge

24AWG/0.25mm²

 Shielding

Shielded

Basic Attributes

Key

X
Gender

Male
Key

X

 Gender

Male

Body Material

Brass, Nickel Plated
Panel Cut-out Dimensions

M16x1.5
Seal

Black, NBR
Shielding Bracket Material

Nickel Plated, Zinc Alloy
Protection Rating

IP67(Mated)
Mating Cycles

≥500
Temperature Range

-25℃ ~ +80℃
Body Material

Brass, Nickel Plated

 Panel Cut-out Dimensions

M16x1.5
Seal

Black, NBR

 Shielding Bracket Material

Nickel Plated, Zinc Alloy
Protection Rating

IP67(Mated)

 Mating Cycles

≥500
Temperature Range

-25℃ ~ +80℃

Contact Type

Contact Finish

Gold
Contact Material

Phosphor bronze
Contact Termination

Solder Cup
Contact Finish

Gold

 Contact Material

Phosphor bronze
Contact Termination

Solder Cup

Electrical Characteristics

Rated Current

0.5A
Rated Voltage

60V AC/DC
Contact Resistance

≤5mΩ
Insulation Resistance

≥100MΩ
Rated Current

0.5A

 Rated Voltage

60V AC/DC
Contact Resistance

≤5mΩ

 Insulation Resistance

≥100MΩ
Product Type

Key

X
Number of Positions

8 Pin
Gender

Male
Orientation

Body Material

Brass, Nickel Plated
Contact Finish

Gold
Contact Material

Phosphor bronze
Contact Termination

Solder Cup
Insulation Material

PA66+GF
Panel Cut-out Dimensions

M16x1.5
Wire Gauge

24AWG/0.25mm²
Seal

Black, NBR
Shielding Bracket Material

Nickel Plated, Zinc Alloy
Shielding

Shielded
Protection Rating

IP67(Mated)
Rated Current

0.5A
Rated Voltage

60V AC/DC
Contact Resistance

≤5mΩ
Insulation Resistance

≥100MΩ
Mating Cycles

≥500
Temperature Range

-25℃ ~ +80℃
