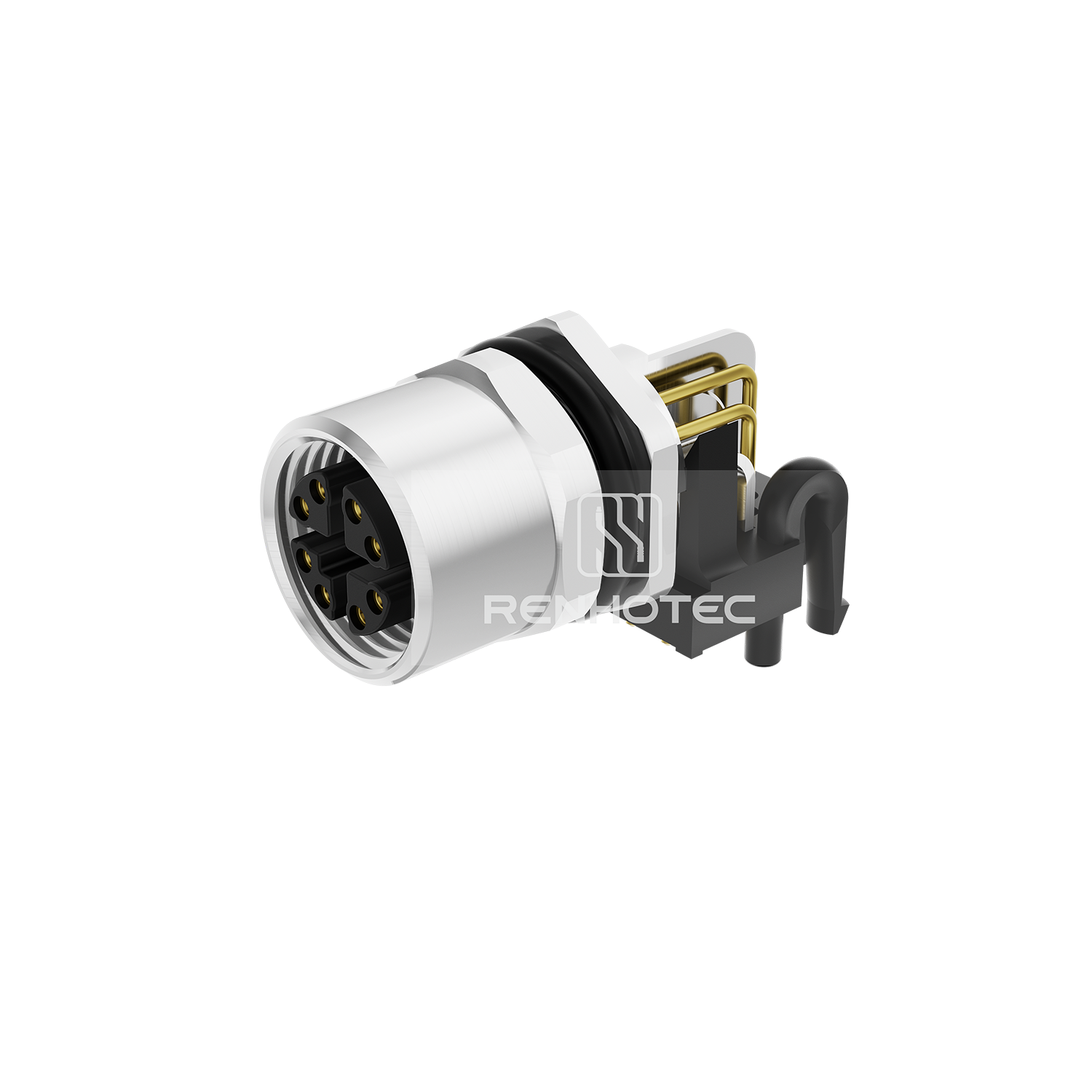

M12 8 Pin X Code Female Right Angle PCB Type Front Fastened Shielded Panel Receptacle

M12 8 Pin X Code Female Right Angle PCB Type Front Fastened Shielded Panel Receptacle

Part NO.: RHT-634-1496-8X Categories: M12 Data & Ethernet Connectors, M Connector, M12 Tag: M12 Panel Receptacles

Attributes

Basic Attributes

Key	X
Key	X

Product Type

Number of Positions	8 Pin
Orientation	Angled
Insulation Material	PA66+GF
Shielding	Shielded
Number of Positions	8 Pin	Orientation	Angled
Insulation Material	PA66+GF	Shielding	Shielded

Contact Type

Contact Type	Female
Contact Finish	Gold
Contact Material	Copper
Contact Termination	PCB Solder
Contact Type	Female	Contact Finish	Gold
Contact Material	Copper	Contact Termination	PCB Solder

Body Material	Copper, Nickel Plated
Seal	Black, NBR
Shielding Bracket Material	Nickel Plated, Zinc Alloy
Protection Rating	IP67(Mated)
Mating Cycles	≥500
Temperature Range	-25℃ ~ +80℃
Body Material	Copper, Nickel Plated	Seal	Black, NBR
Shielding Bracket Material	Nickel Plated, Zinc Alloy	Protection Rating	IP67(Mated)
Mating Cycles	≥500	Temperature Range	-25℃ ~ +80℃

Electrical Characteristics

Rated Current	0.5A
Rated Voltage	60V AC/DC
Contact Resistance	≤5mΩ
Insulation Resistance	≥100MΩ
Rated Current	0.5A	Rated Voltage	60V AC/DC
Contact Resistance	≤5mΩ	Insulation Resistance	≥100MΩ

Key	X
Number of Positions	8 Pin
Contact Type	Female
Orientation	Angled
Body Material	Copper, Nickel Plated
Contact Finish	Gold
Contact Material	Copper
Contact Termination	PCB Solder
Insulation Material	PA66+GF
Seal	Black, NBR
Shielding Bracket Material	Nickel Plated, Zinc Alloy
Shielding	Shielded
Protection Rating	IP67(Mated)
Rated Current	0.5A
Rated Voltage	60V AC/DC
Contact Resistance	≤5mΩ
Insulation Resistance	≥100MΩ
Mating Cycles	≥500
Temperature Range	-25℃ ~ +80℃
