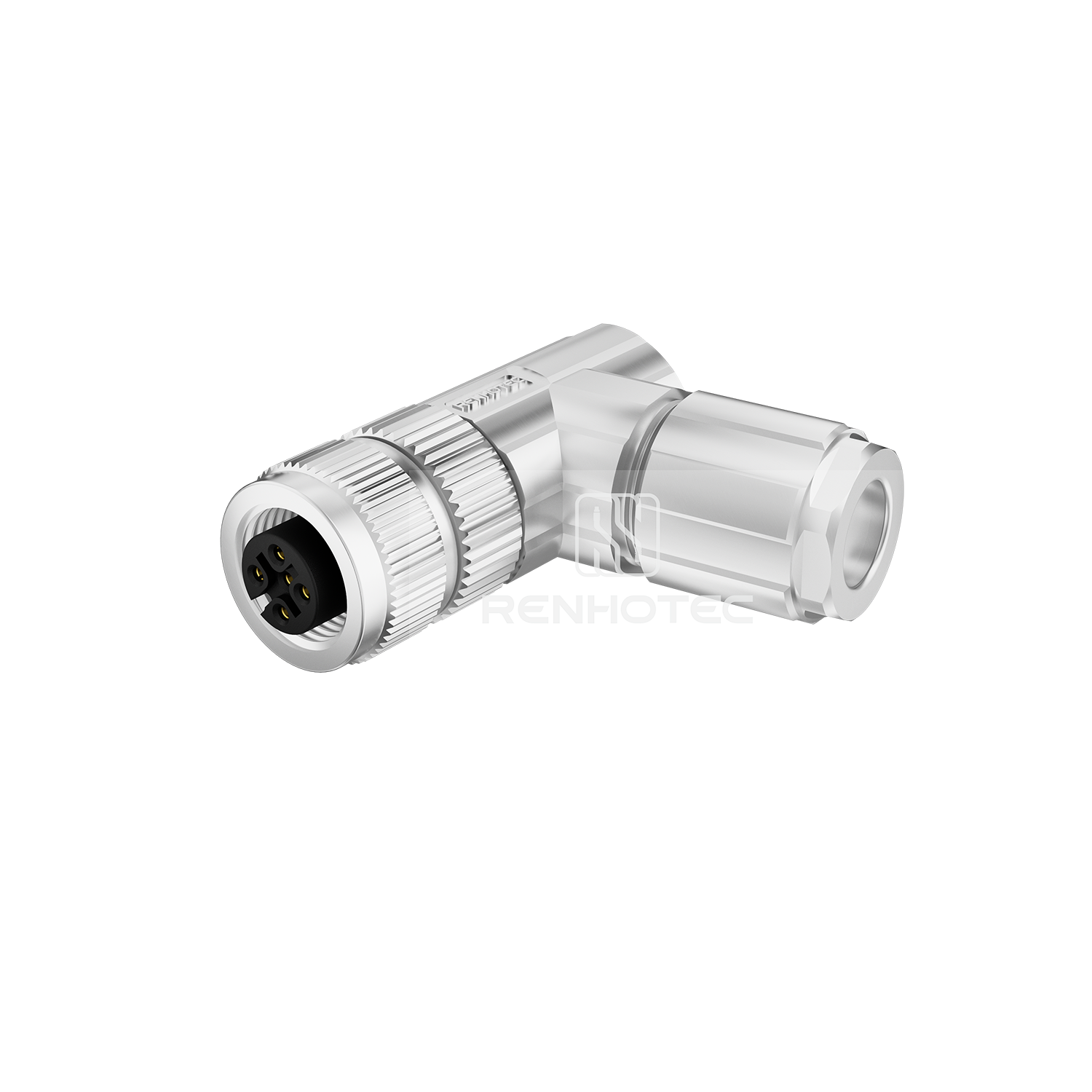

M12 4 Pin D Code Female Plug Right Angle Metal Shell Field Wireable Connector, Solder Cup

M12 4 Pin D Code Female Plug Right Angle Metal Shell Field Wireable Connector, Solder Cup

Part NO.: RHT-634-3294-4D Categories: , , Tag:

Get a Quote

  • Full Coding Options: A, B, D, X, S, T, K, L coded for signal, data, and power.
  • Versatile Pin Range: Available in 3, 4, 5, 8, 12, and 17 pin configurations.
  • Industrial Durability: IP67/IP68 rated for waterproof and dustproof reliability.
  • High-Speed Data: X-coded M12 supports up to 10Gbps for Industrial Ethernet.
  • Flexible Mounting: Shielded/unshielded options for PCB, panel, and cable mounts.
  • Global Applications: Ideal for automation, robotics, sensors, and IIoT systems.

M12 Field Wireable Connectors

Exquisite Craftsmanship Makes Connections More Secure

Thickened pins/long life Copper-zinc material, high resistance, wear resistance Threaded cable, easy to remove and plug, tightly combined, and not easy to fall off.

Safe and Reliable Meet the Standards to Create Safety

Pure copper gold-plated contacts with excellent electrical conductivity Fixed key position, multi-key position to prevent blindness, MIS insertion, skew insertion Strong waterproof performance, in line with IP67/IP68 waterproof requirements.

Product Details

M12 Field Wireable connectors are available in a wide range of straight and Right angle, male and female, and plastic and metal versions.

The field mount connector consists of six parts. In order, they are the threaded compression nut, compression ring, rubber cord grip, shielding bail, housing and connector.

Difference between PG7 and PG9

PG7 and PG9 are German standard thread sizes for cable fixing devices.PG7 is suitable for cable diameters from approx. 3.5mm to 6.5mm, while PG9 is suitable for cable diameters from approx. 4mm to 8mm. The choice depends on the cable diameter and equipment requirements.

FAQ

The M12 connector is a circular connector with a 12 mm locking thread. Suitable for factory automation applications, actuators, sensors, industrial Ethernet and fieldbus, etc. M12 connectors are also useful in flushing and corroding environments. They are available with 3, 4, 5, 8, and 12 pins.

M8 connectors, with an 8-mm circular coupler, are specifically used in industrial automated systems, typically linking sensors, actuators, and switches. M8 connectors can be used for similar applications as M12, but have a smaller footprint incorporating an 8mm threaded head.

For data applications, there are five main types of M12 connectors with key positions A, B, C, D or X. These connectors are available with 2, 3, 4, 5, 6, 8, 12, or 17 pins. Depending on the number of signals, type of signals, type of interface involved in the connection, and the connector code.

The M12 name comes from the metric thread on the coupling nut and mating socket of most connectors. They are basically 12 mm diameter fasteners with an M12 thread.

Product Type

Product Type

Number of Positions

4 Pin
Orientation

Insulation Material

TPU
Wire Gauge

22AWG/0.34mm²
Shielding

Shielded
Product Type

Number of Positions

4 Pin
Orientation

Insulation Material

TPU
Wire Gauge

22AWG/0.34mm²

 Shielding

Shielded

Basic Attributes

Key

D
Gender

Female
Key

D

 Gender

Female

Body Material

Nickel Plated, ZInc Alloy
Screw Nut Material

Brass, Nickel Plated
Seal

Black, NBR
Protection Rating

IP67(Mated)
Mating Cycles

≥500
Temperature Range

-25℃ ~ +80℃
Body Material

Nickel Plated, ZInc Alloy

 Screw Nut Material

Brass, Nickel Plated
Seal

Black, NBR

 Protection Rating

IP67(Mated)
Mating Cycles

≥500

 Temperature Range

-25℃ ~ +80℃

Contact Type

Contact Finish

Gold
Contact Material

Brass
Contact Termination

Solder Cup
Contact Finish

Gold

 Contact Material

Brass
Contact Termination

Solder Cup

Electrical Characteristics

Rated Current

4A
Rated Voltage

250V
Contact Resistance

≤5mΩ
Insulation Resistance

≥100MΩ
Rated Current

4A

 Rated Voltage

250V
Contact Resistance

≤5mΩ

 Insulation Resistance

≥100MΩ
Product Type

Key

D
Number of Positions

4 Pin
Gender

Female
Orientation

Body Material

Nickel Plated, ZInc Alloy
Screw Nut Material

Brass, Nickel Plated
Contact Finish

Gold
Contact Material

Brass
Contact Termination

Solder Cup
Insulation Material

TPU
Wire Gauge

22AWG/0.34mm²
Seal

Black, NBR
Shielding

Shielded
Protection Rating

IP67(Mated)
Rated Current

4A
Rated Voltage

250V
Contact Resistance

≤5mΩ
Insulation Resistance

≥100MΩ
Mating Cycles

≥500
Temperature Range

-25℃ ~ +80℃
