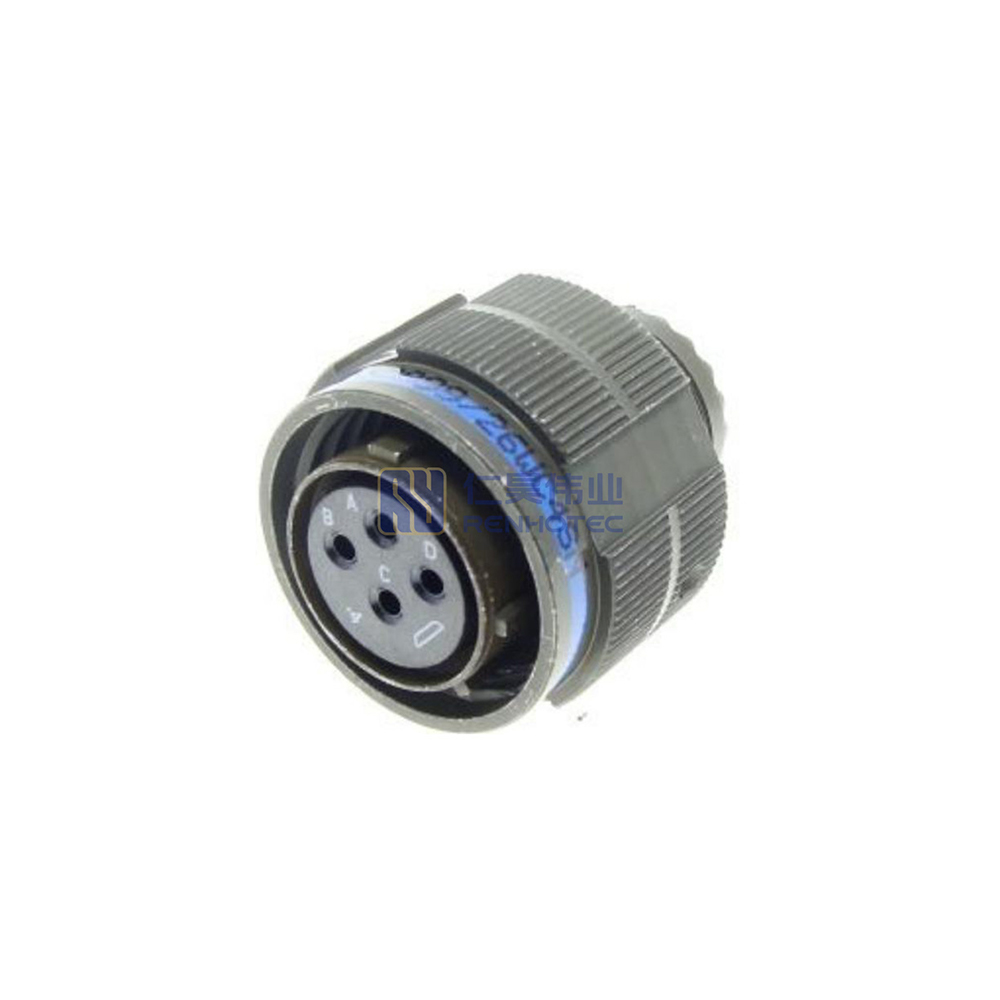

M Series Connectors
Are lightweight triplestart ratchet coupling type connectors designed for avionics, aerospace, Harsh Environment Connectors, security, motorsport and heavy duty applications.
MIL-DTL-D38999 Series III connectors are coupled by a quick screw Tri start thread, are scoop proof, and are best suited for normal mating and unmating applications and can be used in high temperature, moisture, wind, or vibration environments when used with the correct accessories.
Shell | A(max) | B Thread | C(max) |
---|---|---|---|
9 | 31.00 | M12*1-6g | 21.80 |
11 | 31.00 | M15*1-6g | 25.00 |
13 | 31.00 | M18*1-6g | 29.40 |
15 | 31.00 | M22*1-6g | 32.40 |
17 | 31.00 | M25*1-6g | 35.60 |
19 | 31.00 | M28*1-6g | 38.50 |
21 | 31.00 | M31*1-6g | 41.70 |
23 | 31.00 | M34*1-6g | 44.90 |
25 | 31.00 | M37*1-6g | 48.00 |
Series | MIL-DTL-38999 Series Ⅲ |
||
---|---|---|---|
Connector Type | Plug |
||
Number of Positions | 4 Pin |
||
Contact Arrangements | 13-4 |
||
Mounting Type | Cable Mount |
||
Contact Termination | Crimp |
||
Shell Finish | Olive Drab Cadmium |
||
Insulation Material | Thermoplastics |
||
Series | MIL-DTL-38999 Series Ⅲ |
Connector Type | Plug |
Number of Positions | 4 Pin |
Contact Arrangements | 13-4 |
Mounting Type | Cable Mount |
Contact Termination | Crimp |
Shell Finish | Olive Drab Cadmium |
Insulation Material | Thermoplastics |
Contact Type | |||
---|---|---|---|
Shell Size | |||
Key | N |
||
Shell Material | Aluminum Alloy |
||
Contact Material | Copper Alloy |
||
Contact Finish | Gold Plating |
||
Color | Olive Green |
||
Shielding | Shield |
||
Contact Type | Shell Size | ||
Key | N |
Shell Material | Aluminum Alloy |
Contact Material | Copper Alloy |
Contact Finish | Gold Plating |
Color | Olive Green |
Shielding | Shield |
Fastening Type | Threaded |
||
---|---|---|---|
Ingress Protection | IP67 |
||
Rated Current | 13A |
||
Operating Temperature | -65°C ~ + 175°C |
||
Fastening Type | Threaded |
Ingress Protection | IP67 |
Rated Current | 13A |
Operating Temperature | -65°C ~ + 175°C |
Series | MIL-DTL-38999 Series Ⅲ |
---|---|
Connector Type | Plug |
Contact Type | |
Number of Positions | 4 Pin |
Shell Size | |
Contact Arrangements | 13-4 |
Fastening Type | Threaded |
Mounting Type | Cable Mount |
Contact Termination | Crimp |
Key | N |
Shell Material | Aluminum Alloy |
Shell Finish | Olive Drab Cadmium |
Insulation Material | Thermoplastics |
Contact Material | Copper Alloy |
Contact Finish | Gold Plating |
Color | Olive Green |
Ingress Protection | IP67 |
Shielding | Shield |
Rated Current | 13A |
Operating Temperature | -65°C ~ + 175°C |
