Understanding Aviation Connectors: Anatomy, Coupling & Wiring Guide

This technical guide dives deeper into the structure, connection mechanisms, and wiring methods of aviation connectors.

Whether you are an engineer or a DIY enthusiast, understanding the difference between Male/Female plugs and the various coupling styles is crucial for a secure circuit connection.

Table of Contents

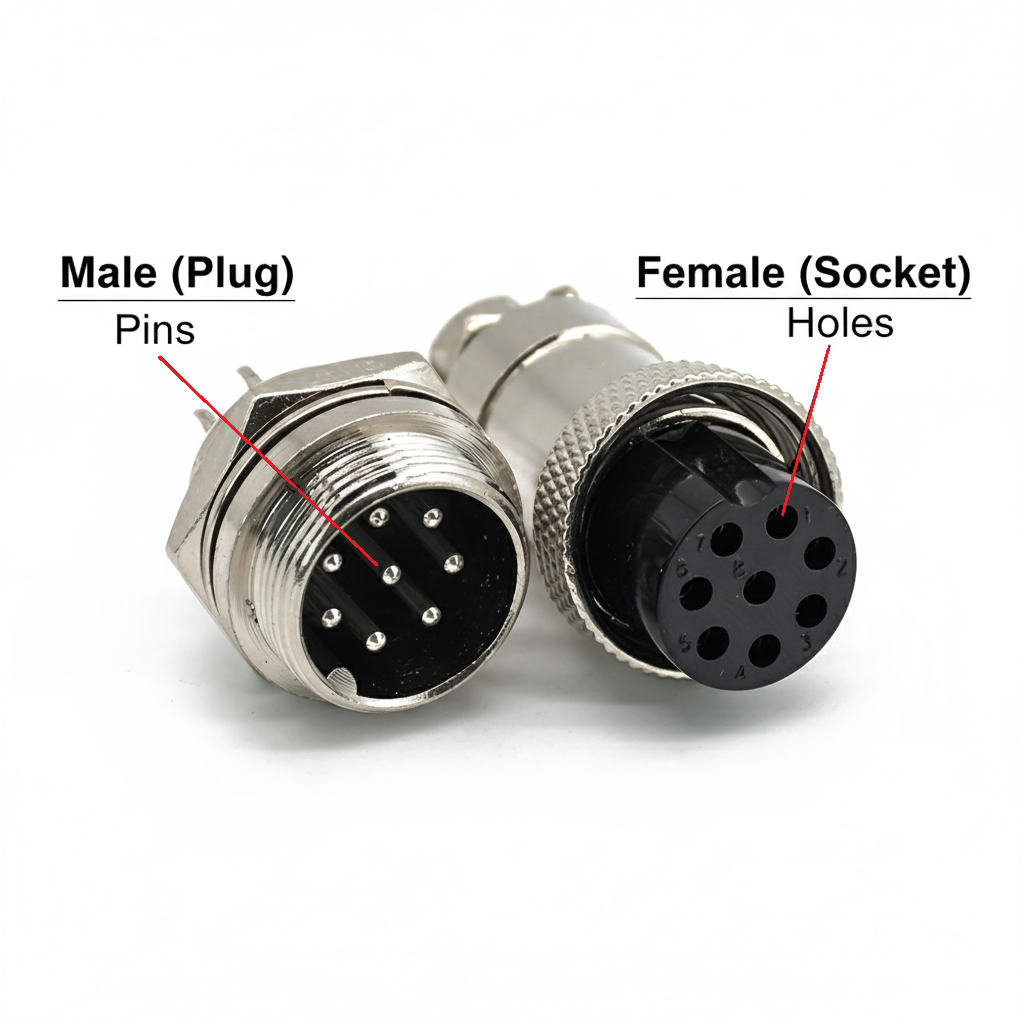

Anatomy: Plug vs. Socket (Male vs. Female)

Male (Plug): Contains the solid Pins. Usually installed on the cable end (Free Cable).

Female (Socket): Contains the hollow Holes (contacts). Usually installed on the panel/chassis (Panel Mount).

Aviation plugs, being instrumental connectors, find extensive utility in the realms of aviation, aerospace, and power, with an especially prolific application aboard aircraft. Embracing a metallic casing and screw fastening, they possess an innate capacity to automatically insert and secure resolutely, thus ensuring the veracity of their connections. The dimensions and core numbers of aviation plugs are subject to variation contingent upon their diverse purposes.

Aviation sockets, as maternal components of the connector system, boast corresponding orifices aligning with the pins or needles of aviation plugs. Typically affixed to panels or casings within aircraft, aviation sockets facilitate convenient interconnections, effectuating the transmission of signals, power, or data among linked devices. Their primary functions encompass signal transmission and power coupling, with available connection mechanisms such as push-pull self-locking and threaded rotary interfaces. Moreover, their protective grades span a gamut of distinctions, ranging from IP44 to IP69, dictating their adaptability to diverse environments and applications.

In summation, aviation plugs and sockets stand as symbiotic connector components, enacting a pivotal role within the realms of aviation, aerospace, and beyond. With utmost diligence, they safeguard the seamless operation and communicative dissemination of equipment, ensuring the fluidity of their function and interaction.

Common Connection Methods for Aviation Connector

Coupling Type	Description	Pros	Cons
Threaded Coupling	Connects by screwing a nut.	Most Secure. Excellent vibration resistance.	Slow to connect/disconnect.
Bayonet Coupling	Connects with a 1/3 turn and a “click”.	Fast. Reliable locking status (tactile feedback).	More expensive than threaded.
Push-Pull	Self-latches when pushed in.	Fastest. Ideal for blind mating or tight spaces.	Higher cost.

Which one should you choose?

For CNC machines or permanent installations, use Threaded (GX Series) because it’s cheap and won’t loosen.
For Test equipment where you plug/unplug 50 times a day, use Push-Pull or Bayonet.

Wiring & Termination Methods

Once you have the connector, how do you attach the wire?

Solder Termination (Most Common for GX Series)

This method involves melting solder to attach the wire to the contact cup.

Best for: Prototyping, low-volume production, and field repairs.
How to Solder:
1. Strip the wire insulation (approx 3mm).
2. “Tin” the exposed wire and the connector cup with solder.
3. Insert wire into the cup and heat until solder flows.
4. Slide heat-shrink tubing over the joint for insulation.

Crimp Termination

Uses a specialized tool to compress the contact around the wire.

Best for: High-volume industrial production and aerospace applications.
Advantage: More consistent quality than soldering; handles vibration better (wire won’t break at the solder joint).

Keying & Polarization

Uses a specialized tool to compress the contact around the wire.

Best for: High-volume industrial production and aerospace applications.
Advantage: More consistent quality than soldering; handles vibration better (wire won’t break at the solder joint).

How to Choose the Aviation Connector

Aviation plugs and sockets serve as crucial components in aircraft equipment, facilitating circuit connections. When selecting aviation plugs and sockets, it is imperative to consider the electrical parameters of the plugs themselves. Thus, the appropriate aviation plugs and sockets must be chosen and utilized correctly to ensure the reliability of the circuits.

The myriad types of aviation plugs cater to a wide range of applications. Therefore, making the right choices in aviation plugs is a pivotal aspect in enhancing their reliability. It is only through the concerted efforts of manufacturers and users that the full potential of aviation plugs can be harnessed.

Aviation plugs can be classified based on various criteria. According to frequency, there are high-frequency and low-frequency aviation plugs. Based on shape, there are circular connectors. In terms of application, there are aviation plugs for cabinets, audio devices, power supply, as well as specialized aviation plugs for specific purposes.

By thoughtfully considering the above factors and categories. One can choose the best aviation plugs and sockets to create a more reliable environment for aviation connections.
