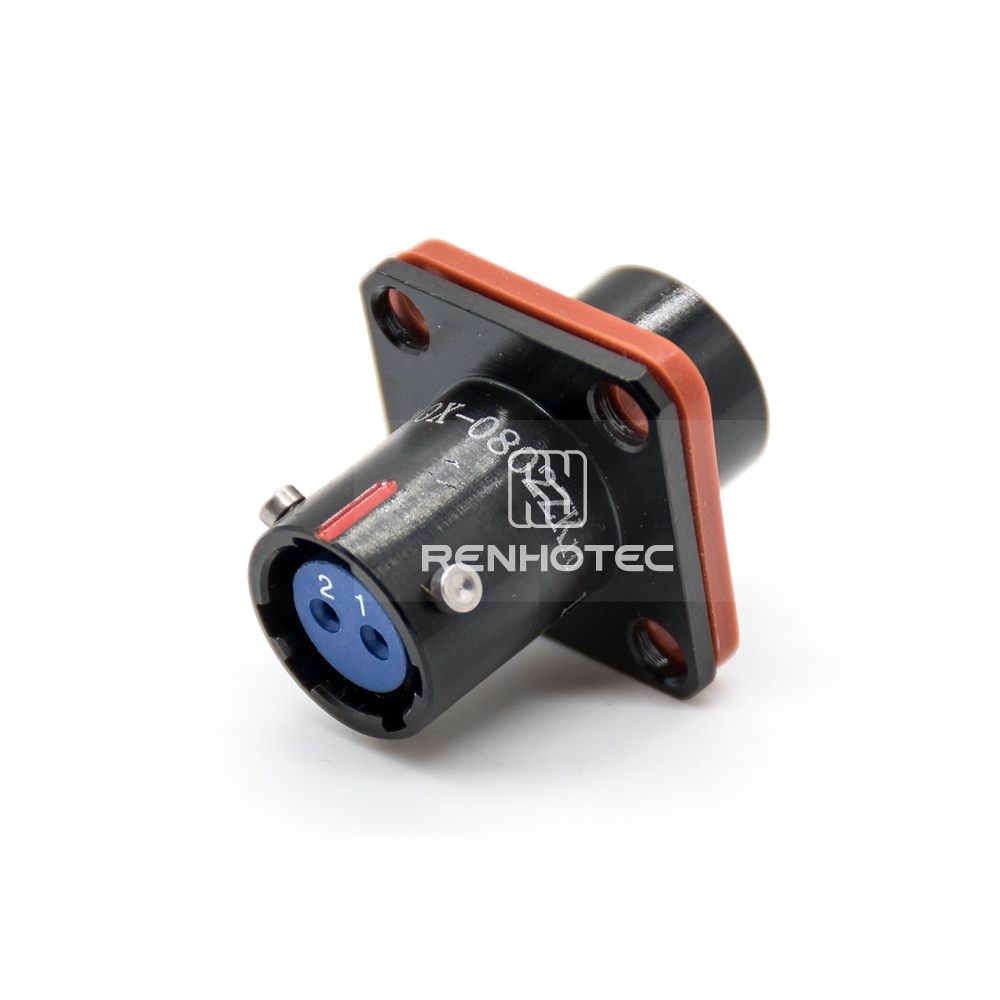

Y50X-0802ZK10 2 Pin Male Front Mount Square Flange Disc Socket

Part NO.: Y50X-0802ZK10 Category: Y50 Connector

Meets GJB101A-97, GJB598A-96 & MIL-C-26482 standards for military-grade reliability and compatibility.
Features a bayonet coupling mechanism for secure, quick mating and demating in high-vibration environments.
Compact design with high contact density; available with 2 to 26 contacts for versatile applications.
Withstands -55°C to +125°C, 48h salt spray, vibration, and 1000+ mating cycles for harsh environments.
Customizable with aluminum, copper alloy, or stainless steel shells; finishes include black anodized, olive drab, nickel plating, etc.

Description
Attributes

Y50 Series Circular Connectors Are Widely used in strategic and tactical systems, electronic countermeasures systems, field operation electric energy, communication signal connection systems, aerospace, aviation, navigation communication and test tracking systems, computer systems, post and telecommunications railway command systems, imported medical instruments and equipment and other electric energy, telecommunications signals close connection.

The cable outlet is equipped with various specifications of sealing rubber sheath, which can be closely matched with the cable line, which enhances the rainproof, waterproof, dustproof sealing and tensile performance of the plug. Contact parts welded, convenient and firm. Sockets are available in glue filling seals and glass sintered seals to suit different working environments.

Contact Resistance and Rated Current

Contact Specification (mm)	Contact Resistance (m Ω)	Rated Current（ A ）
?0.8	≤ 6	3
?1.0	≤ 5	5
?1.5	≤ 3	10
?2.0	≤ 2	20
?2.5	≤ 1.5	25

Rated Voltage, Withstand Voltage and Insulation Resistance

Working Environment	Rated Voltage (V)	Withstand Voltage (V)	Insulation Resistance (mΩ)
Atmospheric Temperature and Pressure	500	1500	≥ 3000
Damp-Heat	500	500	≥ 20
High Temperature	250		≥ 500
Low Pressure 4.39KPa	300	375	–

Application

Electrical equipment
Various instruments and meters
High-current power supply products

Series	Y50X
Connector Type	Socket
Orientation	Straight
Contact Type	Male Pin
Number of Positions	2 Pin
Shell Size	8
Fastening Type	Bayonet
Mounting Type	Panel Mount
Contact Termination	Solder
Shell Material	Aluminum Alloy
Shell Finish	Black Anodized
Contact Material	Copper Alloy
Contact Finish	Gold Plating
Color	Black
Ingress Protection	IP65
Rated Current	5A
Rated Voltage	500V
Operating Temperature	-55°C~+125°C
Insulation Material	Thermosetting Plastics
