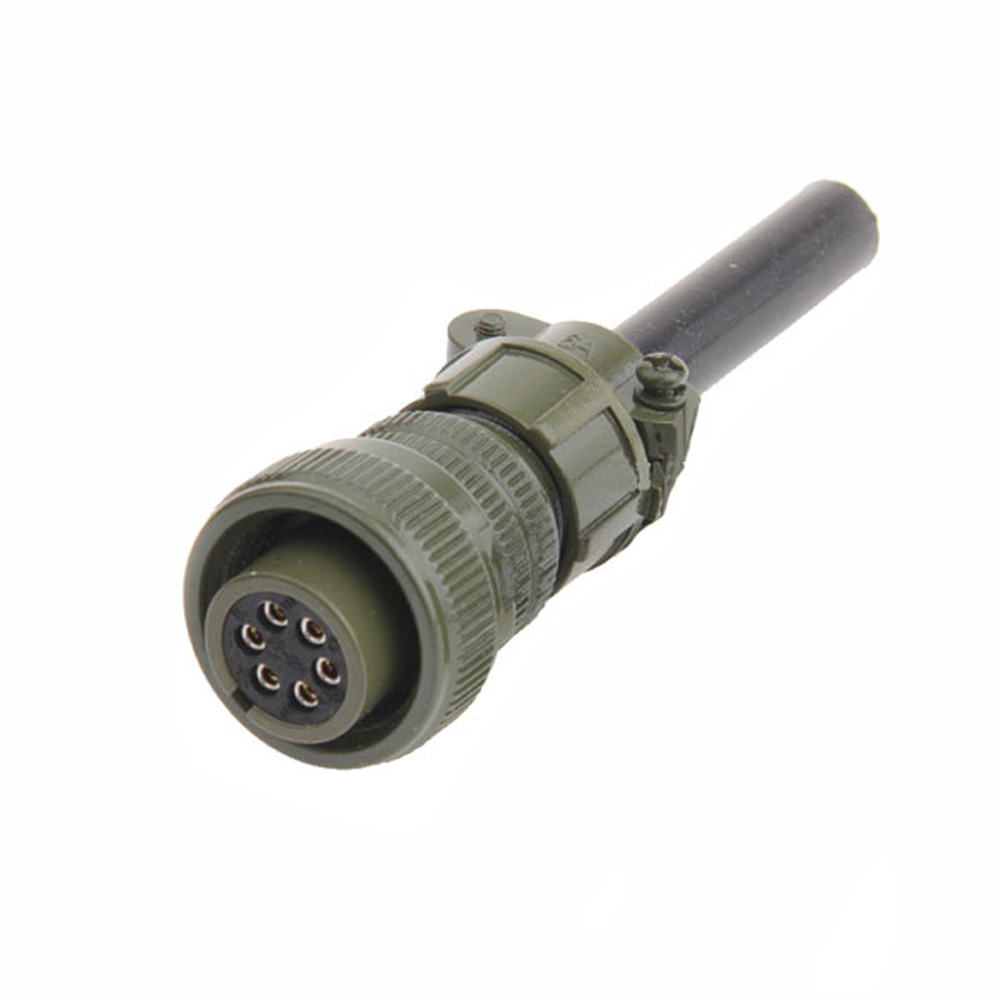

Threaded MS3106A 18-12P 6Pins Male Plug Solder Cup Connector

Part NO.: RHT-605-3879 Categories: , Tags: , , ,

The Threaded MS3106A 18-12P 6-Pins Male Plug Solder Cup Connector is a durable and reliable electrical connector designed for use in demanding environments. This connector features six solder cup pins, allowing for easy and secure wiring in various applications, including aerospace, military, and industrial settings.

Get a Quote

Mil-C-5015 series connectors conform to Mil-C-5015 standard (GJB600), with high strength Aluminum Alloy shell, Synthetic rubber insulator, threaded coupling, Alternate insert positioning, solder and crimping terminal, low cost, simple and practical design, widely used in industrial machinery and equipment, marine , automobile industry, instrument and servo motor etc. Our connectors can replace European and American similar products.

The Most Amazing Connector Yet Since in Renhotec Applications

The MS5015 series connectors are available in various plug and receptacle styles, including MS3100, MS3101, MS3102, MS3106, and MS3108.

MIL-C-5015, characterized by its threaded coupling, single key, and keyway polarization, embodies simplicity in design. They find extensive use in industrial machinery, defense ground support equipment, munitions, and maritime installations. The MIL-C-5015 connectors come in classes A, B, E/F, R, and also provide a variety of pre-earth connectors. Hence, Renhotec is your go-to place for finding the perfect connector that meets your specific conditions and performance requirements.

MS5015 connector

Product Assembly Diagram

Product Selling Points

Metal Plating
Copper pin with goldlsilver plating,strong conductivity,corrosion resistance,oxidation resistance.

Metal Shell
Aluminium alloy shell,strong wear-resistant,aging-resistant,not easy to deform.

Quick Connection
Threaded and bayonet connect,stable performance,long service life.

How to Order

How We Make Customized Products for You?

Application

The MS5015 is widely used in aviation, marine, computer, communication, navigation, transport, mechanical and electronic industries.

Product Type

Connector Type

Plug
Number of Positions

6Pin
Orientation

Straight
Shell Material

Aluminum Alloy
Insert Material

Copper Alloy
Connector Type

Plug

 Number of Positions

6Pin
Orientation

Straight

 Shell Material

Aluminum Alloy
Insert Material

Copper Alloy

Contact Type

Contact Type

Contact Termination

Solder Cup
Contact Material

Copper Alloy
Contact Type

Contact Termination

Solder Cup
Contact Material

Copper Alloy

Electrical Characteristics

Rated Voltage

500V
Rated Current

15A
Insulation Resistance

5,000 Mega ohms minimum (at 25°C)
Rated Voltage

500V

 Rated Current

15A
Insulation Resistance

5,000 Mega ohms minimum (at 25°C)

Mechanical Characteristics

Mechanical Operation

>500 Mating Cycles
Mechanical Operation

>500 Mating Cycles

Environmental Characteristics

Operating Temperature

-55°C ~ + 125°C
Ingress Protection

IP67
Operating Temperature

-55°C ~ + 125°C

 Ingress Protection

IP67
Connector Type

Plug
Contact Type

Number of Positions

6Pin
Orientation

Straight
Contact Termination

Solder Cup
Shell Material

Aluminum Alloy
Insert Material

Copper Alloy
Contact Material

Copper Alloy
Rated Voltage

500V
Rated Current

15A
Insulation Resistance

5,000 Mega ohms minimum (at 25°C)
Mechanical Operation

>500 Mating Cycles
Operating Temperature

-55°C ~ + 125°C
Ingress Protection

IP67

How To Order

MS 3102  A  18  10  P W XXX
  1     2    3    4    5   6  7   8

1. Connector Type

  • MS - designates Harsh Environment Connectors Standard
  • DS - Amphenol MIL- C-5015 Europe use

2. Connector Style

  • 3100- wall mounting receptacle
  • 3101- cable connecting receptacle
  • 3102- box mounting receptacle
  • 3106- straight plug
  • 3108- 90° Right angle plug

3. Service Class

  • A - General purpose, Solid Endbell
  • E - Environmental resisting, with grommet seal & strain relief back shell
  • F - Environmental resisting with grommet seal & strain relief back shell 3106F and 3108E style include a front ‘O’ ring seal
  • R - Environmental resisting with grommet seal, light weight and shorter Overall length 310R style include a front ‘O’ ring seal

4, 5. Shell size and insert arrangement

6. Contact Types

  • P- designates pin contact, (+) Male
  • S- designates socket contact, (-) Female

7. Insert Rotation No suffix-Normal

“W”, “X”, “Y”, or “Z”

8. Plating information

  • No suffix - Olive Drab Zinc
  • CD - Cadmium
  • C1 - Cobalt (Without +6 Cr)
  • 621 - Black Zinc
  • 689 - Electro-less Nickel
  • 426 - Electro-less Nickel & gold flash contacts
