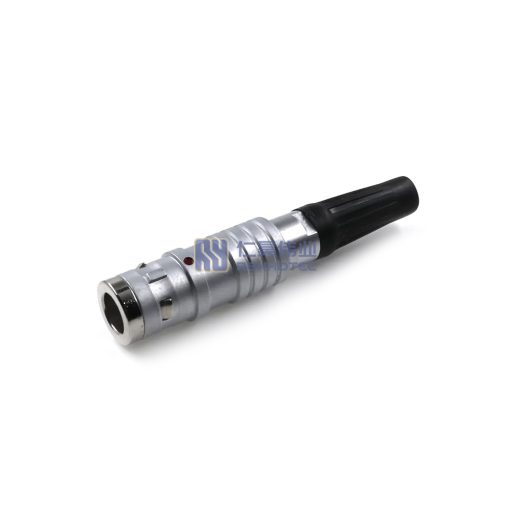

Push-Pull Circular Connector K Series FGG Plug with Collet Connector

Part NO.: FGG.CLAC62Z Categories: ,
Get a Quote

The push-pull self-locking system is famous for its simple and fast plug-in. It can effectively resist vibration and impact, and prevent disconnection caused by pulling the cable; It is absolutely safe and reliable to use, which is conducive to plug and unplugging in a very limited space.

The Most Amazing Connector Yet Since

Product Applications

Push Pull Connector on High Speed Camera

Product Shows

Product Type

Connector Type

Plug

Orientation

Straight

Mounting Type

Cable Mount

Shell Material

Copper Alloy

Insulation Material

PPS

Shielding Effect

> 80 dB at 1GHz, > 95 dB at 10MHz

Impact Resistance

100g 6ms

Humidity

Up to 95% at 60 ℃

Salt Spray Corrosion Test

> 144h

Environmental Experiment

50 / 175 / 21

Disinfection Resistance

-20 times( PSU), >100 times (PPSU), >200 times (PEEK)

Solvent Corrosion Resis

Average (PSU), Good (PPSU), Very Good (PEEK)

Leakage Rate (he) 1)

< 10-7mbar. L.s-1

Connector Type

Plug

Orientation

Straight

Mounting Type

Cable Mount

Shell Material

Copper Alloy

Insulation Material

PPS

Shielding Effect

> 80 dB at 1GHz, > 95 dB at 10MHz

Impact Resistance

100g 6ms

Humidity

Up to 95% at 60 ℃

Salt Spray Corrosion Test

> 144h

Environmental Experiment

50 / 175 / 21

Disinfection Resistance

-20 times( PSU), >100 times (PPSU), >200 times (PEEK)

Solvent Corrosion Resis

Average (PSU), Good (PPSU), Very Good (PEEK)

Leakage Rate (he) 1)

< 10-7mbar. L.s-1

Contact Type

Contact Type

Contact Termination

Solder

Contact Type

Contact Termination

Solder

Mechanical Characteristics

Mechanical Operation

> 5000 times

Mechanical Operation

> 5000 times

Performance

Anti Vibration Performance

10-2000Hz.15g

Anti Vibration Performance

10-2000Hz.15g

Environmental Characteristics

Ingress Protection

IP50

Ingress Protection

IP50

Watertight or Vacuum Seal Model

Temp Range

– 20 ° C, + 100 ° C(00 to 1b), – 20 ° C, + 80 ° C(2b to 5b)

Env Experiment

20 / 80 / 21

Temp Range

– 20 ° C, + 100 ° C(00 to 1b), – 20 ° C, + 80 ° C(2b to 5b)

Env Experiment

20 / 80 / 21

Plastic Housing Model

Temperature Range Plastic

-55°C ~ +150°C (PSU), -55°C ~ +180°C (PPSU), -55°C ~ +250°C (PEEK)

Temperature Range Plastic

-55°C ~ +150°C (PSU), -55°C ~ +180°C (PPSU), -55°C ~ +250°C (PEEK)

Metal Housing Model

Temperature Range Meta

-55°C ~ +250°C

Temperature Range Meta

-55°C ~ +250°C

Connector Type

Plug

Contact Type

Orientation

Straight

Contact Termination

Solder

Mounting Type

Cable Mount

Shell Material

Copper Alloy

Insulation Material

PPS

Mechanical Operation

> 5000 times

Shielding Effect

> 80 dB at 1GHz, > 95 dB at 10MHz

Anti Vibration Performance

10-2000Hz.15g

Impact Resistance

100g 6ms

Humidity

Up to 95% at 60 ℃

Salt Spray Corrosion Test

> 144h

Ingress Protection

IP50

Environmental Experiment

50 / 175 / 21

Disinfection Resistance

-20 times( PSU), >100 times (PPSU), >200 times (PEEK)

Solvent Corrosion Resis

Average (PSU), Good (PPSU), Very Good (PEEK)

Temp Range

– 20 ° C, + 100 ° C(00 to 1b), – 20 ° C, + 80 ° C(2b to 5b)

Leakage Rate (he) 1)

< 10-7mbar. L.s-1

Temperature Range Plastic

-55°C ~ +150°C (PSU), -55°C ~ +180°C (PPSU), -55°C ~ +250°C (PEEK)

Env Experiment

20 / 80 / 21

Temperature Range Meta

-55°C ~ +250°C

Part Number System

Push Pull Internal Components
