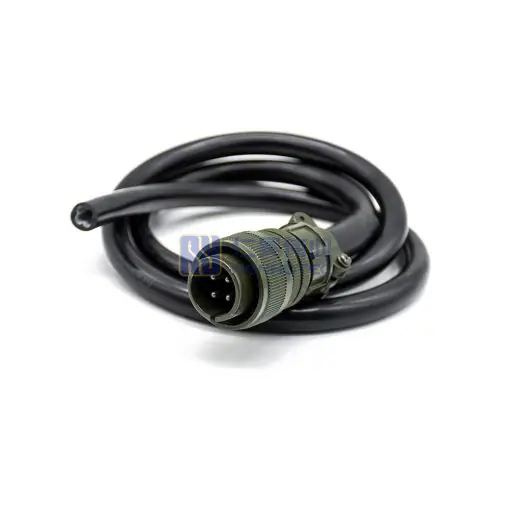

MS3106A18-4P MS5015 Circular MIL Spec Cable

  • Strong waterproof performance.
  • High withstanding voltage, high reliability.
  • Corrosion resistance, hard dielectric inserts.
  • Good electrical conductivity mechanical strength.



Get Quotation

Mil-C-5015 series connectors conform to US military Mil-C-5015 standard (GJB600), with high strength Aluminum Alloy shell, Synthetic rubber insulator, threaded coupling, Alternate insert positioning, solder and crimping terminal, low cost, simple and practical design, widely used in industrial machinery and equipment, military, defense equipment, marine, automobile industry, instrument, and servo motor, etc. Our connectors can replace European and American similar products.



The Most Amazing Connector Yet Since in RENHOTEC

Factory real shot

Application

Basic Attributes

Connector Type

3106

Shell Size

Contact Type

Male Pin

Number of Positions

1-64Pin

Connection Type

Cable Plug

Orientation

Straight

Shell Material

Aluminum Alloy

Insert Material

Copper Alloy

Contact Material

PPS Plastic, Silicone Rubber

Performance

Fastening Type

Threaded

Rated Voltage

250V(High Temperature), 500V(Normal Temperature)

Rated Current

13A for 16AWG, 150A for 0AWG, 23A for 12AWG, 46A for 8AWG, 80A for 4AWG

Insulation Resistance

5,000 Mega ohms minimum (at 25°C)

Mechanical Operation

>500 Mating Cycles

Operating Temperature

-55°C ~ + 125°C

Ingress Protection

IP67

Connector Type

3106

Shell Size

Contact Type

Male Pin

Number of Positions

1-64Pin

Connection Type

Cable Plug

Orientation

Straight

Fastening Type

Threaded

Shell Material

Aluminum Alloy

Insert Material

Copper Alloy

Contact Material

PPS Plastic, Silicone Rubber

Rated Voltage

250V(High Temperature), 500V(Normal Temperature)

Rated Current

13A for 16AWG, 150A for 0AWG, 23A for 12AWG, 46A for 8AWG, 80A for 4AWG

Insulation Resistance

5,000 Mega ohms minimum (at 25°C)

Mechanical Operation

>500 Mating Cycles

Operating Temperature

-55°C ~ + 125°C

Ingress Protection

IP67

How To Order

MS

3102  A  18  10  P

W

XXX

  1

    2    3    4    5   6

 7

  8

1. Connector Type

  • MS - designates Military Standard
  • DS - Amphenol MIL- C-5015 Europe use

2. Connector Style

  • 3100- wall mounting receptacle
  • 3101- cable connecting plug
  • 3102- box mounting receptacle
  • 3106- straight plug
  • 3108- 90° Right angle plug

3. Service Class

  • A - General purpose, Solid Endbell
  • E - Environmental resisting, with grommet seal & strain relief back shell
  • F - Environmental resisting with grommet seal & strain relief back shell
    3106F and 3108E style include a front ‘O’ ring seal
  • R - Environmental resisting with grommet seal, light weight and shorter
    Overall length 310R style include a front ‘O’ ring seal

4, 5. Shell size and insert arrangement

6. Contact Types

  • P- designates pin contact, (+) Male
    S- designates socket contact, (-) Female

7. Insert Rotation No suffix-Normal

  • “W”, “X”, “Y”, or “Z”

8. Plating information

  • No suffix - Olive Drab Zinc
    CD - Cadmium
    C1 - Cobalt (Without +6 Cr)
    621 - Black Zinc
    689 - Electro-less Nickel
    426 - Electro-less Nickel & gold flash contacts
