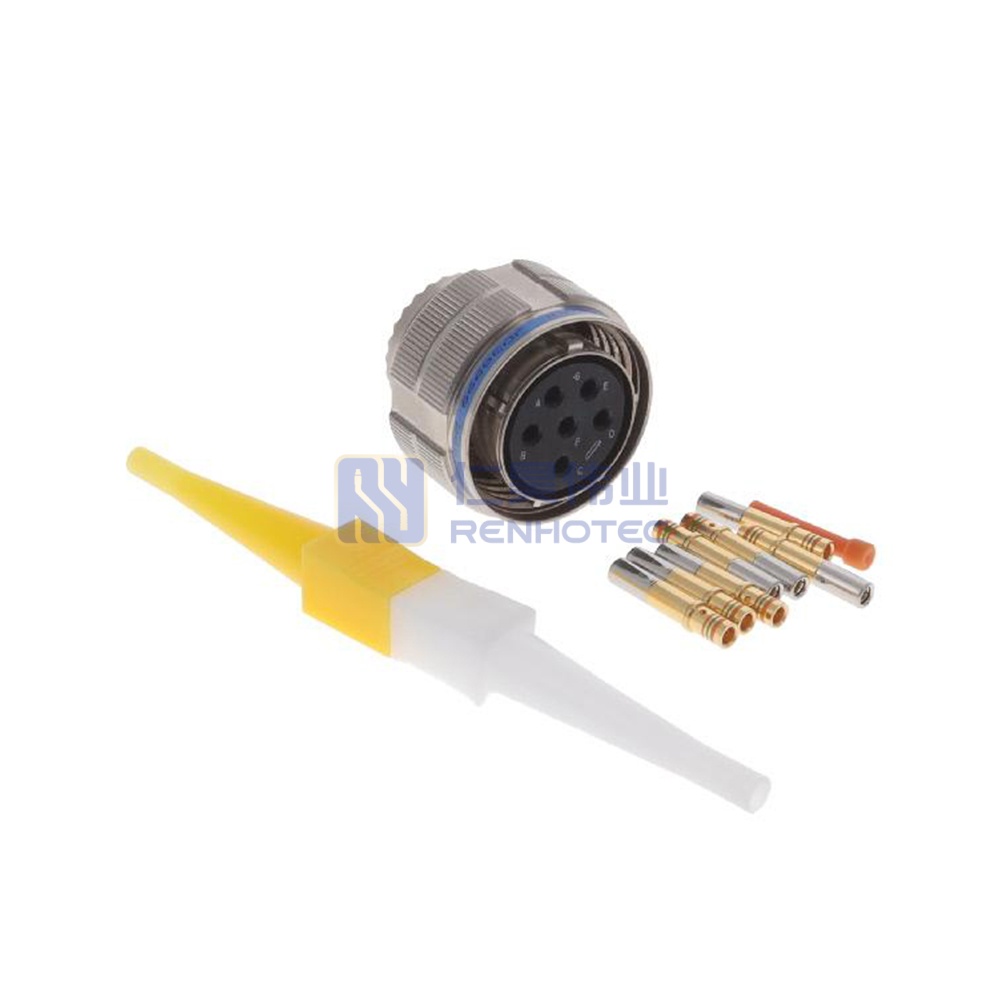

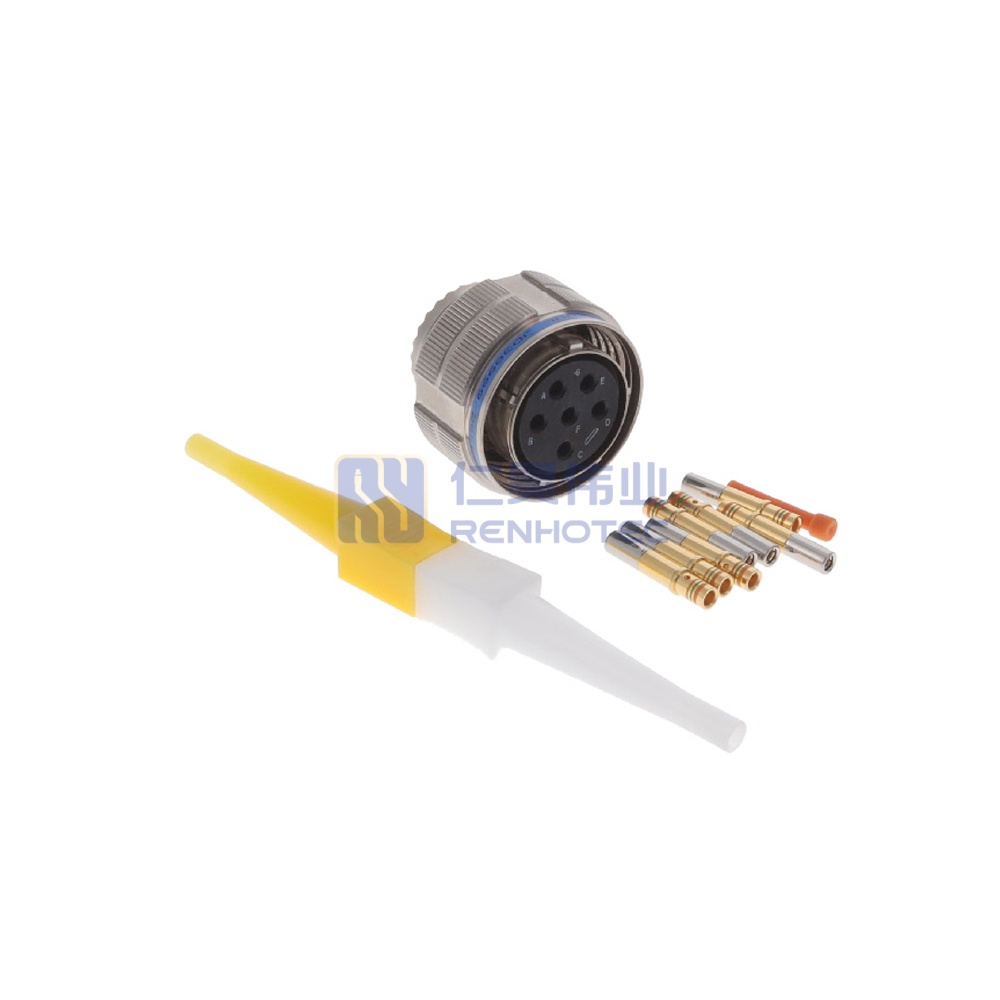

MIL-DTL-38999 Series III Connector, D38999/26FE6SN Female Plug, No.17 Shell 6 Pin Crimp, Nickel, N Orientation

Part NO.: D38999/26FE6SN Categories: MIL-DTL-D38999 Series III, MIL-DTL-D38999 Connector

D38999-26FE6SN D38999 Connector Specs & Datasheet

Standards The MIL-DTL-38999. Comes with crimping pins and contact tool.
Coupling Options. The D38999 connector series is available in bayonet, breech, and threaded options.
Ruggedization. MIL-DTL-38999 connectors are highly rugged and designed to be resistant to shock, vibration, harsh environments, and temperature extremes.

Alternative Part Number

Manufacturer	Part Number
Souriau	8D5-17F6SN

Description
Attributes

MIL-DTL-D38999 Series III connectors are coupled by a quick screw Tri start thread, are scoop proof, and are best suited for normal mating and unmating applications and can be used in high temperature, moisture, wind, or vibration environments when used with the correct accessories.

Square Flange Receptacle (D38999/20)

Shell	A (max)	B (max)	C (max)	D Thread	E	F	G	H	J	d1 (min)	d2 (min)
9	20.90	10.60	2.50	M12*1-6g	23.80	18.26	15.09	3.25	5.49	16.66	13.11
11	20.90	10.60	2.50	M15*1-6g	26.20	20.62	18.26	3.25	4.93	20.22	15.88
13	20.90	10.60	2.50	M18*1-6g	28.60	23.01	20.62	3.25	4.93	23.42	19.05
15	20.90	10.60	2.50	M22*1-6g	31.00	24.61	23.01	3.25	4.39	26.59	23.01
17	20.90	10.60	2.50	M25*1-6g	33.30	26.97	24.61	3.25	4.93	30.96	25.81
19	20.90	10.60	2.50	M28*1-6g	36.50	29.36	26.97	3.25	4.93	32.94	28.98
21	20.10	11.40	3.20	M31*1-6g	39.70	31.75	29.36	3.25	4.93	36.12	32.16
23	20.10	11.40	3.20	M34*1-6g	42.90	34.93	31.75	3.91	6.15	39.29	34.93
25	20.10	11.40	3.20	M37*1-6g	46.00	38.10	34.93	3.91	6.15	42.47	37.69

The 38999 specification defines families of shells that intermate to protect from vibration, shock, and moisture. MIL-DTL-38999 connectors attach cables to electronics boxes in various applications, including vehicles, ships, planes, and handheld equipment. They are also available for many non-Harsh Environment Connectors robust applications, such as the transportation and robust equipment markets.

How to Order

Basic Attributes

MPN	d38999/26fe6sn
Key	N
MPN	d38999/26fe6sn	Key	N

Product Type

Series	MIL-DTL-38999 Series Ⅲ
Connector Type	Plug
Orientation	Straight
Number of Positions	6
Shell Size	17
Fastening Type	Thread
Shell Material	Aluminum Alloy
Shell Finish	Cadmium olive drab
Insulation Material	PPS
Shielding	Shield
Series	MIL-DTL-38999 Series Ⅲ	Connector Type	Plug
Orientation	Straight	Number of Positions	6
Shell Size	17	Fastening Type	Thread
Shell Material	Aluminum Alloy	Shell Finish	Cadmium olive drab
Insulation Material	PPS	Shielding	Shield

Contact Type

Contact Type	Female
Contact Termination	Crimp
Contact Material	Copper Alloy
Contact Finish	Gold
Contact Type	Female	Contact Termination	Crimp
Contact Material	Copper Alloy	Contact Finish	Gold

Contact Layout	6月17日
Mount Type	Cable
Shell Color	Olive Drab
Protection Rating	IP67
Contact Layout	6月17日	Mount Type	Cable
Shell Color	Olive Drab	Protection Rating	IP67

Electrical Characteristics

Rated Current	5A
Rated Current	5A

Environmental Characteristics

Operating Temperature	-65℃ to +175℃
Operating Temperature	-65℃ to +175℃

MPN	d38999/26fe6sn
Series	MIL-DTL-38999 Series Ⅲ
Connector Type	Plug
Orientation	Straight
Contact Type	Female
Number of Positions	6
Shell Size	17
Contact Layout	6月17日
Fastening Type	Thread
Mount Type	Cable
Contact Termination	Crimp
Key	N
Shell Material	Aluminum Alloy
Shell Finish	Cadmium olive drab
Insulation Material	PPS
Contact Material	Copper Alloy
Contact Finish	Gold
Shell Color	Olive Drab
Protection Rating	IP67
Shielding	Shield
Rated Current	5A
Operating Temperature	-65℃ to +175℃
