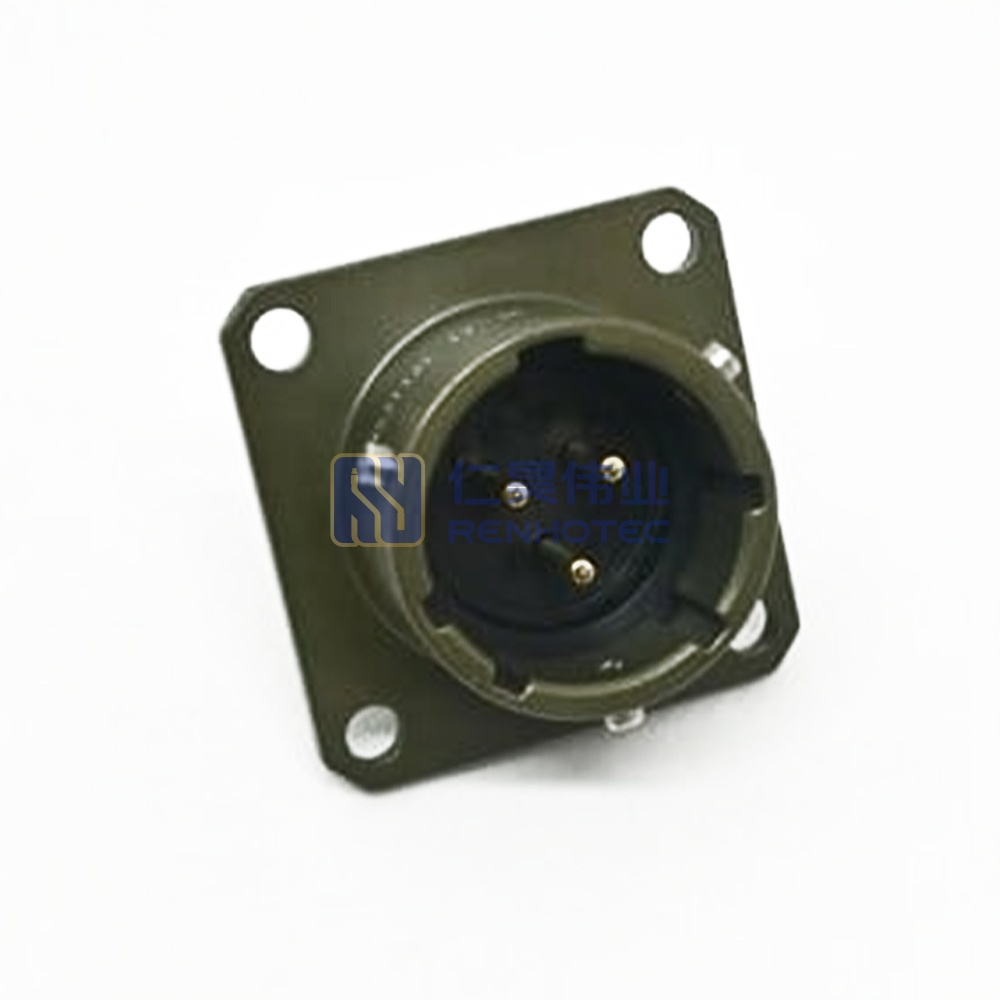

MIL-DTL-26482 MS3112E-12-3P Male Box Mounting Receptacle, No.12 Shell 3Pin, PT02E-12-3P

MIL-DTL-26482 connector, also known as the MIL-C-26482 connector, is a circular connector extensively utilized in aviation, aerospace, Harsh Environment Connectors, and various other industrial domains. It boasts a wide array of pin configurations and can withstand high current loads. The series features heavy-duty connectors with solder contacts and bayonet or “quick-disconnect” coupling.

MIL-DTL-26482 Connectors Specification

MIL-DTL-26482 is a circular, flat-to-flat electrical connector specification established by the United States Harsh Environment Connectors. The specification defines three types of connectors, namely Type I, Type II, and Type III, which are categorized as standard, medium, and heavy-duty, respectively.

Shell Style

Class

A – Genneral duty , threaded back shell

E – Environmental without Clamp (Except on MS3112)

F – Grommet seal with strain relief

J – Environmental with Clamp and Cable Jacket Gland Seal (MS3116 only)

P – Potting seal

Application

• Aerospace
• Harsh Environment Connectors
• Automobile
• Medical equipment
• Industrial control and monitoring
