M Series Connectors
Are lightweight triplestart ratchet coupling type connectors designed for avionics, aerospace, Harsh Environment Connectors, security, motorsport and heavy duty applications.
M9 connectors plug are available in assembly, overmolded cable type, and receptacles are available in Front Mount Solder Type, Back Mount Solder Type, and PCB board type. Most M9 connectors are excellent in full 360 degree shielding. M9 conector is a type of circular connector that is commonly used in electronic devices, such as headphones, microphones, and other small appliances. It is smaller than the M8 connector, but its size can vary depending on the application.
M9 series conector with IP67 rating, provides with 2, 3, 4, 5, 6, 7, 8 contacts, different pin match specific applications.
We have M5/M8/M9/M12/M16/7/8/M23 connector for M connector cables. There are panel mount connector, assembly connector, molding cable connector. According to materials, we have plastic type and metal type.
Yes, single-ended and double-ended all are available.
Yes, Shielded and non-shielded version are available.
0.5m or 1m, other cable length you need is also supported.
Yes, Customized cable length, with PUR, PVC, LSZH, EtherNet, profinet, and different color.
Customer
I need M12 3Pin A coded, male to male double-ended, shielded PUR green, 1m molded cable.
Renhotec Pro
Sure. We're confirming your requirement and sending you the best quotation.

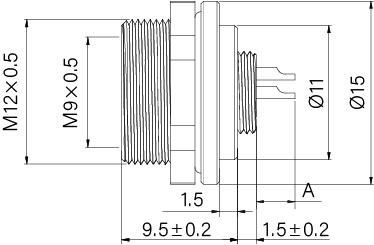

Connector Type | Socket |
---|---|
Contact Type | Female Pin |
Orientation | Straight |
Number of Positions | 2 Pin, 3 Pin, 4 Pin, 5 Pin, 6 Pin, 7 Pin, 8 Pin |
Key | A |
Contact Termination | Solder Cup |
Mounting Feature | Front Fastened |
Shielding | Unshielded |
Shell Size | |
Shell Material | Copper Alloy |
Shell Finish | Zinc Plating |
Insulation Material | PA66 |
Contact Material | Copper Alloy |
Contact Finish | Gold Plating |
Mounting Type | Panel Mount |
Fastening Type | Threaded |
---|---|
Mechanical Operation | >500 Mating Cycles |
Operating Temperature | -25°C ~ + 85°C |
Ingress Protection | IP67 |
Connector Type | Socket |
---|---|
Contact Type | Female Pin |
Orientation | Straight |
Number of Positions | 2 Pin, 3 Pin, 4 Pin, 5 Pin, 6 Pin, 7 Pin, 8 Pin |
Key | A |
Contact Termination | Solder Cup |
Mounting Feature | Front Fastened |
Shielding | Unshielded |
Shell Size | |
Shell Material | Copper Alloy |
Shell Finish | Zinc Plating |
Insulation Material | PA66 |
Contact Material | Copper Alloy |
Contact Finish | Gold Plating |
Fastening Type | Threaded |
Mechanical Operation | >500 Mating Cycles |
Operating Temperature | -25°C ~ + 85°C |
Ingress Protection | IP67 |
Mounting Type | Panel Mount |
