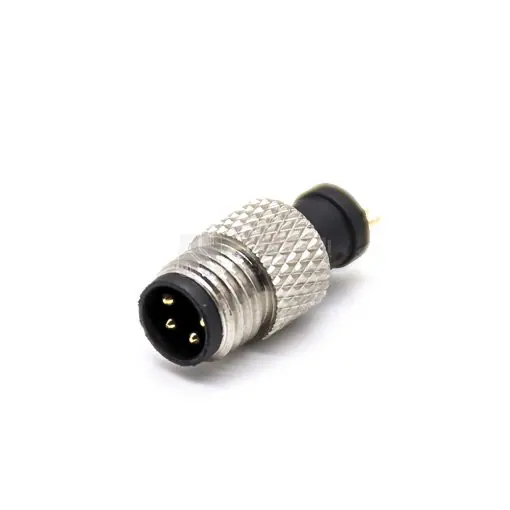

M8 Male 4 Pos Plug Molding Metal Accessories Circular Connector

Part NO.: RHT-634-1274 Categories: , Tags: , , , ,

The M8 Male 4 Pos Plug Molding Metal Accessories Circular Connector is a robust and compact electrical connector designed for reliable connections in industrial and automation applications. Featuring a four-position design, it allows for easy and secure connections in tight spaces. The metal construction ensures durability and protection against environmental factors, making it suitable for harsh conditions.

Get a Quote

Features of the M8 Field Wireable Connector

M8 field mount connectors are an efficient, compact and reliable connection solution. Designed to meet the needs of a variety of industrial environments. The connectors are available in a variety of core options, including 3 pin, 4 pin, 5 pin, 6 pin and 8 pin versions, to meet a wide range of electrical connection needs.

M8 connectors come in metal and plastic. Metal housings, robust and corrosion-resistant, suit harsh industrial environments, while lightweight, cost-effective plastic ones fit general industrial applications. Both are IP67 rated for dust and water resistance.

M8 connectors also offer straight and right-angle options to accommodate installation space and wiring needs. Straight connectors are ideal for limited spaces, and right-angle connectors for constrained spaces or specific angled wiring requirements.

M8 Connector Application

Common applications for the M8 connector include actuators, PLCs, I/O boxes, sensors, food and beverage processing switches, machine building, rubber and plastics, textile and printing presses, and HVAC system valves.

M8 application

Frequently Asked Questions

What are the available types of the M series connector cable?

We have M5/M8/M9/M12/M16/7/8/M23 connector for M connector cables. There are panel mount connector, assembly connector, molding cable connector. According to materials, we have plastic type and metal type.

The pins number of our M series connector

M5: 2Pin, 3Pin, 4Pin
M8: 2 Pin, 3Pin, 4Pin, 5Pin, 6Pin, 8Pin
M9: 2Pin, 3Pin, 4Pin, 5Pin, 6Pin, 7Pin, 8Pin
M12: 2Pin, 3Pin, 4Pin, 5Pin, 6Pin, 8Pin, 12Pin, 17Pin
M16: 2Pin, 3Pin, 4Pin, 5Pin, 6Pin, 7Pin, 8Pin, 12Pin, 14Pin, 16Pin, 19Pin, 24Pin
7/8: 3Pin, 4Pin, 5Pin, 6Pin
M23: 6Pin, 7Pin, 8Pin, 9Pin, 12Pin, 16Pin, 17Pin, 19Pin

Yes, single-ended and double-ended all are available.

Single Ended Cable

Double Ended Cable

Yes, Shielded and non-shielded version are available.

0.5m or 1m, other cable length you need is also supported.



Yes, Customized cable length, with PUR, PVC, LSZH, EtherNet, profinet, and different color.

Customer
I need M12 3Pin A coded, male to male double-ended, shielded PUR green, 1m molded cable.

Renhotec Pro
Sure. We're confirming your requirement and sending you the best quotation.

Customization Samples

M12 to M12

  • Male to Female plastic plug
  • 1.0m length purple cable
  • IP68 rate waterproof design

M12 to USB RJ45

  • 12Pin Male to 4 Plugs
  • IP68 Rate Waterproof
  • 1.0m Length High Durable cable

M8 to M8

  • 3Pin Female to Female
  • 0.3m length metal cable
  • Rgith Angled Connector

M12 to M12

  • 12Pin Male to 2 Female
  • 1.0m length PVC cable
  • IP67 Rate Waterproof

Product Type

Connector Type

Plug
Number of Positions

4Pin
Orientation

Straight
Mounting Type

Cable Mount
Shielding

Unshielded
Shell Size

Connector Type

Plug

 Number of Positions

4Pin
Orientation

Straight

 Mounting Type

Cable Mount
Shielding

Unshielded

 Shell Size

Contact Type

Contact Type

Contact Material

Copper Alloy
Contact Finish

Gold Plating
Contact Type

Contact Material

Copper Alloy
Contact Finish

Gold Plating

Environmental Characteristics

Operating Temperature

-20°C ~ + 85°C
Protection Grade

IP67
Operating Temperature

-20°C ~ + 85°C

 Protection Grade

IP67

Electrical Characteristics

Rated Current

4A
Rated Voltage

60V
Insulation Resistance

≥100 MΩ
Contacts resistance

≤5MΩ
Rated Current

4A

 Rated Voltage

60V
Insulation Resistance

≥100 MΩ

 Contacts resistance

≤5MΩ

Mechanical Characteristics

Mechanical Operation

>500 Mating Cycles
Mechanical Operation

>500 Mating Cycles
Connector Type

Plug
Contact Type

Number of Positions

4Pin
Orientation

Straight
Mounting Type

Cable Mount
Shielding

Unshielded
Shell Size

Contact Material

Copper Alloy
Contact Finish

Gold Plating
Operating Temperature

-20°C ~ + 85°C
Protection Grade

IP67
Rated Current

4A
Rated Voltage

60V
Insulation Resistance

≥100 MΩ
Mechanical Operation

>500 Mating Cycles
Contacts resistance

≤5MΩ

M8 Male Pinout Drawing

M8 Female Pinout Drawing
