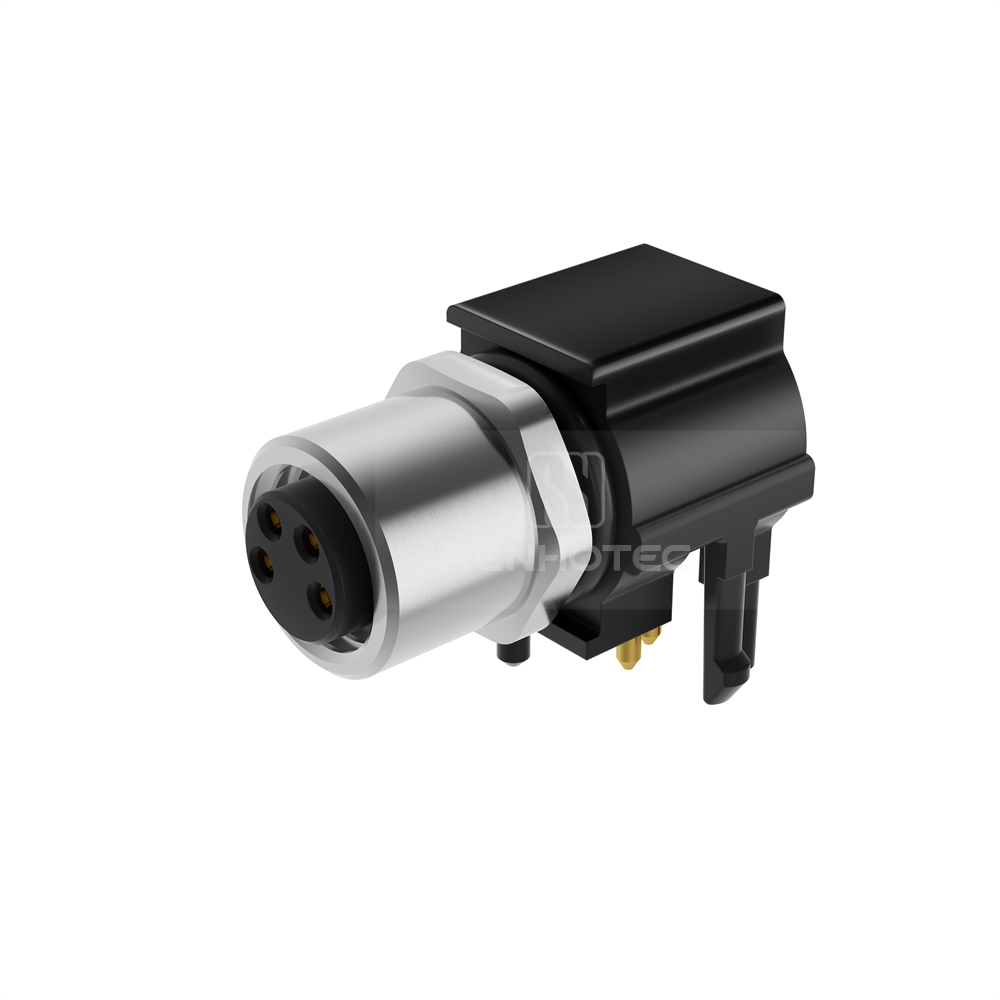

M8 Female Right Angle PCB Type Back Fastened Connector (Plastic Rack)

Part NO.: Universal Categories: , Tag:
Get a Quote

M8 connector can have 3, 4, 5, or 8 pins, different pin match specific applications. M8 Panel Receptacle series provides three kinds of mount choice: PCB Mount, Panel Mount & Cable, and have three features of mount: Front Mount, Back Mount, 4 Hole Flange. According to IEC 61076-2-101/104 standard.

Features of the M8 Panel Receptacle

Solder Type

This type of socket design helps to create a stable and long-lasting electrical connection, and is especially suitable for application scenarios that require a long-term, stable electrical connection. Solder wire sockets are typically used for fixed devices such as sensors, controllers, and other equipment, and offer the benefits of a stable connection that is jitter and looseness resistant.

PCB Type

This socket design makes assembly and maintenance quick and easy because you can plug the socket directly into or out of the board without soldering. Plug-in receptacles are ideal for equipment that requires frequent replacement or repair, or for applications that require quick installation in tight spaces.

M8 Connector Application

Common applications for the M8 connector include actuators, PLCs, I/O boxes, sensors, food and beverage processing switches, machine building, rubber and plastics, textile and printing presses, and HVAC system valves.

M8 application

Frequently Asked Questions

What are the available types of the M series connector cable?

We have M5/M8/M9/M12/M16/7/8/M23 connector for M connector cables. There are panel mount connector, assembly connector, molding cable connector. According to materials, we have plastic type and metal type.

The pins number of our M series connector

M5: 2Pin, 3Pin, 4Pin
M8: 2 Pin, 3Pin, 4Pin, 5Pin, 6Pin, 8Pin
M9: 2Pin, 3Pin, 4Pin, 5Pin, 6Pin, 7Pin, 8Pin
M12: 2Pin, 3Pin, 4Pin, 5Pin, 6Pin, 8Pin, 12Pin, 17Pin
M16: 2Pin, 3Pin, 4Pin, 5Pin, 6Pin, 7Pin, 8Pin, 12Pin, 14Pin, 16Pin, 19Pin, 24Pin
7/8: 3Pin, 4Pin, 5Pin, 6Pin
M23: 6Pin, 7Pin, 8Pin, 9Pin, 12Pin, 16Pin, 17Pin, 19Pin

Yes, single-ended and double-ended all are available.

Single Ended Cable

Double Ended Cable

Yes, Shielded and non-shielded version are available.

0.5m or 1m, other cable length you need is also supported.



Yes, Customized cable length, with PUR, PVC, LSZH, EtherNet, profinet, and different color.

Customer
I need M12 3Pin A coded, male to male double-ended, shielded PUR green, 1m molded cable.

Renhotec Pro
Sure. We're confirming your requirement and sending you the best quotation.

Customization Samples

M12 to M12

  • Male to Female plastic plug
  • 1.0m length purple cable
  • IP68 rate waterproof design

M12 to USB RJ45

  • 12Pin Male to 4 Plugs
  • IP68 Rate Waterproof
  • 1.0m Length High Durable cable

M8 to M8

  • 3Pin Female to Female
  • 0.3m length metal cable
  • Rgith Angled Connector

M12 to M12

  • 12Pin Male to 2 Female
  • 1.0m length PVC cable
  • IP67 Rate Waterproof

Product Type

Connector Type

Socket
Orientation

Right Angle
Number of Positions

3 Pin, 4 Pin, 5 Pin, 6 Pin, 8 Pin
Mounting Type

Panel Mount
Mounting Feature

Back Fastened
Shielding

Unshielded
Shell Size

Shell Material

PA66+GF
Shell Finish

Zinc Plating
Insulation Material

PA66
Fastening Type

Threaded
Connector Type

Socket

 Orientation

Right Angle
Number of Positions

3 Pin, 4 Pin, 5 Pin, 6 Pin, 8 Pin

 Mounting Type

Panel Mount
Mounting Feature

Back Fastened

 Shielding

Unshielded
Shell Size

Shell Material

PA66+GF
Shell Finish

Zinc Plating

 Insulation Material

PA66
Fastening Type

Threaded

Contact Type

Contact Type

Contact Termination

Through Hole
Contact Material

Copper Alloy
Contact Finish

Gold Plating
Contact Type

Contact Termination

Through Hole
Contact Material

Copper Alloy

 Contact Finish

Gold Plating

Basic Attributes

Key

A, B
Key

A, B

Electrical Characteristics

Rated Current

4A
Rated Voltage

250V
Rated Current

4A

 Rated Voltage

250V

Mechanical Characteristics

Mechanical Operation

＞500 Mating Cycles
Mechanical Operation

＞500 Mating Cycles

Environmental Characteristics

Operating Temperature

-25°C ~ + 85°C
Ingress Protection

IP67
Operating Temperature

-25°C ~ + 85°C

 Ingress Protection

IP67
Connector Type

Socket
Contact Type

Orientation

Right Angle
Key

A, B
Number of Positions

3 Pin, 4 Pin, 5 Pin, 6 Pin, 8 Pin
Contact Termination

Through Hole
Mounting Type

Panel Mount
Mounting Feature

Back Fastened
Shielding

Unshielded
Shell Size

Shell Material

PA66+GF
Shell Finish

Zinc Plating
Insulation Material

PA66
Contact Material

Copper Alloy
Contact Finish

Gold Plating
Fastening Type

Threaded
Rated Current

4A
Rated Voltage

250V
Mechanical Operation

＞500 Mating Cycles
Operating Temperature

-25°C ~ + 85°C
Ingress Protection

IP67

M8 Male Pinout Drawing

M8 Female Pinout Drawing
