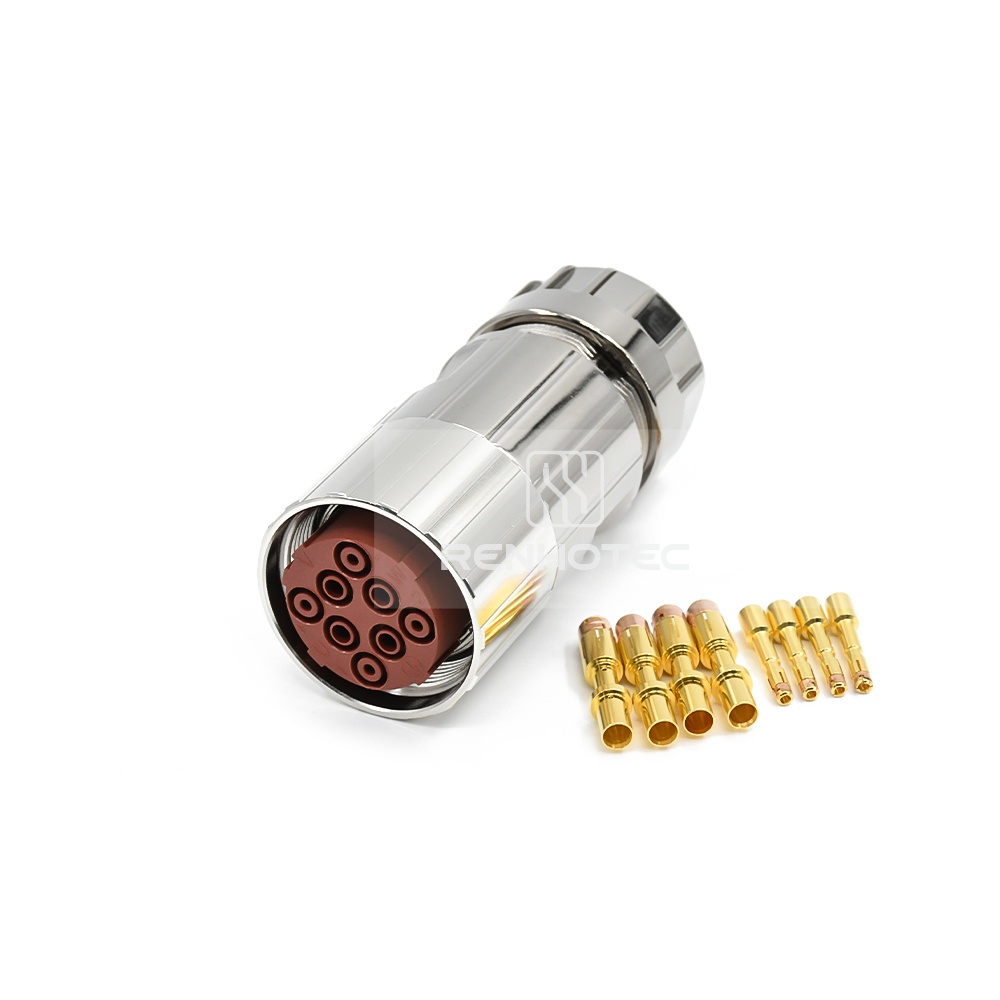

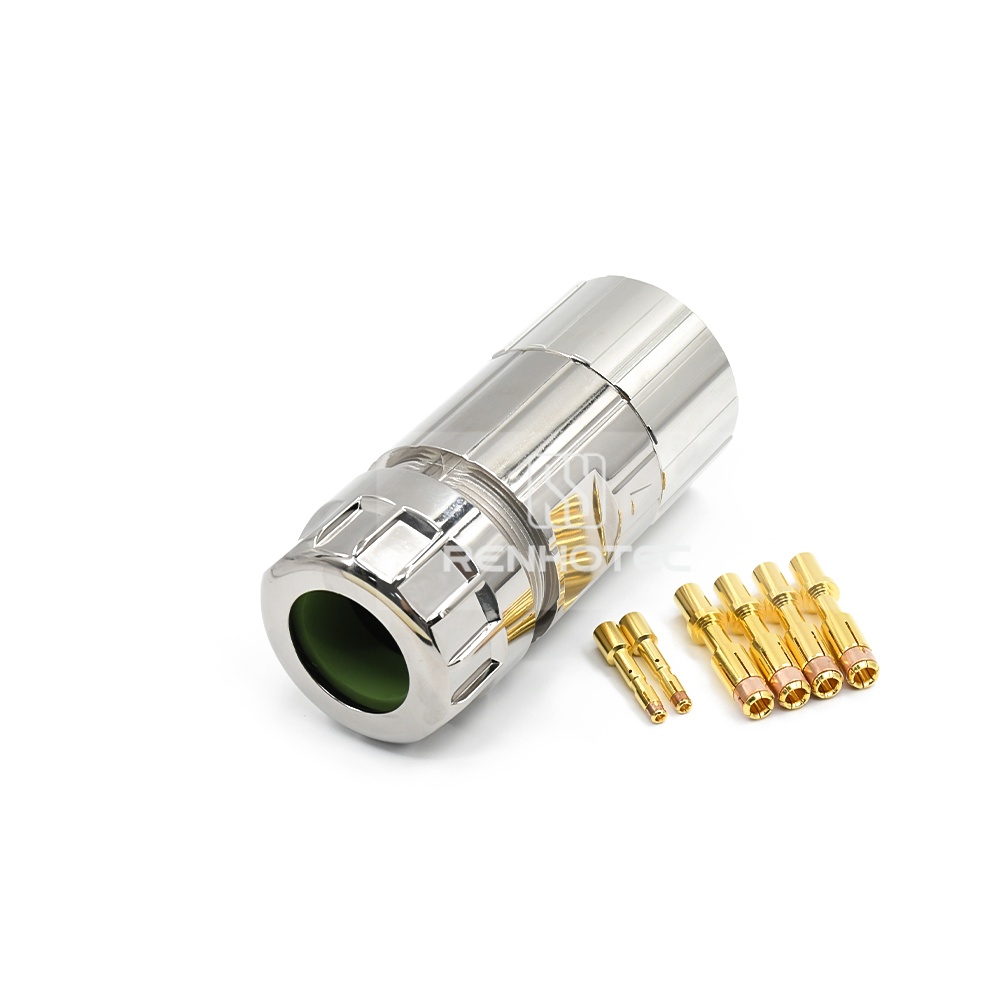

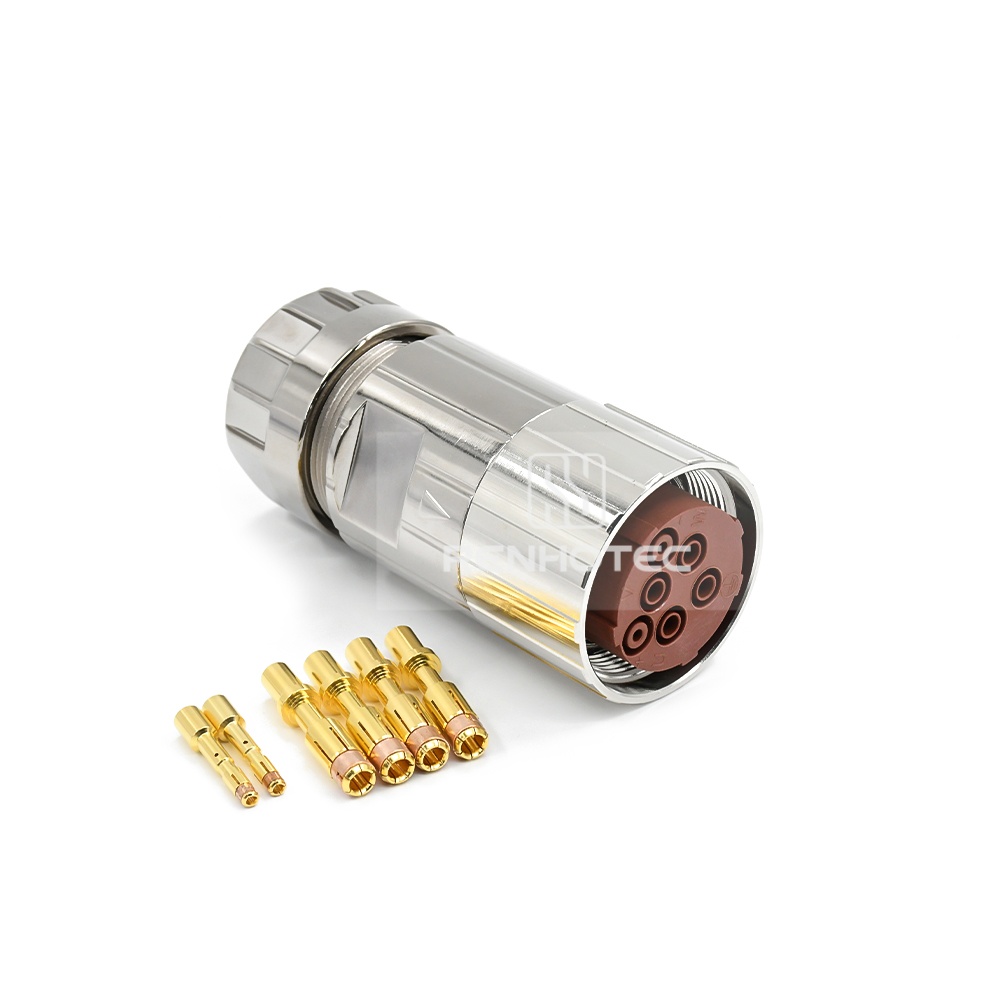

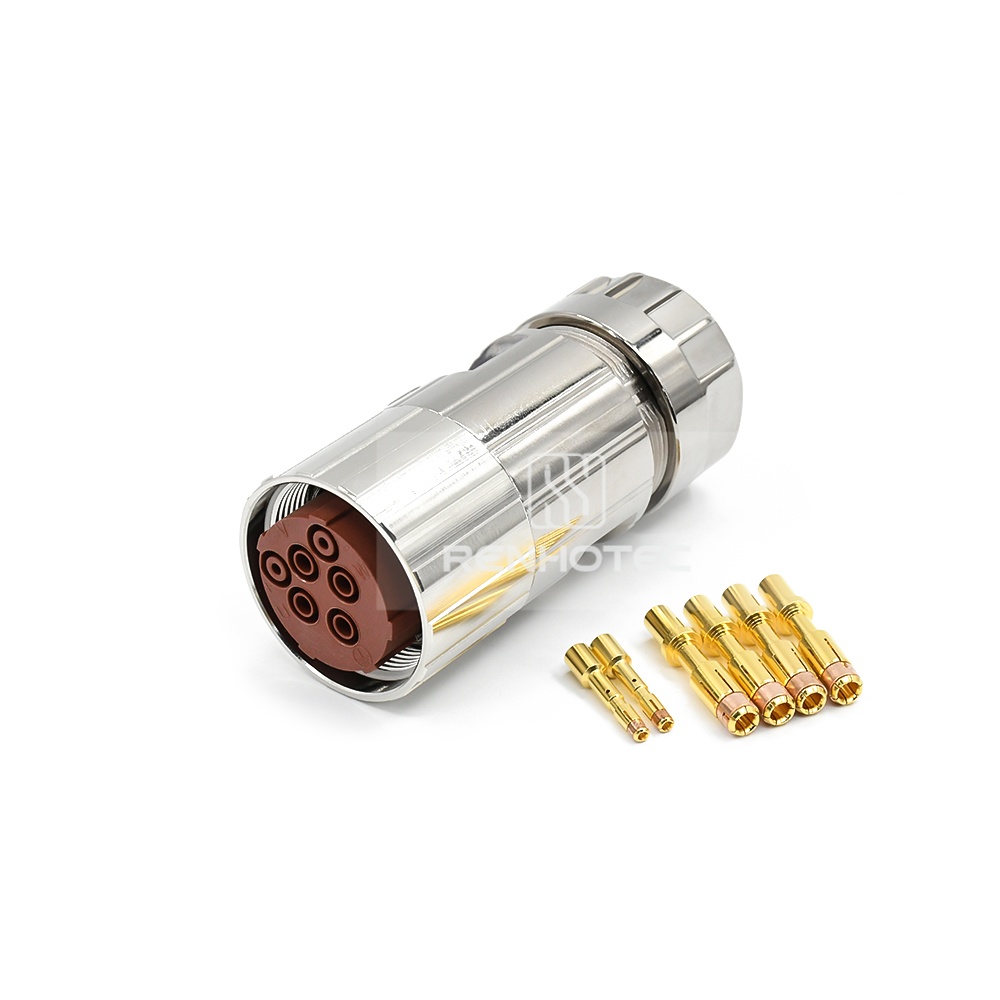

M Series Connectors
Are lightweight triplestart ratchet coupling type connectors designed for avionics, aerospace, military, security, motorsport and heavy duty applications.
M40 series with IP67 rating, provides 2 / 3 / 4 / 5 / 8 / 12 / 17 contacts. Different pin matches specific applications.
The primary use of M40 field-wireable connectors is to build custom patch cords. Provide a quick disconnect for a device, terminate field devices on an I/O block, or bring multiple sensor signals into one port.
M40 field-installable connectors support higher bandwidth while providing an IP67 rated solution for demanding applications.
Connection Type | Cable Plug |
---|---|
Gender | Female |
Orientation | Straight |
Termination | |
Shield | Shield |
Shell Material | Metal, Zinc Alloy with Nikeplate |
Pin Contact | CuZn |
Socket Contact | CuSn |
Contact Plating | Au |
Rated Voltage | 250V for 2/3/4/5 Pin, 60V for 5/6/7/8/12/14/16/19/24 Pin |
---|---|
Rated Current | 1A for 24 Pin, 3A for 12/14/16/19 Pin, 6A for 4/5 Pin, 7A for 2/3 Pin |
Insulation Resistance | ≥100 MΩ |
Contact Resistance | <3 MΩ |
Coupling | Threaded Coupling |
Mechanical Operation | >500 Mating Cycles |
Wire Gauge | 0.14mm²(26AWG) for 24 Pin, Max. 0.25mm²/(Max. 24AWG) for 12/14/16/19 Pin, Max. 0.75mm²/(Max. 20AWG) for 2/3/4/5/6/7/8 Pin |
Temperature Range | -25°C ~ + 85°C |
Protection Degree | IP67 |
Connection Type | Cable Plug |
---|---|
Gender | Female |
Orientation | Straight |
Termination | |
Shield | Shield |
Shell Material | Metal, Zinc Alloy with Nikeplate |
Pin Contact | CuZn |
Socket Contact | CuSn |
Contact Plating | Au |
Rated Voltage | 250V for 2/3/4/5 Pin, 60V for 5/6/7/8/12/14/16/19/24 Pin |
Rated Current | 1A for 24 Pin, 3A for 12/14/16/19 Pin, 6A for 4/5 Pin, 7A for 2/3 Pin |
Insulation Resistance | ≥100 MΩ |
Contact Resistance | <3 MΩ |
Coupling | Threaded Coupling |
Mechanical Operation | >500 Mating Cycles |
Wire Gauge | 0.14mm²(26AWG) for 24 Pin, Max. 0.25mm²/(Max. 24AWG) for 12/14/16/19 Pin, Max. 0.75mm²/(Max. 20AWG) for 2/3/4/5/6/7/8 Pin |
Temperature Range | -25°C ~ + 85°C |
Protection Degree | IP67 |
