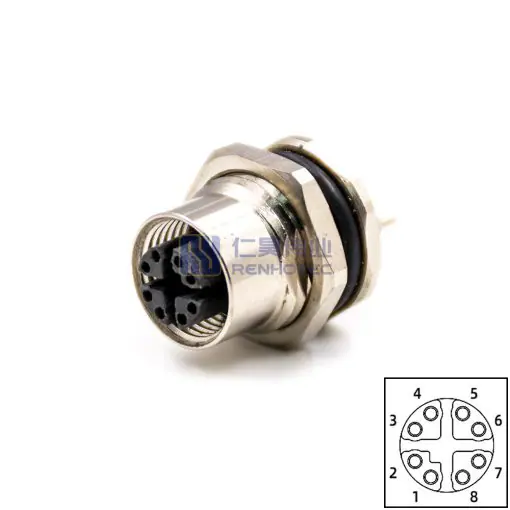

M12 X Code Straight PCB Mount Connector

M12 X Code Straight PCB Mount Connector

Categories: , Tag:
  • X code M12 bulkhead connector : straight or right angle PCB mount , SMD , front or back panel mount with solder termination
  • M12 connector X coded field wireable connector : metal shell , crimp termination , straight or right angled shape
Get a Quote

M12 Connector is a flexible and highly customizable connector suitable for a variety of industrial applications. The design of this connector facilitates direct on-site connection with cables, eliminating the need for specific equipment or tools and simplifying field installation and maintenance.

M12 X-code connector have 8 pins , it’s one type of M12 Ethernet connector , had been widely used for 10G bps data transmission , such as industrial Ethernet , Machine vision cameras

Technical Parameters

  • Connector Type : Receptacle
  • Contact Type : Female Pin, Male Pin
  • Orientation : Straight
  • Key : X Code
  • Number Of Positions : 8 Pin
  • Contact Termination : Through Hole
  • Mounting Type : Panel Mount
  • Shielding : Unshielded
  • Shell Material : Copper Alloy
  • Contact Material : Copper Alloy
  • Contact Finish : Gold Plating
  • Operating Temperature : -25°C ~ + 85°C
  • Ingress Protection : IP67

Name And Order Rules

M12 A 4 P M M S R xxx
Series : M12
Coding : A B C D X S T K L
Number of Positions : 2 3 4 5 6 8 12 17Pin
Connector Type : P–Plug S–Socket
Contact Type : M–Male F-Female
Contact Termination : M–Molding Type A–Assembly Type(Screw) B–Assembly (Solder) D–Solder Type P–Through Hole R–Angled through Hole
Shielding : S–Shielded N–Unshielded
Shell Feature : S–Straight (For Molding and Assembly) R–Right Angle (For Molding and Assembly) F–Front nut Fastening R–Rear nut Fastening H–Flange
Serial Number : If contact termination A or B, 001–Without Cable If contact termination D, P or R, 001–M12*0.5 002–M16*1.5
M12 A 4 P M M S R xxx
Series : M12
Coding : A B C D X S T K L
Number of Positions : 2 3 4 5 6 8 12 17Pin
Connector Type : P–Plug S–Socket
Contact Type : M–Male F-Female
Contact Termination : M–Molding Type A–Assembly Type(Screw) B–Assembly (Solder) D–Solder Type P–Through Hole R–Angled through Hole
Shielding : S–Shielded N–Unshielded
Shell Feature : S–Straight (For Molding and Assembly) R–Right Angle (For Molding and Assembly) F–Front nut Fastening R–Rear nut Fastening H–Flange
Serial Number : If contact termination A or B, 001–Without Cable If contact termination D, P or R, 001–M12*0.5 002–M16*1.5

Product Number and Dimension

PART NUMBER NAME
M12X-8SF-RN-R002 M12 Female 8 Pin X Code Receptacle Straight Panel Front Mount Connector
M12X-8SM-RN-R002 M12 Male 8 Pin X Code Receptacle Straight Panel Front Mount Connector
M12X-8SF-RN-F002 M12 Female 8 Pin X Code Receptacle Straight Panel Back Mount Connector
M12X-8SM-RN-F002 M12 Male 8 Pin X Code Receptacle Straight Panel Back Mount Connector
PART NUMBER NAME
M12X-8SF-RN-R002 M12 Female 8 Pin X Code Receptacle Straight Panel Front Mount Connector
M12X-8SM-RN-R002 M12 Male 8 Pin X Code Receptacle Straight Panel Front Mount Connector
M12X-8SF-RN-F002 M12 Female 8 Pin X Code Receptacle Straight Panel Back Mount Connector
M12X-8SM-RN-F002 M12 Male 8 Pin X Code Receptacle Straight Panel Back Mount Connector

Electrical Paramenters

Pins Rated Current Rated Voltage Conductor Size
A/C D/C AWG mm²
8 0.5A 50V 60V 26~24 0.14~0.25
Pins Rated Current Rated Voltage Conductor Size
A/C D/C AWG mm²
8 0.5A 50V 60V 26~24 0.14~0.25

FAQ

1.What is M12 D code vs X code?

“D” and “X” Coding are used for Ethernet applications. These connectors provide high-speed data transfer. D Coding connectors are used for 100MB applications while X Coding connectors are used for higher speeds such as 10GB applications.

2.What is M12x?

M12 X-coded industrial ethernet connectors are a critical component of modern networking solutions, offering reliable and high-speed data transmission in industrial settings.

Product Type

Connector Type

Receptacle
Orientation

Straight
Number of Positions

8 Pin
Mounting Type

Panel Mount
Shielding

Unshielded
Shell Material

Copper Alloy
Connector Type

Receptacle

 Orientation

Straight
Number of Positions

8 Pin

 Mounting Type

Panel Mount
Shielding

Unshielded

 Shell Material

Copper Alloy

Contact Type

Contact Type

,

Contact Termination

Through Hole
Contact Material

Copper Alloy
Contact Finish

Gold Plating
Contact Type

,

Contact Termination

Through Hole
Contact Material

Copper Alloy

 Contact Finish

Gold Plating

Basic Attributes

Key

X
Key

X

Environmental Characteristics

Operating Temperature

-25°C ~ + 85°C
Ingress Protection

IP67
Operating Temperature

-25°C ~ + 85°C

 Ingress Protection

IP67
Connector Type

Receptacle
Contact Type

,

Orientation

Straight
Key

X
Number of Positions

8 Pin
Contact Termination

Through Hole
Mounting Type

Panel Mount
Shielding

Unshielded
Shell Material

Copper Alloy
Contact Material

Copper Alloy
Contact Finish

Gold Plating
Operating Temperature

-25°C ~ + 85°C
Ingress Protection

IP67
