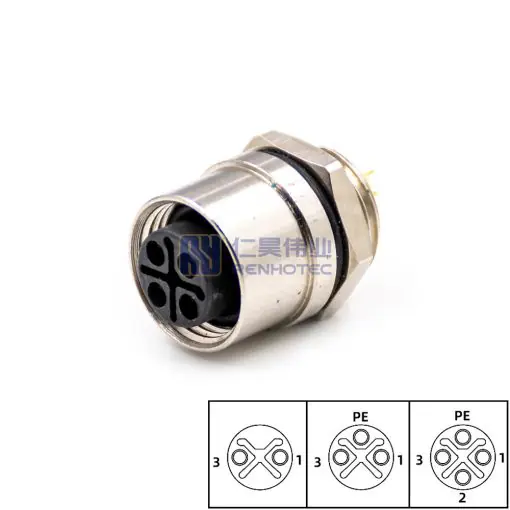

M12 S Coded Front Panel Mount Connector-Solder

Categories: , Tag:
  • S coded M12 bulkhead connector : front panel mount or back panel mount , PCB mount available
  • M12 S-coded field wireable connector : screw termination , male or female , straight or right angled
  • M12 S coded cable : has one end(the other end free) or both end, gender of each end can be male or female , cable jacket has PVC and PUR , drag chain cable available
Get a Quote

M12 Connector is a flexible and highly customizable connector suitable for a variety of industrial applications. The design of this connector facilitates direct on-site connection with cables, eliminating the need for specific equipment or tools and simplifying field installation and maintenance.

M12 S coded connector is designed for AC power supply , one type of M12 power connector , it has rated voltage AC 630 and rated current 12A , supply big power in small size , it has 3 type pin configurations as 2 pin , 2 pin and PE , 3 pin and PE , PE is for ground pin , insure safe connection

Technical Parameters

  • Connector Type : Receptacle
  • Contact Type : Female Pin, Male Pin
  • Orientation : Straight
  • Key : S Code
  • Number Of Positions : 2 Pin, 2+PE Pin, 3+PE Pin
  • Contact Termination : Solder
  • Mounting Type : Panel Mount
  • Shielding : Unshielded
  • Shell Material : Copper Alloy
  • Contact Material : Copper Alloy
  • Contact Finish : Gold Plating
  • Operating Temperature : -25°C ~ + 85°C
  • Ingress Protection : IP67

Name And Order Rules

M12 A 4 P M M S R xxx
Series : M12
Coding : A B C D X S T K L
Number of Positions : 2 3 4 5 6 8 12 17Pin
Connector Type : P–Plug S–Socket
Contact Type : M–Male F-Female
Contact Termination : M–Molding Type A–Assembly Type(Screw) B–Assembly (Solder) D–Solder Type P–Through Hole R–Angled through Hole
Shielding : S–Shielded N–Unshielded
Shell Feature : S–Straight (For Molding and Assembly) R–Right Angle (For Molding and Assembly) F–Front nut Fastening R–Rear nut Fastening H–Flange
Serial Number : If contact termination A or B, 001–Without Cable If contact termination D, P or R, 001–M12*0.5 002–M16*1.5
M12 A 4 P M M S R xxx
Series : M12
Coding : A B C D X S T K L
Number of Positions : 2 3 4 5 6 8 12 17Pin
Connector Type : P–Plug S–Socket
Contact Type : M–Male F-Female
Contact Termination : M–Molding Type A–Assembly Type(Screw) B–Assembly (Solder) D–Solder Type P–Through Hole R–Angled through Hole
Shielding : S–Shielded N–Unshielded
Shell Feature : S–Straight (For Molding and Assembly) R–Right Angle (For Molding and Assembly) F–Front nut Fastening R–Rear nut Fastening H–Flange
Serial Number : If contact termination A or B, 001–Without Cable If contact termination D, P or R, 001–M12*0.5 002–M16*1.5

Product Number and Dimension

PART NUMBER NAME
M12S-2SF-DN-R002 M12 Female 2 Pin S Code Receptacle Straight Panel Front Mount Connector
M12S-3SF-DN-R002 M12 Female 3 Pin S Code Receptacle Straight Panel Front Mount Connector
M12S-4SF-DN-R002 M12 Female 4 Pin S Code Receptacle Straight Panel Front Mount Connector
M12S-2SM-DN-R002 M12 Male 2 Pin S Code Receptacle Straight Panel Front Mount Connector
M12S-3SM-DN-R002 M12 Male 3 Pin S Code Receptacle Straight Panel Front Mount Connector
M12S-4SM-DN-R002 M12 Male 4 Pin S Code Receptacle Straight Panel Front Mount Connector
PART NUMBER NAME
M12S-2SF-DN-R002 M12 Female 2 Pin S Code Receptacle Straight Panel Front Mount Connector
M12S-3SF-DN-R002 M12 Female 3 Pin S Code Receptacle Straight Panel Front Mount Connector
M12S-4SF-DN-R002 M12 Female 4 Pin S Code Receptacle Straight Panel Front Mount Connector
M12S-2SM-DN-R002 M12 Male 2 Pin S Code Receptacle Straight Panel Front Mount Connector
M12S-3SM-DN-R002 M12 Male 3 Pin S Code Receptacle Straight Panel Front Mount Connector
M12S-4SM-DN-R002 M12 Male 4 Pin S Code Receptacle Straight Panel Front Mount Connector

Electrical Paramenters

Pins Rated Current Rated Voltage Conductor Size
A/C D/C AWG mm²
2 12A 630V 630V 16 1.5
2+PE 12A 630V 630V 16 1.5
3+PE 12A 630V 630V 16 1.5
Pins Rated Current Rated Voltage Conductor Size
A/C D/C AWG mm²
2 12A 630V 630V 16 1.5
2+PE 12A 630V 630V 16 1.5
3+PE 12A 630V 630V 16 1.5

FAQ

1.What are the primary uses of the M12 S-code connector?

The M12 S-code connector is primarily used for power transmission applications. They are particularly common in industrial automation systems because of their robust design that can withstand harsh environmental conditions. They are typically used to supply power to devices, with a voltage rating of up to 630V and a current rating of up to 12A (according to the IEC 61076-2-111 standard).

2.How do I know if I need an M12 S-code connector instead of another type of M12 connector?

M12 connectors come in various codings, each with a different pin layout and purpose. S-code connectors are specifically designed for power transmission. If you need to supply power to a device and require a robust connector that can withstand harsh environmental conditions, then an M12 S-code connector might be what you need. However, for which specific type of M12 connector you need, it’s best to consult the product documentation of your device to ensure compatibility.

Product Type

Connector Type

Receptacle
Orientation

Straight
Number of Positions

2P+E, 3P+E, 2 Pin
Mounting Type

Panel Mount
Shielding

Unshielded
Shell Material

Copper Alloy
Connector Type

Receptacle

 Orientation

Straight
Number of Positions

2P+E, 3P+E, 2 Pin

 Mounting Type

Panel Mount
Shielding

Unshielded

 Shell Material

Copper Alloy

Contact Type

Contact Type

,

Contact Termination

Solder
Contact Material

Copper Alloy
Contact Finish

Gold Plating
Contact Type

,

Contact Termination

Solder
Contact Material

Copper Alloy

 Contact Finish

Gold Plating

Basic Attributes

Key

S
Key

S

Environmental Characteristics

Operating Temperature

-25°C ~ + 85°C
Ingress Protection

IP67
Operating Temperature

-25°C ~ + 85°C

 Ingress Protection

IP67
Connector Type

Receptacle
Contact Type

,

Orientation

Straight
Key

S
Number of Positions

2P+E, 3P+E, 2 Pin
Contact Termination

Solder
Mounting Type

Panel Mount
Shielding

Unshielded
Shell Material

Copper Alloy
Contact Material

Copper Alloy
Contact Finish

Gold Plating
Operating Temperature

-25°C ~ + 85°C
Ingress Protection

IP67
