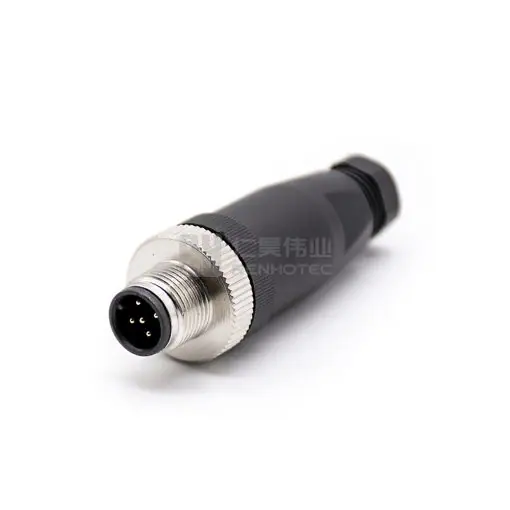

M12 Male Field Assembly Plug 5 Pos A Code Straight Screw Contacts

Part NO.: RHT-634-1136-5P Categories: , Tags: , , , , , ,

The M12 Male Field Assembly Plug 5 Pos A Code Straight Screw Contacts offers a practical solution for reliable signal transmission in various industrial applications. This connector features five positions and an A-coded configuration, ensuring secure mating with compatible devices.

Get a Quote

M12 Field Wireable Connector is a flexible and highly customizable connector suitable for a variety of industrial applications. The design of this connector facilitates direct on-site connection with cables, eliminating the need for specific equipment or tools and simplifying field installation and maintenance.

M12 Field Wireable Connector offers a variety of polarity and coding options, including A-coding, B-coding, D-coding, and X-coding, to meet different connection requirements. For instance, A-coding is typically used for sensors, actuators, and power connections, B-coding for fieldbus connections, and D-coding and X-coding are often used for Ethernet and high-speed data transmission.

M12 Field Wireable Connectors

Exquisite Craftsmanship Makes Connections More Secure

Thickened pins/long life Copper-zinc material, high resistance, wear resistance Threaded cable, easy to remove and plug, tightly combined, and not easy to fall off.

Safe and Reliable Meet the Standards to Create Safety

Pure copper gold-plated contacts with excellent electrical conductivity Fixed key position, multi-key position to prevent blindness, MIS insertion, skew insertion Strong waterproof performance, in line with IP67/IP68 waterproof requirements.

Product Details

M12 Field Wireable connectors are available in a wide range of straight and Right angle, male and female, and plastic and metal versions.

The field mount connector consists of six parts. In order, they are the threaded compression nut, compression ring, rubber cord grip, shielding bail, housing and connector.

Difference between PG7 and PG9

PG7 and PG9 are German standard thread sizes for cable fixing devices.PG7 is suitable for cable diameters from approx. 3.5mm to 6.5mm, while PG9 is suitable for cable diameters from approx. 4mm to 8mm. The choice depends on the cable diameter and equipment requirements.

FAQ

The M12 connector is a circular connector with a 12 mm locking thread. Suitable for factory automation applications, actuators, sensors, industrial Ethernet and fieldbus, etc. M12 connectors are also useful in flushing and corroding environments. They are available with 3, 4, 5, 8, and 12 pins.

M8 connectors, with an 8-mm circular coupler, are specifically used in industrial automated systems, typically linking sensors, actuators, and switches. M8 connectors can be used for similar applications as M12, but have a smaller footprint incorporating an 8mm threaded head.

For data applications, there are five main types of M12 connectors with key positions A, B, C, D or X. These connectors are available with 2, 3, 4, 5, 6, 8, 12, or 17 pins. Depending on the number of signals, type of signals, type of interface involved in the connection, and the connector code.

The M12 name comes from the metric thread on the coupling nut and mating socket of most connectors. They are basically 12 mm diameter fasteners with an M12 thread.

Product Type

Connector Type

Plug
Number of Positions

5Pin
Orientation

Straight
Mounting Type

Cable Mount
key type

A code
Shielding

Unshielded
Shell Size

Connector Type

Plug

 Number of Positions

5Pin
Orientation

Straight

 Mounting Type

Cable Mount
key type

A code

 Shielding

Unshielded
Shell Size

Contact Type

Contact Type

Contact Material

Copper Alloy
Contact Finish

Gold Plating
Contact Type

Contact Material

Copper Alloy
Contact Finish

Gold Plating

Environmental Characteristics

Operating Temperature

-20°C ~ + 85°C
Protection Grade

IP67
Operating Temperature

-20°C ~ + 85°C

 Protection Grade

IP67

Electrical Characteristics

Rated Current

4A
Rated Voltage

250V
Insulation Resistance

≥100 MΩ
Contacts resistance

≤5MΩ
Rated Current

4A

 Rated Voltage

250V
Insulation Resistance

≥100 MΩ

 Contacts resistance

≤5MΩ

Mechanical Characteristics

Mechanical Operation

>500 Mating Cycles
Mechanical Operation

>500 Mating Cycles
Connector Type

Plug
Contact Type

Number of Positions

5Pin
Orientation

Straight
Mounting Type

Cable Mount
key type

A code
Shielding

Unshielded
Shell Size

Contact Material

Copper Alloy
Contact Finish

Gold Plating
Operating Temperature

-20°C ~ + 85°C
Protection Grade

IP67
Rated Current

4A
Rated Voltage

250V
Insulation Resistance

≥100 MΩ
Mechanical Operation

>500 Mating Cycles
Contacts resistance

≤5MΩ

Part Number

M12 A 4 P M M S R XXX XX
1 2 3 4 5 6 7 8 9 10

1. Connector Series : M12

2. Coding : A B C D X S T K L code

3. Number of Positions : 2, 3, 4, 5, 6, 8, 12, 17 Pin

4. Connector Type

  • P--Plug     S--Socket     T--T Type Adapter     Y--Y Type Adapter

5. Contact Type

  • M--Male    F--Female

6. Connector Type

  • M--Molding Type
  • A--Assembly Type(Screw)
  • B--Assembly (Solder)
  • D--Solder Type
  • P--Through Hole 180°
  • R--Angled through Hole 90°
  • C--Cap

7. Shielding

  • S--Shield    N-Unshield

8. Shell Feature

  • S--Straight (For Molding and Assembly)
  • R--Right Angle (For Molding and Assembly)
  • F--Front nut Fastening
  • R--Rear nut Fastening
  • H--Flange

9. Serial Number

If connector style A or B, 001: Without Cable(connector style A/B) If connector style D, P or R, 001: M12 *0.5 002: M16 *1.5

M12 Male Pinout Drawing

M12 Female Pinout Drawing
