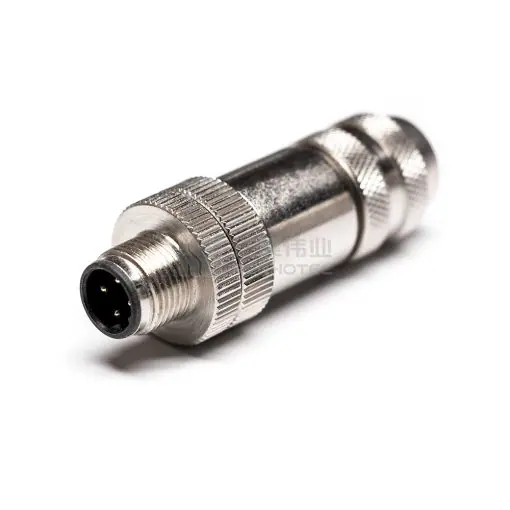

The M12 Male 4 Pos D Code Straight Plug Field Assembly Connector is a versatile and rugged electrical connector designed for field assembly. It features four positions for wire connections and is built to support D-coded applications. This type of connector is commonly used in industrial and automation environments where reliability and durability are crucial.
M12 Field Wireable Connector is a flexible and highly customizable connector suitable for a variety of industrial applications. The design of this connector facilitates direct on-site connection with cables, eliminating the need for specific equipment or tools and simplifying field installation and maintenance.
M12 Field Wireable Connector offers a variety of polarity and coding options, including A-coding, B-coding, D-coding, and X-coding, to meet different connection requirements. For instance, A-coding is typically used for sensors, actuators, and power connections, B-coding for fieldbus connections, and D-coding and X-coding are often used for Ethernet and high-speed data transmission.
Exquisite Craftsmanship Makes Connections More Secure
Thickened pins/long life Copper-zinc material, high resistance, wear resistance Threaded cable, easy to remove and plug, tightly combined, and not easy to fall off.
Safe and Reliable Meet the Standards to Create Safety
Pure copper gold-plated contacts with excellent electrical conductivity Fixed key position, multi-key position to prevent blindness, MIS insertion, skew insertion Strong waterproof performance, in line with IP67/IP68 waterproof requirements.
M12 Field Wireable connectors are available in a wide range of straight and Right angle, male and female, and plastic and metal versions.
The field mount connector consists of six parts. In order, they are the threaded compression nut, compression ring, rubber cord grip, shielding bail, housing and connector.
PG7 and PG9 are German standard thread sizes for cable fixing devices.PG7 is suitable for cable diameters from approx. 3.5mm to 6.5mm, while PG9 is suitable for cable diameters from approx. 4mm to 8mm. The choice depends on the cable diameter and equipment requirements.
The M12 connector is a circular connector with a 12 mm locking thread. Suitable for factory automation applications, actuators, sensors, industrial Ethernet and fieldbus, etc. M12 connectors are also useful in flushing and corroding environments. They are available with 3, 4, 5, 8, and 12 pins.
M8 connectors, with an 8-mm circular coupler, are specifically used in industrial automated systems, typically linking sensors, actuators, and switches. M8 connectors can be used for similar applications as M12, but have a smaller footprint incorporating an 8mm threaded head.
For data applications, there are five main types of M12 connectors with key positions A, B, C, D or X. These connectors are available with 2, 3, 4, 5, 6, 8, 12, or 17 pins. Depending on the number of signals, type of signals, type of interface involved in the connection, and the connector code.
The M12 name comes from the metric thread on the coupling nut and mating socket of most connectors. They are basically 12 mm diameter fasteners with an M12 thread.
Connector Type | Plug |
||
---|---|---|---|
Number of Positions | 4Pin |
||
Orientation | Straight |
||
Mounting Type | Cable Mount |
||
key type | D Code |
||
Shielding | Shielded |
||
Shell Size | |||
Connector Type | Plug |
Number of Positions | 4Pin |
Orientation | Straight |
Mounting Type | Cable Mount |
key type | D Code |
Shielding | Shielded |
Shell Size |
Contact Type | |||
---|---|---|---|
Contact Material | Copper Alloy |
||
Contact Finish | Gold Plating |
||
Contact Type | Contact Material | Copper Alloy |
|
Contact Finish | Gold Plating |
Operating Temperature | -20°C ~ + 85°C |
||
---|---|---|---|
Protection Grade | IP67 |
||
Operating Temperature | -20°C ~ + 85°C |
Protection Grade | IP67 |
Rated Current | 4A |
||
---|---|---|---|
Rated Voltage | 250V |
||
Insulation Resistance | ≥100 MΩ |
||
Contacts resistance | ≤5MΩ |
||
Rated Current | 4A |
Rated Voltage | 250V |
Insulation Resistance | ≥100 MΩ |
Contacts resistance | ≤5MΩ |
Mechanical Operation | >500 Mating Cycles |
---|---|
Mechanical Operation | >500 Mating Cycles |
Connector Type | Plug |
---|---|
Contact Type | |
Number of Positions | 4Pin |
Orientation | Straight |
Mounting Type | Cable Mount |
key type | D Code |
Shielding | Shielded |
Shell Size | |
Contact Material | Copper Alloy |
Contact Finish | Gold Plating |
Operating Temperature | -20°C ~ + 85°C |
Protection Grade | IP67 |
Rated Current | 4A |
Rated Voltage | 250V |
Insulation Resistance | ≥100 MΩ |
Mechanical Operation | >500 Mating Cycles |
Contacts resistance | ≤5MΩ |
Field Wireable / Molded / Overmolded Cable / Wire Harness / Panel Receptacles
M12 | A | 4 | P | M | M | S | R | XXX | XX |
---|---|---|---|---|---|---|---|---|---|
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
