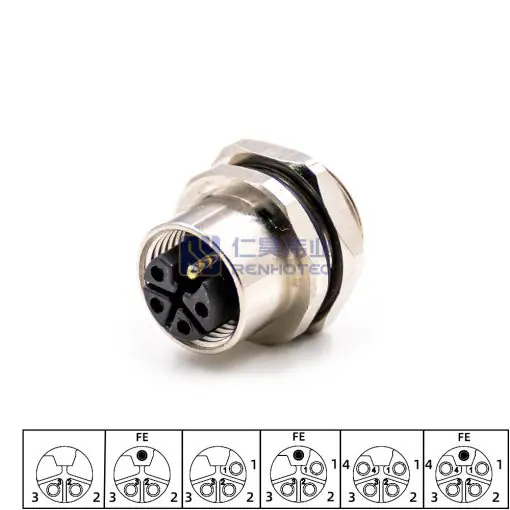

M12 L Coded Front Panel Mount Connector

Categories: , Tag:
  • M12 L-code field wireable connector : the users can install cable to the connector at field , it has male or female gender , straight or right angle shape.
  • M12 L-coded cable : one end or both end L code M12 cable , each end can be male or female , has PVC or PUR cable jacket , high flex moving cable for drawing chain system or robot is available.
  • L Coded M12 bulkhead connector : panel mount connector at the equipment side , front panel mount , back panel mount , PCB mount , square type are avialable.
Get a Quote

M12 Field Wireable Connector
Is a flexible and highly customizable connector suitable for a variety of industrial applications. The design of this connector facilitates direct on-site connection with cables, eliminating the need for specific equipment or tools and simplifying field installation and maintenance.

Product Selling Point

Exquisite Craftsmanship Makes Connections More Secure
-Thickened pins/long life;
-Copper-zinc material, high resistance, wear resistance;
-Threaded cable, easy to remove and plug, tightly combined and not easy to fall off;

Safe and Reliable Meet the Standards to Create Safety
-Pure copper gold-plated contacts with exc-ellent electrical conductivity;
-Fixed keys and multikeys to prevent blind insertion, misinsertion, and skewed insertion;
-Strong waterproof performance, in line with IP67/IP68 waterproof requests;

Stable Performance, Strong and Durable
-High quality PA66 housing;
-Thread locking mechanism, shock-proof locking design;
-Thickened nylon is anti-corrosion,non-flammable, and has good insulation property;

Parameters Table

M12 Field Wireable Connetor
Coding A/B/C/D/X/S/T/K/L
Number of Positions 2/3/4/5/6/8/12/17Pin
Gender Male/Female
Orientation Straight/Right Angle
Mounting Type Cable
Shell Material Metal/Plastic
Termination Style Screw-joint/Solder
Shield Shield/Unshielded

Assembly Drawing

Material Number Naming Rules

Electrical Properties

Number of Contacts Coding Rated
Current
Rated Voltage Wire gauge Cable Tail treatment
A B C D AC DC AWG ㎜²
2 Image 4A 250V 250V 22 0.34 PVC/PUR Can be wired
according to customer
requirements.
3 Image Image 4A 250V 250V 22 0.34 PVC/PUR
4 Image Image 4A 250V 250V 22 0.34 PVC/PUR
5 Image Image Image Image 4A 60V 60V 22 0.34 PVC/PUR
6 Image Image 2A 30V 30V 24 0.25 PVC/PUR
8 Image 2A 30V 30V 24 0.25 PVC/PUR
12 Image 1.5A 30V 30V 26 0.14 PVC/PUR
17 Image 1.5A 30V 30V 26 0.14 PVC/PUR

How We Make Customized Products for You?

M Connector Application

Product Type

Connector Type

Receptacle

Orientation

Straight

Number of Positions

2P+E, 3P+E, 2 Pin, 3 Pin, 4 Pin

Mounting Type

Panel Mount

Shielding

Unshielded

Shell Material

Copper Alloy

Connector Type

Receptacle

Orientation

Straight

Number of Positions

2P+E, 3P+E, 2 Pin, 3 Pin, 4 Pin

Mounting Type

Panel Mount

Shielding

Unshielded

Shell Material

Copper Alloy

Contact Type

Contact Type

,

Contact Termination

Crimp, Solder

Contact Material

Copper Alloy

Contact Finish

Gold Plating

Contact Type

,

Contact Termination

Crimp, Solder

Contact Material

Copper Alloy

Contact Finish

Gold Plating

Basic Attributes

Key

L

Key

L

Environmental Characteristics

Operating Temperature

-25°C ~ + 85°C

Ingress Protection

IP67

Operating Temperature

-25°C ~ + 85°C

Ingress Protection

IP67

Connector Type

Receptacle

Contact Type

,

Orientation

Straight

Key

L

Number of Positions

2P+E, 3P+E, 2 Pin, 3 Pin, 4 Pin

Contact Termination

Crimp, Solder

Mounting Type

Panel Mount

Shielding

Unshielded

Shell Material

Copper Alloy

Contact Material

Copper Alloy

Contact Finish

Gold Plating

Operating Temperature

-25°C ~ + 85°C

Ingress Protection

IP67
