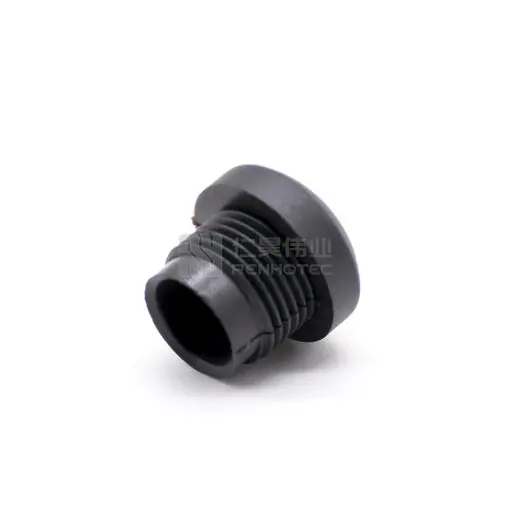

M12 Female Receptacle Plastic Dust Cap

Part NO.: RND 205-01192 Categories: , Tags: , ,

The M12 Female Receptacle Plastic Dust Cap is a protective cover designed for M12 female connectors. Constructed from durable plastic, it safeguards the connector from dust, dirt, and moisture when not in use, helping to prevent corrosion and ensuring optimal performance. Its precise fit allows for effective protection, making it suitable for various industrial and electronic applications where reliable connectivity is crucial.

Get a Quote

A Plastic Dust Cap is a protective accessory designed to shield electrical connectors, ports, and sockets from dust, dirt, moisture, and other contaminants when they are not in use. Typically made from durable plastic materials, these caps are lightweight yet robust, providing a secure and snug fit to prevent unwanted debris from entering the connection points.

Dust caps come in various shapes and sizes to accommodate different connector types and applications, from industrial machinery to consumer electronics. They are easy to install and remove, making them convenient for frequent connection and disconnection scenarios. Utilizing plastic dust caps is essential for maintaining the integrity and performance of electrical systems, ensuring reliable operation in harsh environments and prolonging the life of connectors by keeping them clean and protected.

Frequently Asked Questions

What are the available types of the M series connector cable?

We have M5/M8/M9/M12/M16/7/8/M23 connector for M connector cables. There are panel mount connector, assembly connector, molding cable connector. According to materials, we have plastic type and metal type.

The pins number of our M series connector

M5: 2Pin, 3Pin, 4Pin
M8: 2 Pin, 3Pin, 4Pin, 5Pin, 6Pin, 8Pin
M9: 2Pin, 3Pin, 4Pin, 5Pin, 6Pin, 7Pin, 8Pin
M12: 2Pin, 3Pin, 4Pin, 5Pin, 6Pin, 8Pin, 12Pin, 17Pin
M16: 2Pin, 3Pin, 4Pin, 5Pin, 6Pin, 7Pin, 8Pin, 12Pin, 14Pin, 16Pin, 19Pin, 24Pin
7/8: 3Pin, 4Pin, 5Pin, 6Pin
M23: 6Pin, 7Pin, 8Pin, 9Pin, 12Pin, 16Pin, 17Pin, 19Pin

Yes, single-ended and double-ended all are available.

Single Ended Cable

Double Ended Cable

Yes, Shielded and non-shielded version are available.

0.5m or 1m, other cable length you need is also supported.



Yes, Customized cable length, with PUR, PVC, LSZH, EtherNet, profinet, and different color.

Customer
I need M12 3Pin A coded, male to male double-ended, shielded PUR green, 1m molded cable.

Renhotec Pro
Sure. We're confirming your requirement and sending you the best quotation.

Customization Samples

M12 to M12

  • Male to Female plastic plug
  • 1.0m length purple cable
  • IP68 rate waterproof design

M12 to USB RJ45

  • 12Pin Male to 4 Plugs
  • IP68 Rate Waterproof
  • 1.0m Length High Durable cable

M8 to M8

  • 3Pin Female to Female
  • 0.3m length metal cable
  • Rgith Angled Connector

M12 to M12

  • 12Pin Male to 2 Female
  • 1.0m length PVC cable
  • IP67 Rate Waterproof

Basic Attributes

Shell Material

Plastic
Color

Black
Shell Material

Plastic

 Color

Black

Specifications

Product Type

Dust cap
Product Type

Dust cap
Shell Material

Plastic
Color

Black
Product Type

Dust cap

Part Number

M12 A 4 P M M S R XXX XX
1 2 3 4 5 6 7 8 9 10

1. Connector Series : M12

2. Coding : A B C D X S T K L code

3. Number of Positions : 2, 3, 4, 5, 6, 8, 12, 17 Pin

4. Connector Type

  • P--Plug     S--Socket     T--T Type Adapter     Y--Y Type Adapter

5. Contact Type

  • M--Male    F--Female

6. Connector Type

  • M--Molding Type
  • A--Assembly Type(Screw)
  • B--Assembly (Solder)
  • D--Solder Type
  • P--Through Hole 180°
  • R--Angled through Hole 90°
  • C--Cap

7. Shielding

  • S--Shield    N-Unshield

8. Shell Feature

  • S--Straight (For Molding and Assembly)
  • R--Right Angle (For Molding and Assembly)
  • F--Front nut Fastening
  • R--Rear nut Fastening
  • H--Flange

9. Serial Number

If connector style A or B, 001: Without Cable(connector style A/B) If connector style D, P or R, 001: M12 *0.5 002: M16 *1.5

M12 Male Pinout Drawing

M12 Female Pinout Drawing
