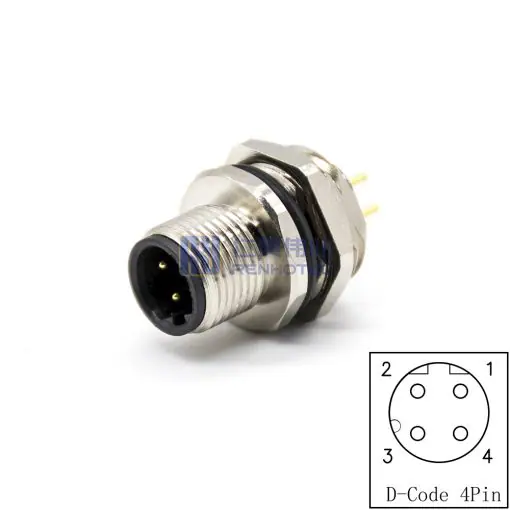

M12 D Coded Straight PCB Mount Connector

Categories: , Tag:
  • M12 D coded cable :it’s made with wisted two pair shielded Ethernet cable , suitable for CAT5E , the cable jacket can be PVC or PUR , drag chain cable for moving system is available.
  • M12 D-coded bulkhead connector : could be mouted from front or back of panel , also has PCB mount (straight or right angle orientation ) .
  • M12 D-coded field wireable connector : it’s used for field cable installation , has metal or plastic shell , screw termination , straight and right angled orientation .
Get a Quote

M12 Field Wireable Connector is a flexible and highly customizable connector suitable for a variety of industrial applications. The design of this connector facilitates direct on-site connection with cables, eliminating the need for specific equipment or tools and simplifying field installation and maintenance.

The M12 D-Code connectors are useful for replacements, upgrades and installations for a standard connector type used in industrial automation, automobile manufacturing, and factory automation machines. M12 D-Code connectors have 4 pins and comply with Profinet, EtherCAT, and Ethernet/IP protocols.

Technical Parameters

  • Connector Type : Receptacle
  • Contact Type : Female Pin, Male Pin
  • Orientation : Straight
  • Key : D Code
  • Number Of Positions : 4 Pin
  • Contact Termination : Through Hole
  • Mounting Type : Panel Mount
  • Shielding : Unshielded
  • Shell Material : Copper Alloy
  • Contact Material : Copper Alloy
  • Contact Finish : Gold Plating
  • Operating Temperature : -25°C ~ + 85°C
  • Ingress Protection : IP67

Name And Order Rules

M12 A 4 P M M S R xxx
Series : M12
Coding : A B C D X S T K L
Number of Positions : 2 3 4 5 6 8 12 17Pin
Connector Type : P–Plug S–Socket
Contact Type : M–Male F-Female
Contact Termination : M–Molding Type A–Assembly Type(Screw) B–Assembly (Solder) D–Solder Type P–Through Hole R–Angled through Hole
Shielding : S–Shielded N–Unshielded
Shell Feature : S–Straight (For Molding and Assembly) R–Right Angle (For Molding and Assembly) F–Front nut Fastening R–Rear nut Fastening H–Flange
Serial Number : If contact termination A or B, 001–Without Cable If contact termination D, P or R, 001–M12*0.5 002–M16*1.5
M12 A 4 P M M S R xxx
Series : M12
Coding : A B C D X S T K L
Number of Positions : 2 3 4 5 6 8 12 17Pin
Connector Type : P–Plug S–Socket
Contact Type : M–Male F-Female
Contact Termination : M–Molding Type A–Assembly Type(Screw) B–Assembly (Solder) D–Solder Type P–Through Hole R–Angled through Hole
Shielding : S–Shielded N–Unshielded
Shell Feature : S–Straight (For Molding and Assembly) R–Right Angle (For Molding and Assembly) F–Front nut Fastening R–Rear nut Fastening H–Flange
Serial Number : If contact termination A or B, 001–Without Cable If contact termination D, P or R, 001–M12*0.5 002–M16*1.5

Product Number and Dimension

PART NUMBER DRAWING NAME
M12D-4SF-PN-R002 M12 Female 4 Pin D Code Receptacle Straight Panel Front Mount Connector
M12D-4SM-PN-R002 M12 Male 4 Pin D Code Receptacle Straight Panel Front Mount Connector
M12D-4SF-PN-F002 M12 Female 4 Pin D Code Receptacle Straight Panel Back Mount Connector
M12D-4SM-PN-F002 M12 Male 4 Pin D Code Receptacle Straight Panel Back Mount Connector
PART NUMBER NAME
M12D-4SF-PN-R002 M12 Female 4 Pin D Code Receptacle Straight Panel Front Mount Connector
M12D-4SM-PN-R002 M12 Male 4 Pin D Code Receptacle Straight Panel Front Mount Connector
M12D-4SF-PN-F002 M12 Female 4 Pin D Code Receptacle Straight Panel Back Mount Connector
M12D-4SM-PN-F002 M12 Male 4 Pin D Code Receptacle Straight Panel Back Mount Connector

Electrical Paramenters

Pins Rated Current Rated Voltage Conductor Size
A/C D/C AWG mm²
4 4A 250V 250V 22 0.34
Pins Rated Current Rated Voltage Conductor Size
A/C D/C AWG mm²
4 4A 250V 250V 22 0.34

FAQ

1.What is D-coded M12?

M12 D-coded connectors are used primarily for industrial Ethernet connections, such as PROFINET and EtherNet/IP. They provide a form factor that supports two-pair connections. Unlike M12 X-coded connectors, D-code doesn’t support Gigabit Ethernet; it only supports Fast Ethernet (100 Mb/s).

2.What is a D-coded cable?

D Code. D-code is specifically used in network cables for industrial Ethernet applications to transfer data up to 100-Mbits. The insides of cables with this type of coding consist of either 4 wire connectors (D-coding) with 2 pairs of Cat 5e cables or M12 8 wire (A-coding) connectors with 4 pairs of Cat 5e cable.

Product Type

Connector Type

Receptacle
Orientation

Straight
Number of Positions

4 Pin
Mounting Type

Panel Mount
Shielding

Unshielded
Shell Material

Copper Alloy
Connector Type

Receptacle

 Orientation

Straight
Number of Positions

4 Pin

 Mounting Type

Panel Mount
Shielding

Unshielded

 Shell Material

Copper Alloy

Contact Type

Contact Type

,

Contact Termination

Solder
Contact Material

Copper Alloy
Contact Finish

Gold Plating
Contact Type

,

Contact Termination

Solder
Contact Material

Copper Alloy

 Contact Finish

Gold Plating

Basic Attributes

Key

D
Key

D

Environmental Characteristics

Operating Temperature

-25°C ~ + 85°C
Ingress Protection

IP67
Operating Temperature

-25°C ~ + 85°C

 Ingress Protection

IP67
Connector Type

Receptacle
Contact Type

,

Orientation

Straight
Key

D
Number of Positions

4 Pin
Contact Termination

Solder
Mounting Type

Panel Mount
Shielding

Unshielded
Shell Material

Copper Alloy
Contact Material

Copper Alloy
Contact Finish

Gold Plating
Operating Temperature

-25°C ~ + 85°C
Ingress Protection

IP67
