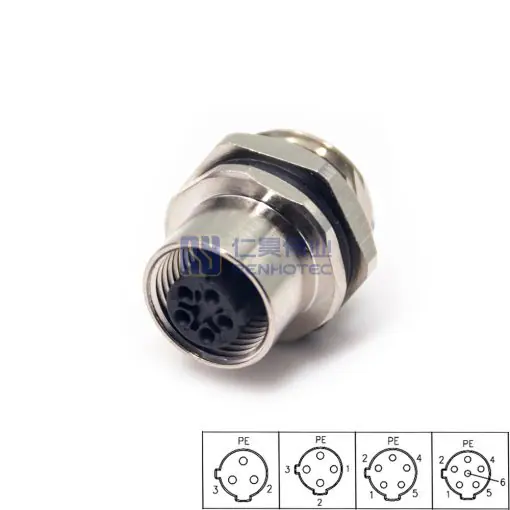

Front Mount M12 C-coded Bulkhead Connector

Categories: , Tag:

The C-coded M12 connector is available in a range of pins, including 3 pin, 4 pin, 5 pin, and 6 pin configurations.

M12 C-coded connectors are widely used in a variety of industries, including automotive, industrial automation, and medical equipment.

C-coded M12 bulkhead connector is used to connect a cable to a device or panel through a hole in the device or panel.

Get a Quote

M12 Connector is a flexible and highly customizable connector suitable for a variety of industrial applications. The design of this connector facilitates direct on-site connection with cables, eliminating the need for specific equipment or tools and simplifying field installation and maintenance.

What Is M12 C Coded Connector ? M12 C coded connector is calso called M12 C code or M12 C Coded , widely used for AC power supplier , standard 24V / 110V / 230V AC

Technical Parameters

  • Connector Type : Receptacle
  • Contact Type : Female Pin, Male Pin
  • Orientation : Straight
  • Key : C Code
  • Number Of Positions : 3 Pin, 4 Pin, 5 Pin, 6 Pin
  • Contact Termination : Solder
  • Mounting Type : Panel Mount
  • Shielding : Unshielded
  • Shell Material : Copper Alloy
  • Contact Material : Copper Alloy
  • Contact Finish : Gold Plating
  • Operating Temperature : -25°C ~ + 85°C
  • Ingress Protection : IP67

Name And Order Rules

M12 A 4 P M M S R xxx
Series : M12
Coding : A B C D X S T K L
Number of Positions : 2 3 4 5 6 8 12 17Pin
Connector Type : P–Plug S–Socket
Contact Type : M–Male F-Female
Contact Termination : M–Molding Type A–Assembly Type(Screw) B–Assembly (Solder) D–Solder Type P–Through Hole R–Angled through Hole
Shielding : S–Shielded N–Unshielded
Shell Feature : S–Straight (For Molding and Assembly) R–Right Angle (For Molding and Assembly) F–Front nut Fastening R–Rear nut Fastening H–Flange
Serial Number : If contact termination A or B, 001–Without Cable If contact termination D, P or R, 001–M12*0.5 002–M16*1.5
M12 A 4 P M M S R xxx
Series : M12
Coding : A B C D X S T K L
Number of Positions : 2 3 4 5 6 8 12 17Pin
Connector Type : P–Plug S–Socket
Contact Type : M–Male F-Female
Contact Termination : M–Molding Type A–Assembly Type(Screw) B–Assembly (Solder) D–Solder Type P–Through Hole R–Angled through Hole
Shielding : S–Shielded N–Unshielded
Shell Feature : S–Straight (For Molding and Assembly) R–Right Angle (For Molding and Assembly) F–Front nut Fastening R–Rear nut Fastening H–Flange
Serial Number : If contact termination A or B, 001–Without Cable If contact termination D, P or R, 001–M12*0.5 002–M16*1.5

Product Number and Dimension

Part Number Name
M12C-3SF-DN-R002 M12 Female 3 Pin C Code Front Panel Mount Bulkhead Solder Connector
M12C-4SF-DN-R002 M12 Female 4 Pin C Code Front Panel Mount Bulkhead Solder Connector
M12C-5SF-DN-R002 M12 Female 5 Pin C Code Front Panel Mount Bulkhead Solder Connector
M12C-6SF-DN-R002 M12 Female 6 Pin C Code Front Panel Mount Bulkhead Solder Connector
M12C-3SM-DN-R002 M12 Male 3 Pin B Code Front Panel Mount Bulkhead Solder Connector
M12C-4SM-DN-R002 M12 Male 4 Pin B Code Front Panel Mount Bulkhead Solder Connector
M12C-5SM-DN-R002 M12 Male 5 Pin B Code Front Panel Mount Bulkhead Solder Connector
M12C-6SM-DN-R002 M12 Male 6 Pin B Code Front Panel Mount Bulkhead Solder Connector
Part Number Name
M12C-3SF-DN-R002 M12 Female 3 Pin C Code Front Panel Mount Bulkhead Solder Connector
M12C-4SF-DN-R002 M12 Female 4 Pin C Code Front Panel Mount Bulkhead Solder Connector
M12C-5SF-DN-R002 M12 Female 5 Pin C Code Front Panel Mount Bulkhead Solder Connector
M12C-6SF-DN-R002 M12 Female 6 Pin C Code Front Panel Mount Bulkhead Solder Connector
M12C-3SM-DN-R002 M12 Male 3 Pin B Code Front Panel Mount Bulkhead Solder Connector
M12C-4SM-DN-R002 M12 Male 4 Pin B Code Front Panel Mount Bulkhead Solder Connector
M12C-5SM-DN-R002 M12 Male 5 Pin B Code Front Panel Mount Bulkhead Solder Connector
M12C-6SM-DN-R002 M12 Male 6 Pin B Code Front Panel Mount Bulkhead Solder Connector

Electrical Paramenters

Pins Rated Current Rated Voltage Conductor Size
A/C D/C AWG mm²
3 4A 250V 250V 22 0.34
4 4A 250V 250V 22 0.34
5 2A 60V 60V 22 0.34
6 2A 30V 30V 24 0.25
Pins Rated Current Rated Voltage Conductor Size
A/C D/C AWG mm²
3 4A 250V 250V 22 0.34
4 4A 250V 250V 22 0.34
5 2A 60V 60V 22 0.34
6 2A 30V 30V 24 0.25
