D38999 D38999/20WE6PN Square Flange Receptacle Olive Drab Cadmium

Part NO.: D38999/20WE6PN Categories: ,

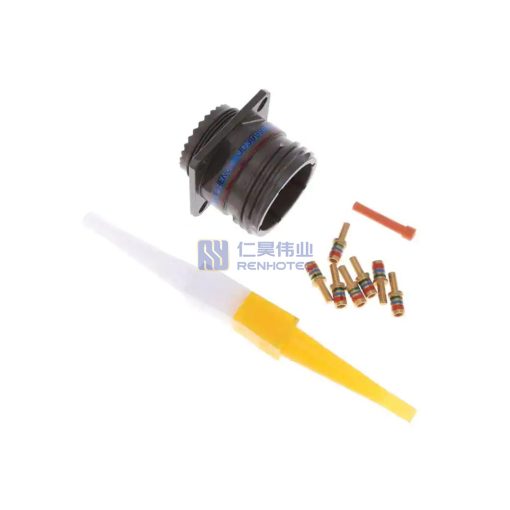

  • Standards The MIL-DTL-38999. Comes with crimping pins and contact tool.
  • Coupling Options. The D38999 connector series is available in bayonet, breech, and threaded options.
  • Ruggedization. MIL-DTL-38999 connectors are highly rugged and designed to be resistant to shock, vibration, harsh environments, and temperature extremes.
Get a Quote

MIL-DTL-D38999 Series III connectors are coupled by a quick screw Tri start thread, are scoop proof, and are best suited for normal mating and unmating applications and can be used in high temperature, moisture, wind, or vibration environments when used with the correct accessories.

Square Flange Receptacle (D38999/20)

Shell A (max) B (max) C (max) D Thread E F G H J d1 (min) d2 (min)
9 20.90 10.60 2.50 M12*1-6g 23.80 18.26 15.09 3.25 5.49 16.66 13.11
11 20.90 10.60 2.50 M15*1-6g 26.20 20.62 18.26 3.25 4.93 20.22 15.88
13 20.90 10.60 2.50 M18*1-6g 28.60 23.01 20.62 3.25 4.93 23.42 19.05
15 20.90 10.60 2.50 M22*1-6g 31.00 24.61 23.01 3.25 4.39 26.59 23.01
17 20.90 10.60 2.50 M25*1-6g 33.30 26.97 24.61 3.25 4.93 30.96 25.81
19 20.90 10.60 2.50 M28*1-6g 36.50 29.36 26.97 3.25 4.93 32.94 28.98
21 20.10 11.40 3.20 M31*1-6g 39.70 31.75 29.36 3.25 4.93 36.12 32.16
23 20.10 11.40 3.20 M34*1-6g 42.90 34.93 31.75 3.91 6.15 39.29 34.93
25 20.10 11.40 3.20 M37*1-6g 46.00 38.10 34.93 3.91 6.15 42.47 37.69

The 38999 specification defines families of shells that intermate to protect from vibration, shock, and moisture. MIL-DTL-38999 connectors attach cables to electronics boxes in various applications, including vehicles, ships, planes, and handheld equipment. They are also available for many non-Harsh Environment Connectors robust applications, such as the transportation and robust equipment markets.

How to Order



Product Type

Series

MIL-DTL-38999 Series Ⅲ
Connector Type

Socket
Number of Positions

6 Pin
Shell Size

Contact Arrangements

17-6
Fastening Type

Threaded
Mounting Type

Panel Mount
Mounting Feature

4 Hole Flange
Shell Material

Aluminum Alloy
Shell Finish

Olive Drab Cadmium
Insulation Material

Thermoplastics
Color

Olive Green
Shielding

Shield
Series

MIL-DTL-38999 Series Ⅲ

 Connector Type

Socket
Number of Positions

6 Pin

 Shell Size

Contact Arrangements

17-6

 Fastening Type

Threaded
Mounting Type

Panel Mount

 Mounting Feature

4 Hole Flange
Shell Material

Aluminum Alloy

 Shell Finish

Olive Drab Cadmium
Insulation Material

Thermoplastics

 Color

Olive Green
Shielding

Shield

Contact Type

Contact Type

Contact Termination

Crimp
Contact Material

Copper Alloy
Contact Finish

Gold Plating
Contact Type

Contact Termination

Crimp
Contact Material

Copper Alloy

 Contact Finish

Gold Plating

Basic Attributes

Key

N
Key

N

Environmental Characteristics

Ingress Protection

IP67
Operating Temperature

-65°C ~ + 175°C
Ingress Protection

IP67

 Operating Temperature

-65°C ~ + 175°C

Electrical Characteristics

Rated Current

23A
Rated Current

23A
Series

MIL-DTL-38999 Series Ⅲ
Connector Type

Socket
Contact Type

Number of Positions

6 Pin
Shell Size

Contact Arrangements

17-6
Fastening Type

Threaded
Mounting Type

Panel Mount
Mounting Feature

4 Hole Flange
Contact Termination

Crimp
Key

N
Shell Material

Aluminum Alloy
Shell Finish

Olive Drab Cadmium
Insulation Material

Thermoplastics
Contact Material

Copper Alloy
Contact Finish

Gold Plating
Color

Olive Green
Ingress Protection

IP67
Shielding

Shield
Rated Current

23A
Operating Temperature

-65°C ~ + 175°C
