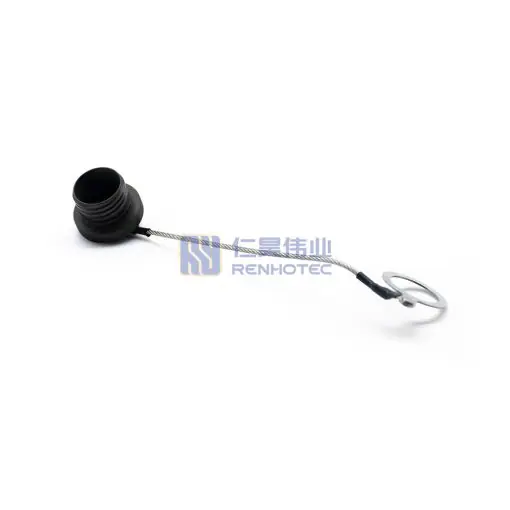

D38999 Metal Dust Cover Waterproof for Plug Receptacle Connector

Category:
  • Standards The MIL-DTL-38999.
  • Coupling Options. The D38999 connector series is available in bayonet, breech, and threaded options.
  • Ruggedization. MIL-DTL-38999 connectors are highly rugged and designed to be resistant to shock, vibration, harsh environments, and temperature extremes.
Get a Quote

Protect D38999 connectors by providing strain relief from the cable or wire bundle. Strain relief backshells are available in straight or 90° configurations. The self-locking option is recommended for high-vibration applications. Strain relief backshells should be used in clean, dry applications.

Connector Dimension

Shell 9 11 13 15 17 19 21 23 25
A Max 22.86 25.4 30.48 33.02 36.83 39.37 43.18 44.45 48.26
B Min 12.92 17.78 19.27 22.6 25.62 28.95 31.97 34.03 38.32
C Max 22.86 27.86 30.48 31.75 36.83 38.1 41.91 44.45 48.26
D Min 17.78 21.33 25.62 28.95 31.97 35.3 38.32 41.65 44.45
L Max 127 127 127 127 127 127 127 127 127

How to Order

D38999/ 32 W 13 N
Main Series Plating Shell Chain type
32 = Plug Dust Cap W = Olive Drab Cadmium 09, 11, 13, 15, 17, 19, 21, 23, 25 N = Stainless Steel rope with Ring
33 = Receptacle Dust Cap F = Electrolyses Nickel Plating R = Stainless Steel rope with Hole
J = Olive Drab Cadmium (Composite)
M = Electrolyses Nickel Plating (Composite)
J = Olive Drab Cadmium (Composite Shell)
M = Electrolyses Nickel Plating (Composite Shell)



Product Type

Series

MIL-DTL-38999 Series Ⅰ, MIL-DTL-38999 Series Ⅱ, MIL-DTL-38999 Series Ⅲ
Orientation

Straight
Fastening Type

Threaded
Shell Material

Aluminum Alloy
Shell Finish

Olive Drab Cadmium
Color

Olive Green
Series

MIL-DTL-38999 Series Ⅰ, MIL-DTL-38999 Series Ⅱ, MIL-DTL-38999 Series Ⅲ

 Orientation

Straight
Fastening Type

Threaded

 Shell Material

Aluminum Alloy
Shell Finish

Olive Drab Cadmium

 Color

Olive Green

Environmental Characteristics

Ingress Protection

IP67
Operating Temperature

-65°C ~ + 175°C
Ingress Protection

IP67

 Operating Temperature

-65°C ~ + 175°C
Series

MIL-DTL-38999 Series Ⅰ, MIL-DTL-38999 Series Ⅱ, MIL-DTL-38999 Series Ⅲ
Orientation

Straight
Fastening Type

Threaded
Shell Material

Aluminum Alloy
Shell Finish

Olive Drab Cadmium
Color

Olive Green
Ingress Protection

IP67
Operating Temperature

-65°C ~ + 175°C
