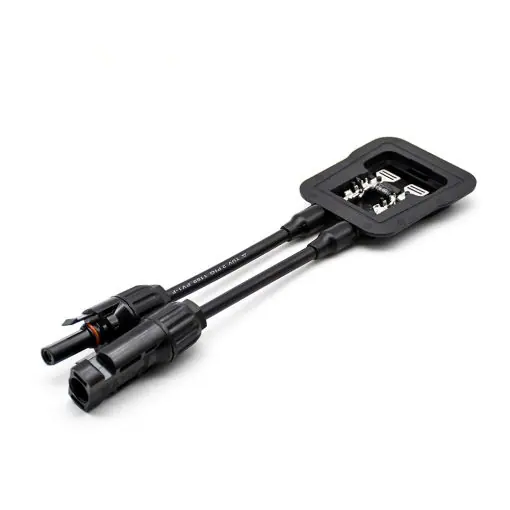

1 Diode Solar Panel Junction Box Cover Solar Combiner Junction Box

Categories: ,

1 Diode Solar Panel Junction Box Cover Solar Combiner Junction Box

Get a Quote

The photovoltaic junction box is a connecting device. Mainly used in the field of solar energy. Its main function is to connect and protect solar photovoltaic modules. To connect the electricity generated by solar cells with external lines. And to conduct current generated by photovoltaic modules.

Basic Attributes

Contact Material

Copper,Tin Planted
Flame Class

UL94 – V0
Insulation Material

PPO
Number of Diode

1
Safety Class

Class Ⅱ
Termination

Waterproofing Structure

Seal by Sealing Ring / Potting Sealant

Performance

Power

10-300W
Ingress Protection

IP67, IP68
Rated Current

5-18A
Rated Voltage

1000V / 1500V
Operating Temperature

-40°C ~ + 85°C
Wire Gauge

2.5-4mm²
Contact Material

Copper,Tin Planted
Flame Class

UL94 – V0
Insulation Material

PPO
Number of Diode

1
Power

10-300W
Ingress Protection

IP67, IP68
Rated Current

5-18A
Rated Voltage

1000V / 1500V
Safety Class

Class Ⅱ
Operating Temperature

-40°C ~ + 85°C
Termination

Waterproofing Structure

Seal by Sealing Ring / Potting Sealant
Wire Gauge

2.5-4mm²
