5 Pin DIN Connectors: What Are They, and Why Do They Matter?
The 5 Pin DIN connector is an electrical connector, standardized originally by the Deutsches Institut für Normung (DIN) and now largely governed by the international standard IEC 60130-9. Characterized by its circular shape and array of five pins within a protective circular skirt, this connector offers a robust and reliable way to transmit multiple signals simultaneously.
Its enduring significance lies in its historical role in audio and data transmission, and its continued use in niche, high-reliability industrial settings. For engineers and designers, understanding the specific characteristics of the 5 Pin DIN is the first step toward successful integration, guaranteeing performance and system integrity in demanding applications.
Classic and Modern Applications of the 5 Pin DIN
While many users immediately associate this connector with audio or older computer equipment, its versatility has secured its place in several key sectors:
- Musical Instrument Digital Interface (MIDI): The most famous application is its role as the standard connector for MIDI devices. While only pins 2, 4, and 5 are typically used for MIDI data, the 5-pin configuration was chosen for its ubiquity in the 1980s and for potential future expansion.
- Audio Equipment: Historically used on European-manufactured Hi-Fi equipment to connect components like tape decks and pre-amplifiers, often utilizing the 5 Pin DIN 180° configuration.
- Industrial Control & Automation: In robust industrial environments, the secure, keyed coupling and mechanical stability of circular connectors make them ideal for low-voltage signal transmission for sensors, control panels, and specialized machinery.
Key takeaway: The choice of a 5 Pin DIN connector must be driven by its specific application, as an audio connector has different requirements than an industrial signal connector.
The Critical Selection Criteria for 5 Pin DIN Connectors
Selecting the correct 5 Pin DIN connector is a structured process that moves beyond merely counting the pins. The key is aligning the connector’s technical specifications with the operational demands of your application.
Matching Electrical Requirements: Voltage, Current, and Signal Type
The integrity of your connection hinges on the connector’s ability to handle the required power and signal characteristics.
| Parameter | Why It Matters | Typical Ratings (Example) |
| Rated Voltage | Must exceed the maximum operating voltage to prevent arcing and failure. | 100V (Mouser Electronics Spec Sheet) |
| Rated Current | Must exceed the maximum current draw on any single pin. Crucial for power applications. | 4A (Mouser Electronics Spec Sheet) |
| Contact Resistance | A low resistance is critical for high-fidelity audio or high-speed data to minimize signal loss. |
≤10mΩ(Low is better)
|
| Signal Type | Determine if the pins will carry analog (audio, low-level sensor), digital (MIDI, data), or DC power. | Digital (MIDI) uses specific pins; analog requires low crosstalk. |
Actionable Tip: Always select a 5 Pin DIN connector with current and voltage ratings that provide a 15-20% margin above your maximum operational requirements to account for temperature variation and long-term degradation.
Evaluating Mechanical and Environmental Factors: IP Rating and Housing Material
The operating environment dictates the mechanical robustness required. An office-use MIDI cable is vastly different from a connector deployed in a factory setting.
- Ingress Protection (IP) Rating: This is non-negotiable for harsh environments. IP ratings (e.g., IP67) define the connector’s resistance to dust and moisture.
-
- Need a washdown-capable solution? Look for IP65 and above.
- Need full immersion protection? Look for IP68.
Choosing the appropriate DIN connector IP rating prevents catastrophic failures and signal degradation.
- Housing and Contact Materials:
-
- Plastic Housings: Lightweight, cost-effective, but less durable. Suitable for consumer electronics.
- Metal Shells (Brass/Zinc Alloy): Provide superior durability, electromagnetic interference (EMI) shielding, and chemical resistance. Essential for industrial applications.
- Contact Plating: Gold plating (higher cost) offers better conductivity and corrosion resistance than tin or silver, making it ideal for low-level signal integrity.
Structure and Mounting Method: Gender, Shielding, and Termination
The physical integration into the device or cable assembly involves three main structural decisions:

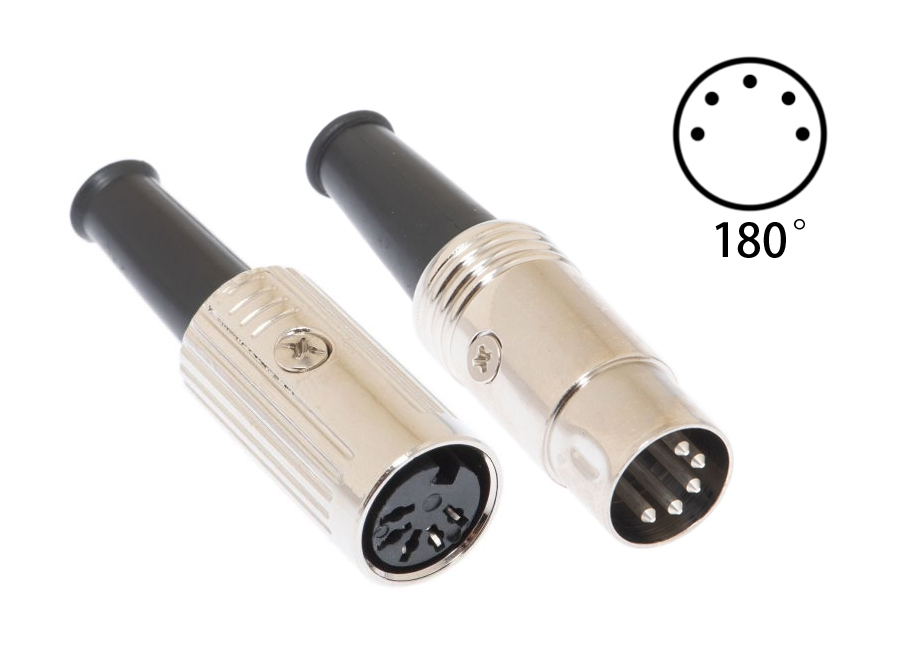

- Gender and Orientation: Ensure you correctly specify the male plug or the female receptacle. For cable assemblies, you’ll need two plugs.
- Shielding: For noisier environments or high-fidelity signals, a connector with a fully grounded metal shell provides essential shielding against EMI/RFI, a key factor in industrial signal applications.
- Termination Style:
- Solder Cup: Most common for low-volume or repair work; pins accept individual wire soldering.
- PCB Mount: Designed for direct mounting onto a printed circuit board.
Avoiding Common Mistakes: Distinguishing 5 Pin DIN Versions
One of the most frequent errors in selecting a 5 Pin DIN connector is confusing its various pin arrangements. While all are technically 5-pin, the configuration angle determines compatibility and mating.

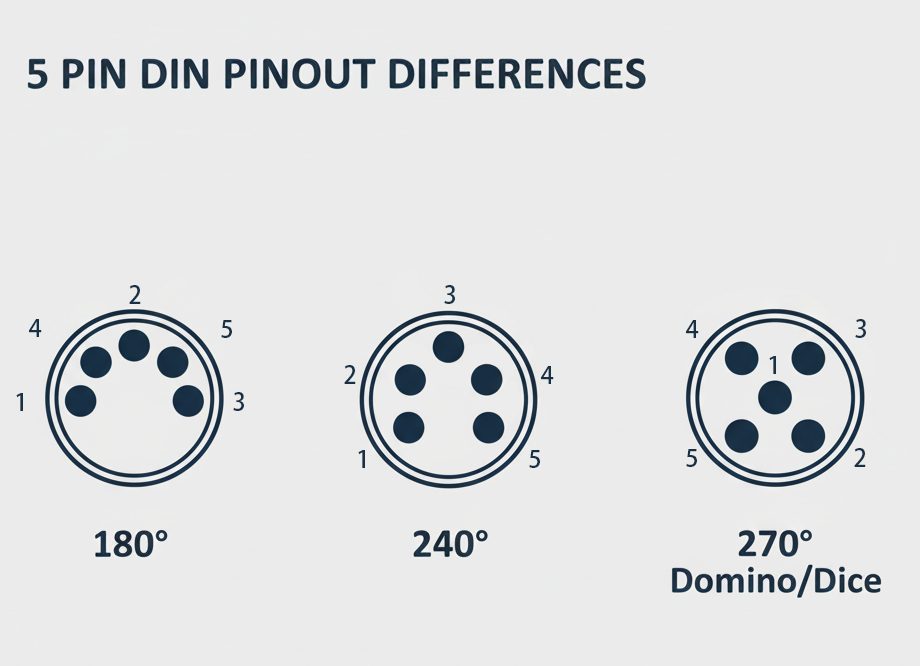

The Critical Pinout Differences: 180°, 240°, and 270°
There are three common arrangements for 5-pin connectors, named after the angle of the arc swept by the pins:
| Pinout Type | Arc Angle | Shape Description | Common Application | Compatibility Note |
| 5/180° | 180 degrees | Half-circle (U-shape) | Audio, MIDI (most common) | A 3-pin connector will fit into a 5/180° socket, engaging the central three pins. |
| 5/240° | 240 degrees | U-shape with wider spread | Older Peripherals, Specific Control | Not compatible with 5/180° or 5/270° without modification. |
| 5/270° | 270 degrees | Looks like the ‘5’ on a die | Some older computer peripherals | Sometimes referred to as domino or 360° pinout by older standards. |
Factual Check: The 5 Pin DIN 180° is standardized under DIN 41524 / IEC/DIN EN 60130-9. Always verify the pinout geometry against your device’s receptacle before purchasing to ensure proper mechanical and electrical mating.
Compatibility and Pin Numbering
The pin numbering standard for a 5 Pin DIN plug (when viewed from the mating face, upward) is typically 1-4-2-5-3 from left to right. The common mistake is assuming that any 5-pin plug will mate with any 5-pin socket—which is true for the number of pins, but not the physical arrangement. Mismatched pinouts will physically prevent mating or, in rare cases, cause pin damage.
Implementation and Verification: Final Selection Steps and Checklist
The final stage in choosing the ideal 5 Pin DIN connector is implementing a systematic verification process to eliminate all potential risks.
Final 3-Step Verification Checklist
1. Application Environment Confirmation: Re-confirm the worst-case operating conditions (temperature range, humidity, vibration, presence of contaminants). If the environment is harsh, default to a metal-housed, high IP rating connector.
2. Key Parameter Verification: Cross-check the connector’s Rated Current and Rated Voltage against your system’s maximum requirements, ensuring the required 15-20% safety margin. Do not solely rely on the “5 Pin DIN” label; check the datasheet.
3. Regulatory and Standard Compliance: Ensure the connector is compliant with relevant industry standards (e.g., IEC 60130-9) and regional regulations (e.g., RoHS, REACH) required for your target market.
FAQ (Frequently Asked Questions)
- Q: Can a 5 Pin DIN connector transmit high power?
- A: Generally no. Standard 5 Pin DIN connectors are designed for low-voltage signal transmission with typical current ratings around 4A, making them unsuitable for high-power (HP) applications.
- Q: Why does MIDI still use the 5 Pin DIN standard?
- A: MIDI adopted the 5 Pin DIN 180° standard because it was widely available, robust, and cost-effective in the early 1980s. Although only three pins are used, the convention remains due to massive backward compatibility requirements.
- Q: Will a 3-pin DIN plug fit into a 5-pin DIN socket?
- A: Yes, a 3-pin DIN plug will mechanically fit into the common 5 Pin DIN 180° socket, engaging the three central pins, but it will not mate with the 5/240° or 5/270° sockets.
